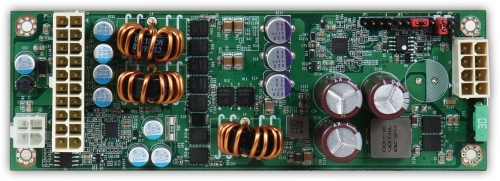

GADIWA-B9180
4180 W DC/DC 6~36V input/ATX output Board type Converter
Features :
- Compact and user-friendly design for installation and maintenance
- 6~36V/Wide-input, plug into the ATX connector with board output
- Small size for 1U or higher system to save space
- Suitable for Car PC, Steamer, Truck, Boat and Adapter
- Socket type fuse protection
- -40°C to 75°C wide temperature support
Description
GADIWA-B9180 is a DC to DC wide voltage input board type converter. It normally support continuous 180 Watts and peak 200 Watts.
GADIWA-B9180 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance.
Specification
|
Input Voltage |
6V~36V |
|
Output |
180Watts / 200 Watts Peak |
|
Efficiency |
> 90% @12V input, 180W output, 25°C |
|
MTBF |
420,000hrs @ 55°C |
|
EMI & Safety Approval |
CE, FCC |
|
Input Connector |
6V~36V 8 pin |
|
Output Connector |
ATX 20 Pin + 12V 4 Pin |
|
Dimension (WxDxH) |
150 x 51 x 25 mm |
|
Operation Temperature |
-40°C to 75°C |
|
Ordering Guide |
|
|
GADIWA-B9180 180W DC/DC 6V~36V/wide-input.ATX/output.Wide Temperature.Board Type Converter |
|
