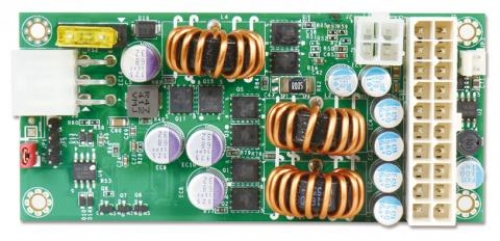

GADIWA-B9120

GADIWA-B9120

120W DC/DC 9V~29V Input/ATX output, Board Type Converter

Features :

Description

GADIWA-B9120 is a DC to DC wide voltage input board type converter. It normally support continuous 120 Watts and peak 160 Watts.

GADIWA-B9120 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance.

Specification

Input Voltage
9V~29V
Output
120Watts / 160 Watts Peak
Efficiency
>90% @ 12V input, 120W output
MTBF
410,386hrs @ 55°C
EMI & Safety Approval
CE, FCC
Input Connector
9V~29V 6 pin (P/N: B6902060)
Output Connector
ATX 20 pin + 12V 4 pin
Dimension (WxDxH)
100 x 45 x 22.5 mm
Operation Temperature
-40°C ~ 75°C
Ordering Guide
GADIWA-B9120
120W DC/DC 9V~29V/wide-input.ATX/output.Wide Temperature.Board Type Converter
