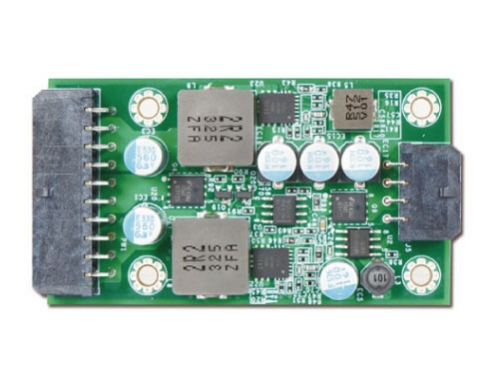

GADIWA-B1120
120W DC/DC 12V Input/ATX output, Board Type Converter
Features :
- 12V DC/input, plug into the ATX connector with board output
- Compact and user-friendly design for installation and maintenance
- Fan-less design for mission-critical application
- Small size for 1U or higher system to save space
- -40°C to 75°C wide temperature support
Description
GADIWA-B1120 is a DC to DC 12V input board type converter. It normally support continuous 120 Watts and peak 160 Watts.
GADIWA-B1120 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line;therefore, it can provide high quality and better performance.
Specification
|
Input Voltage |
Voltage 12V (+5%/-4%) |
|
Output |
120Watts/ 160Watts peak |
|
Efficiency |
>90% @ 12V |
|
MTBF |
1,226,530hrs @40°C, 353,098hrs @75°C |
|
EMI & Safety Approval |
CE, FCC |
|
Input Connector |
Mini-Fit 8 pin (P/N: B6902040) |
|
Output Connector |
Mini-Fit 20 pin (P/N: B6902071) |
|
Dimension (WxDxH) |
38 x 68 x 12.5 mm |
|
Operation Temperature |
-40°C ~ 75°C |
|
Ordering Guide |
|
|
GADIWA-B1120 120W DC/DC 12V/input.ATX/output.Wide Temperature.Board Type Converter |
|
