Orion-A2501

ORION-A2501

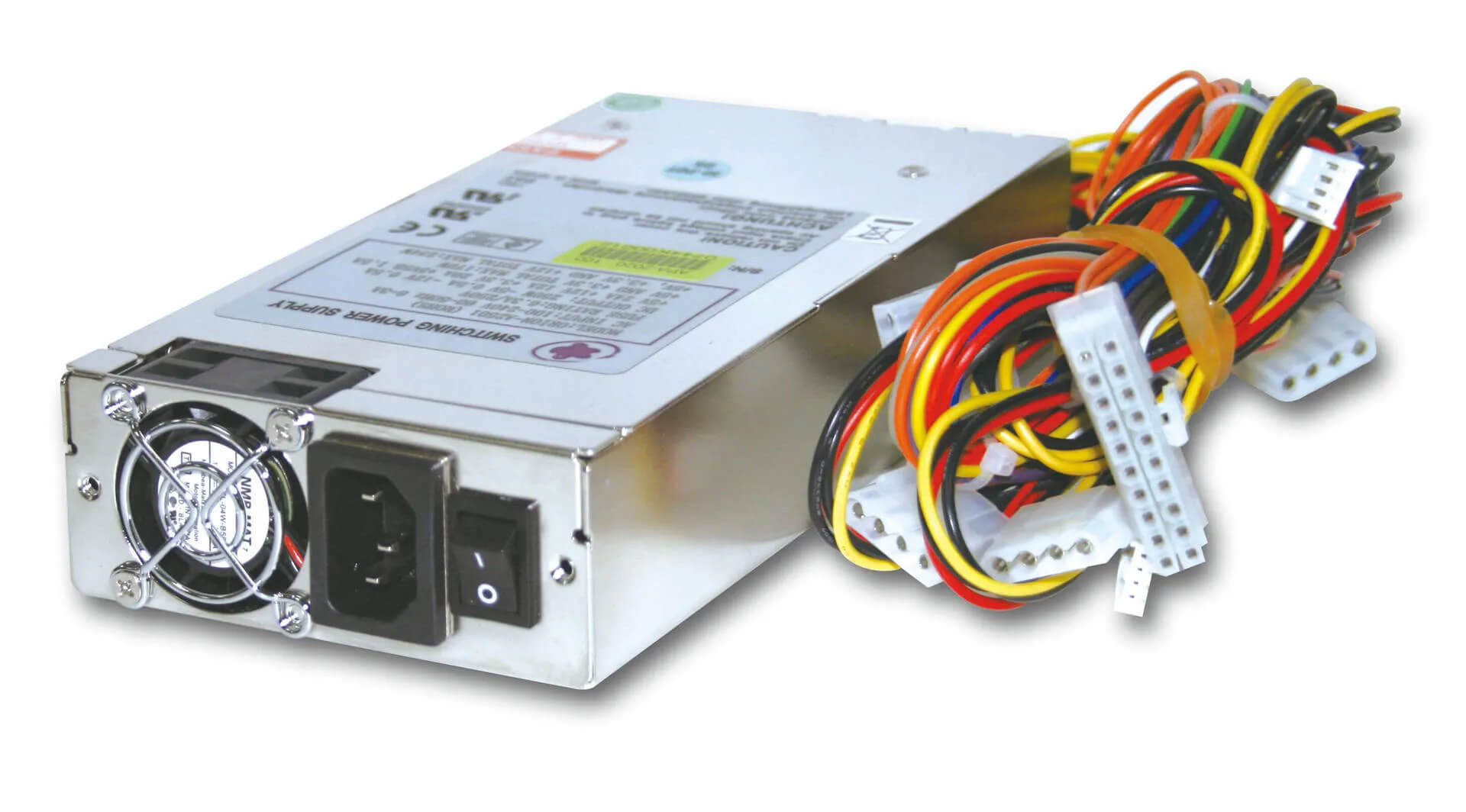

250W 1U ATX power supply with active PFC

Features :

Specification

Input Voltage
90V ~ 264V AC, full range
Input Frequency
47 ~ 63 Hz
Input Current
6A@115V, 3A@230V
Efficiency
> 65%
Holdup Time
16 ms at full load
Over Voltage Protection
+5V: 5.4 ~ 6.5V; +3.3V: 3.9 ~ 4.47V; +12V: 13.6V ~ 15.6V
Over Power/ Load Protection
Output power over 110% ~ 160%
MTBF
>105,405 hrs
EMI & Safety Approval
UL, cUL, TUV, CE, FCC,CCC
Temperature/ Humidity
Operating: 5°C ~ 40°C, 20% ~ 90%RH
Storage: -20°C ~ 60°C, 5% ~ 95%RH
Dimension (WxDxH)
100 x 190 x 40.5 mm; 3.93” x 7.48” x 1.59”
Ordering Guide
ORION-A2501P
250W 1U ATX power supply with active PFC
