ORION-A1801P

ORION-A1801P

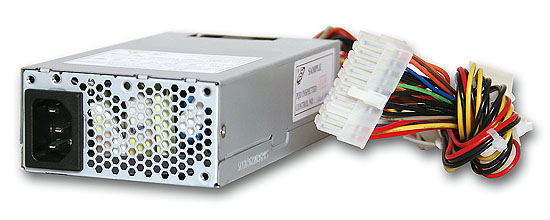

180W Flex form factor power supply with active PFC

Features :

Specification

Input Voltage
90V ~ 264V AC, full range
Input Frequency
47 ~ 63 Hz
Input Current
6A@115V, 3A@230V
Efficiency
> 75%
Holdup Time
16 ms at full load
Over Voltage Protection
+5V: 5.7 ~ 6.5V; +3.3V: 3.9 ~ 4.3V; +12V: 13.6 ~ 15V
Over Power/ Load Protection
Output power over 110% ~ 150%
MTBF
>130,000 hrs
EMI & Safety Approval
UL
Temperature/ Humidity
Operating: 0 ~ 40°C, 20 ~ 90%RH
Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension (WxDxH)
81.5 x 150 x 40.5 mm; 3.2” x 5.9” x 1.6”
Ordering Guide
ORION-A1801P
180W PSU. Active PFC. Low Noise
