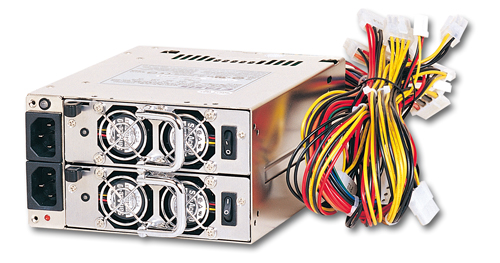

ORION-D4602P
460W+460W mini-redundant with active PFC power supply
Features :
- Mini-redundant power supply suitable for 2U/4U and larger chassis
- Active PFC, full-range input
- Two independent AC inputs
Specification
|
Input Voltage |
90V ~ 264V AC, full range |
|
Input Frequency |
47 ~ 63 Hz |
|
Input Current |
9A@115V, 5A@230V |
|
Efficiency |
> 65% |
|
Holdup Time |
20 ms. at full load |
|
Over Voltage Protection |
+5V: 5.6 ~ 6.5V; +3.3V: 3.8 ~ 4.3V; +12V: 13.6 ~ 15.6V |
|
Over Power/
Load Protection |
Output power over 110% ~ 130% on +3.3V/+5V; 120% ~ 150% on +12V |
|
MTBF |
100,000 hrs |
|
EMI & Safety Approval |
UL, TUV |
|
Temperature/
Humidity |
Operating: 0 ~ 40°C, 20% ~ 90%RH Storage: -40 ~ 70°C, 5% ~ 95%RH |
|
Dimension (WxDxH) |
150 x 190 x 85 mm; 5.9” x 7.5” x 3.3” |
|
Ordering Guide |
|
|
ORION-D4602P 460W+460W mini-redundant power supply with active PFC (PS/2 bracket is available) |
|
