ORION-D4601P

ORION-D4601P

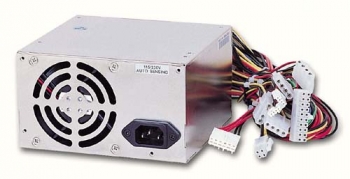

460W PS/2 ATX power supply with active PFC

Features :

Specification

Input Voltage
100V~240V AC
Input Frequency
47 ~ 63 Hz
Input Current
9A@115V, 5A@230V
Efficiency
> 60%
Holdup Time
16 ms. at full load
Over Voltage Protection
+5V: 5.7 ~ 7.0V; +3.3V: 3.9 ~ 4.5V; +12V: 13.6 ~ 16.0V
Over Power/ Load Protection
Output power over 110% ~ 150%
MTBF
100,000 hrs
EMI & Safety Approval
UL, TUV
Temperature/ Humidity
Operating: 0 ~ 40°C, 20% ~ 90%RH
Storage: -20 ~ 60°C, 5% ~ 95%RH
Dimension (WxDxH)
150 x 140 x 86 mm; 5.9” x 5.5” x 3.4”
Ordering Guide
ORION-D4601P
460W PS/2 ATX power supply with active PFC
