ORION-D3502P

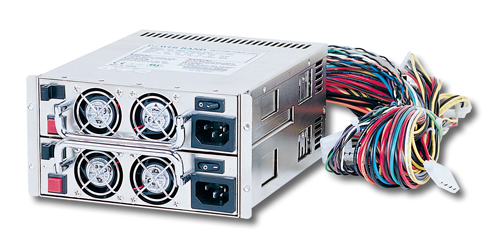

350W+350W mini-redundant with active PFC power supply
Features :
- Mini-redundant power supply suitable for 2U/4U and larger chassis
- Active PFC, full-range input
- Two independent AC inputs
Specification
|
Input Voltage |
100V~240V AC |
|
Input Frequency |
47 ~ 63 Hz |
|
Input Current |
6A@115V, 3A@230V |
|
Efficiency |
> 80% |
|
Holdup Time |
16 ms. at full load |
|
Over Voltage Protection |
3.3@4.5V; 5V@6.5V; 12V@14.5V |
|
MTBF |
> 100,000 hrs |
|
EMI & Safety Approval |
UL, cUL, TUV, CE, FCC |
|
Temperature/
Humidity |
Operating: 0 ~ 40°C, 20% ~ 90%RH Storage: -20 ~ 60°C, 5% ~ 95%RH |
|
Dimension (WxDxH) |
150 x 190 x 84 mm; 5.9” x 7.2 x 3.4” |
|
Ordering Guide |
|
|
ORION-D3502P 350W+350W mini-redundant power supply with active PFC (PS/2 bracket is available) |
|
