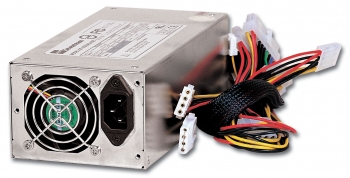

ORION-B3501P

ORION-B3501P

350W 2U ATX power supply with active PFC

Features :

Specification

Input Voltage
90V ~ 264V AC, full range
Input Frequency
47 ~ 63 Hz
Input Current
10A@115V, 6A@230V
Efficiency
> 67%
Holdup Time
16 ms at full load
Over Voltage Protection
+5V: 6.5 ~ 7.0V; +3.3V: 4.5V; +12V: 14.5V
Over Power/ Load Protection
Output power over 110% ~ 150%
MTBF
100,000 hrs
EMI & Safety Approval
UL, CB, TUV, CE, FCC
Temperature/ Humidity
Operating: 0 ~ 40°C, 20 ~ 90%RH
Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension (WxDxH)
200 x 100 x 70 mm; 7.87” x 3.94” x 2.8”
Ordering Guide
ORION-B3501P
350W 2U ATX power supply with active PFC
