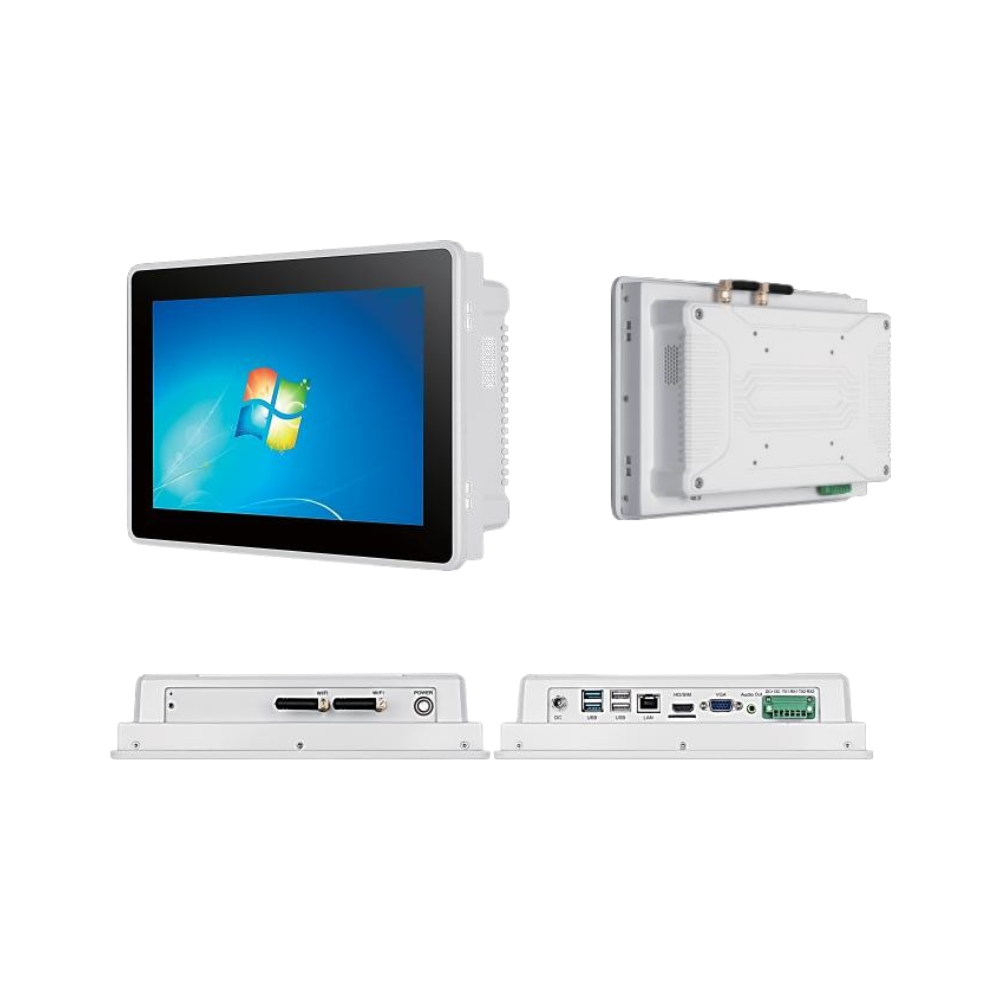

10.1 Medical Grade Panel PC
PW-PPCMED-101-J1900
Features :
- Designed to comply IEC60601-1 specifications
- Upgraded anti-interference internal layout
- IP65 protected flat front panel
- Anti-vibration, anti-radiation, anti-static layout structure design
- Self-developed industrial grade motherboard
- Intel Celeron J1900 quad-core 2.0GHz processor
- CE compliance for the medical industry
Specifications
| Model #. | PW-PPCMED-101-J1900 |
| Processor | Intel Celeron J1900 quad-core 2.0GHz CPU |
| GPU | Intel HD Graphics embedded |
| Memory | 4GB (Supports up to 8GB) |
| Storage | 64GB SSD (Optional: 256GB/512GB/1TB) |
| OS | WIN7/10(Pro/IoT), Ubuntu/Centos/Red-hat/Debian |

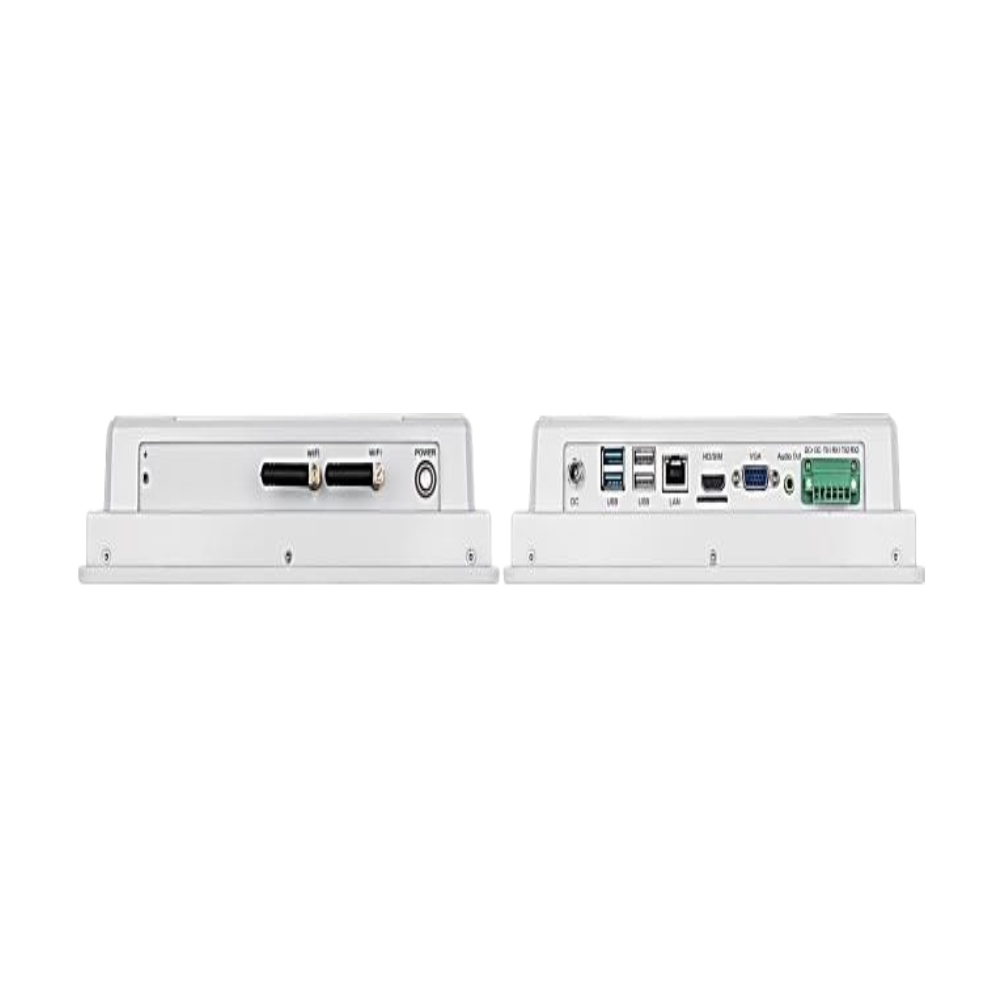

| I/O Interfaces | 1xPowerSW, 1xThreaded DC interface (5.5*2.5mm), 1x6P Phoenix Terminal (Power supply/RS232*1/RS485*1), 2xUSB3.0, 2xUSB2.0, 1xGb LAN, 1xSIM(3G/4G module), 1xHDMI (Supporting HDMI data output, Up to 4K), 1xVGA, 1xAudio Out, Support audio output 2x(8Ω2W) on speaker, 2xWi-Fi antenna, 1xGND |

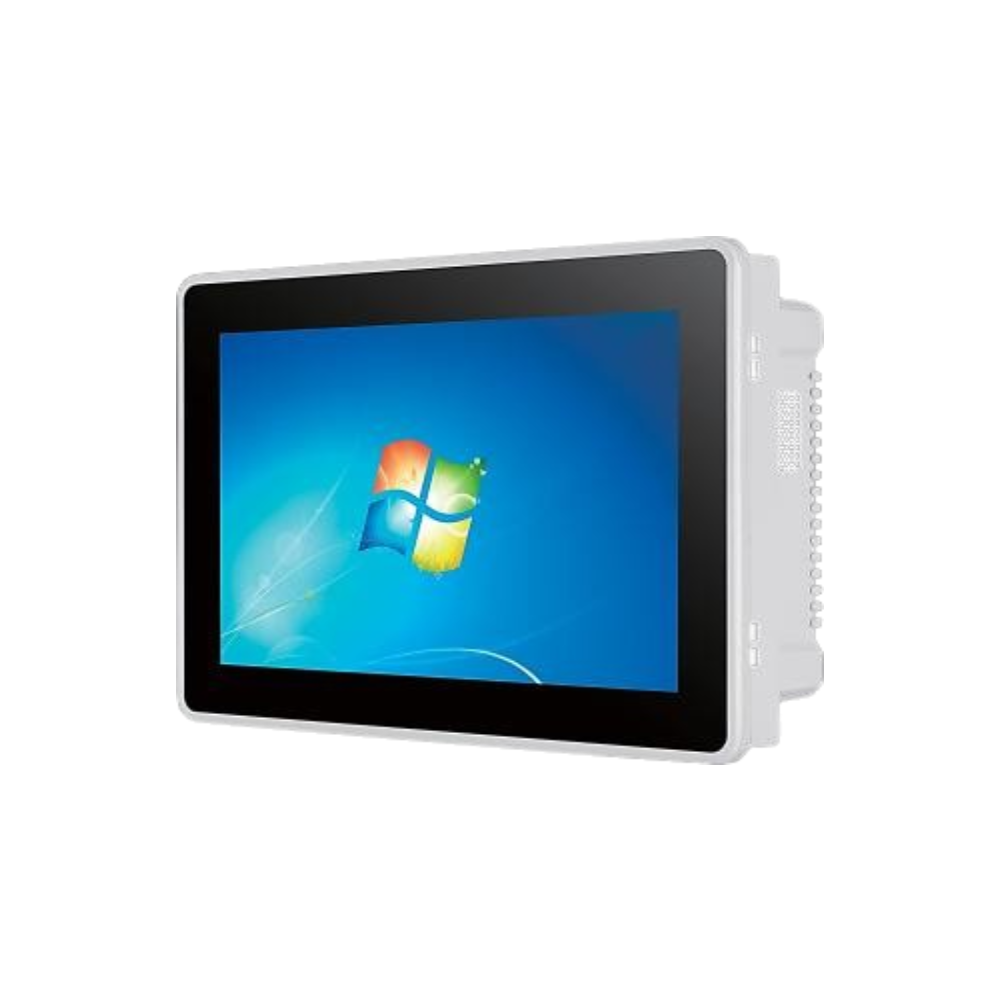

| Display screen | 10.1″ TFT LCD screen with LED backlight |
| Resolution | 1280*800 (16:10 aspect ratio) |
| Brightness | 300cd/m2 (Optional 500 cd/m2) |
| Contrast | 1000:1 (Optional 1200:1) |
| Maximum color | 16M |
| Touch | PCAP Touchscreen |
| Response time | <5ms |
| Bluetooth & Wifi | BT4.0 & Dual Band 2.4GHz+5GHz |
| Panel cabinet | Aluminum alloy – Medical White |
| Power input | 12V DC external AC~DC power supply |
| Overall dimensions | W267.5x H186.2x D61mm |

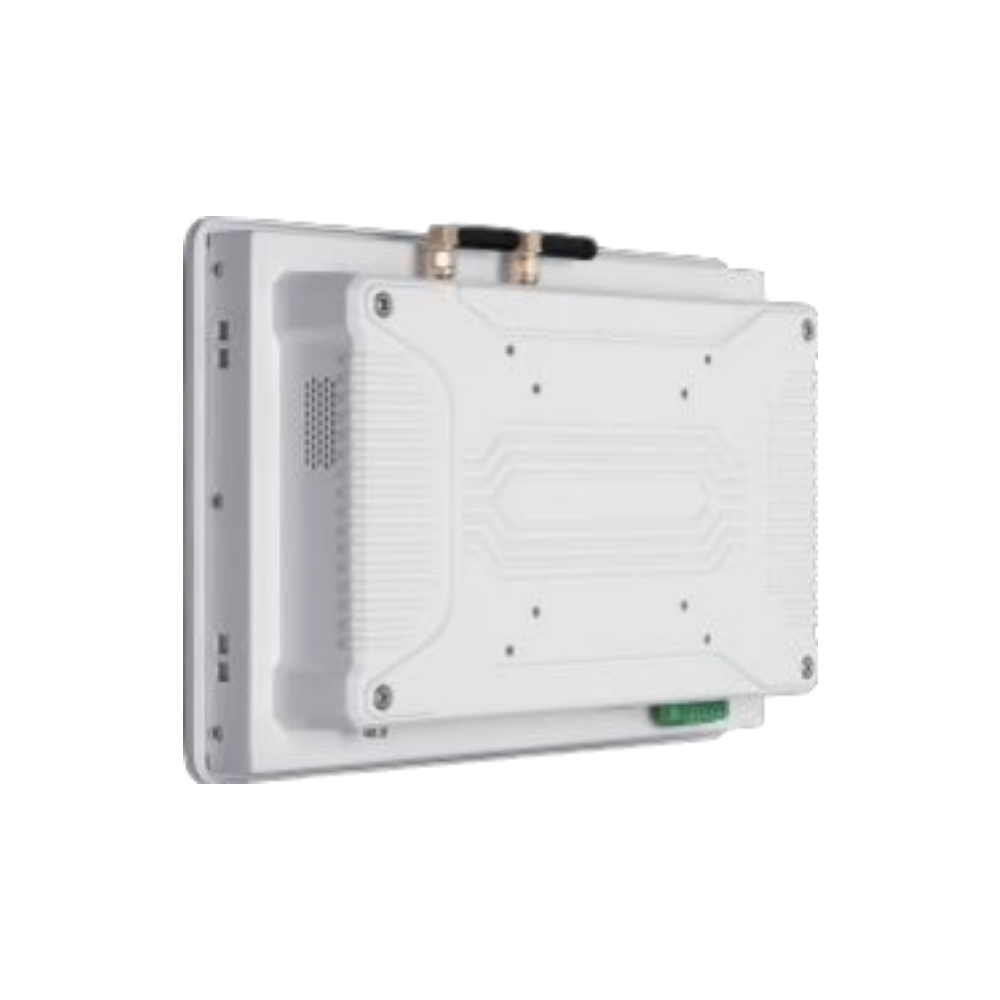

| Mounting | Supports Wall mount, Desktop Mount, Panel Mount |
| Power Input / Adapter | DC 12V-36V input, 24V/2.5A External AC~DC adapter |
| Weight | 4kg approx. |
| Operating temperature | Designed to comply -20~70°C (Electronic disk) |
| Storage temperature | Designed to comply -30~80°C |
| Correlated humidity | 10~95%@40°C (non-condensing) |
| Front panel protection | IP65 standard |
| Warranty | 12 months standard warranty |
