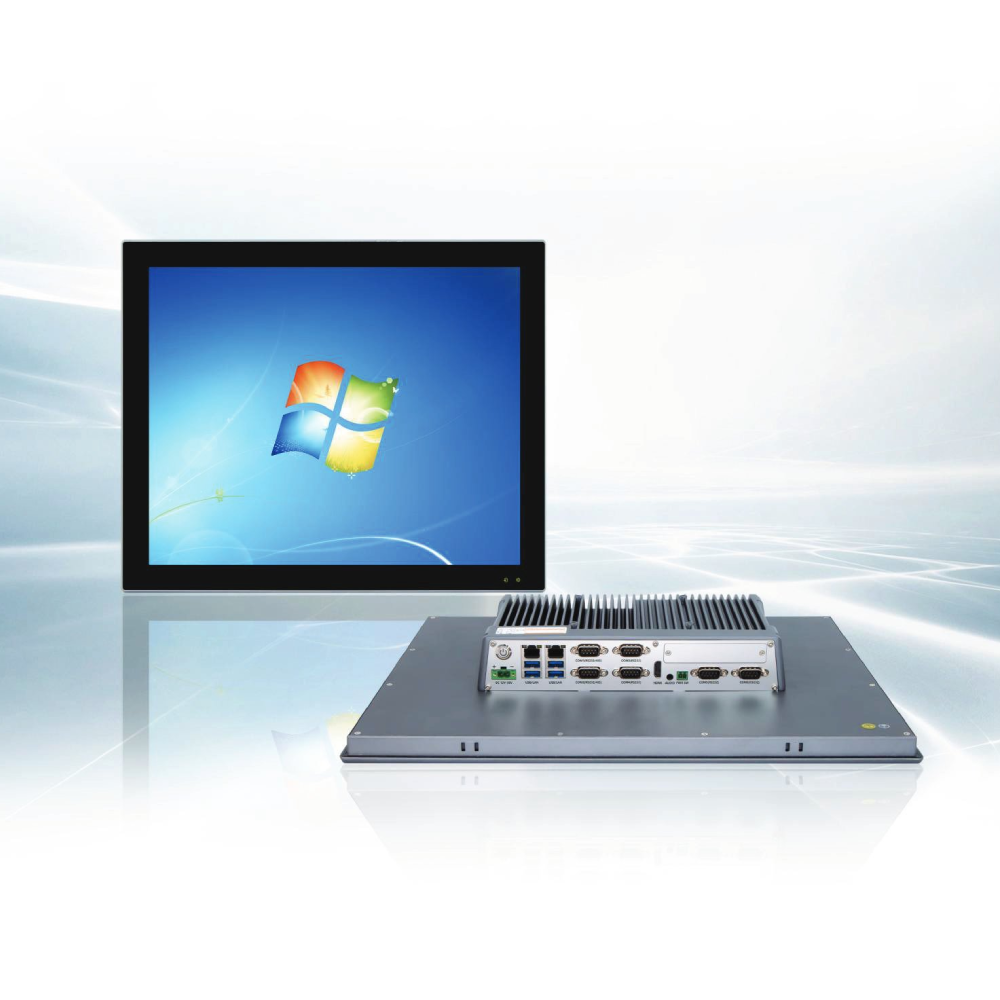

PW-PPC-QY-P8190
Features :
- Support for windows/linux operating systems
- On-board J1900/J6412/4/6/7/8/10th generation Core i3/i5/i7
- Support 4G/5G Internet access function to meet communication requirements (separate module required)
- Support Wifi, Bluetooth dual communication module (need to add a separate module)
- DC: 12V-36V power input
Specification
| System Parameters | ||
| CPU | J1900/J6412/ 4/6/7/8/10 Corei3/i5/i7 | |
| RAM | DDR3/DDR4 | |
| OS | WIN7/8/10/11/LINUX | |
| Storage | 1*MSATA/1*SATA | |

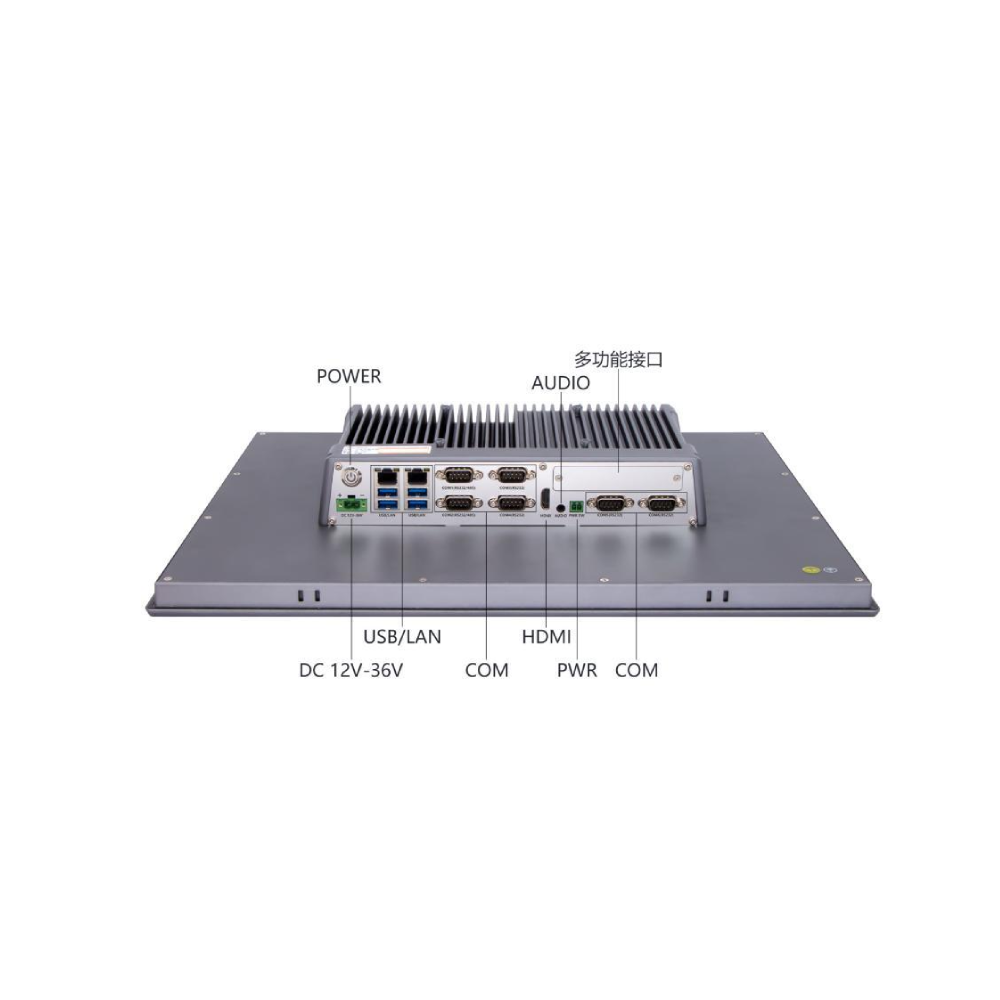

| I/O interface | ||
| Audio | RTLALC662 ，LINE-out | |
| USB | 4*USB3.0 | |
| COM | 6*RS232（2*RS*422/485 Optional） | |
| LAN | 2 * Intel | |
| Display | 1*HDMI | |
| Expansion slot | Multifunctional expansion cards | |
| Display screen | ||
| Display | 19.0”TFT LED | |
| Resolution | 1280*1024 | |
| Brightness | 350cd/m2 | |
| Contrast | 800:1 | |
| Maximum color | 16M | |
| Touch screen | ||
| Type | Capacitive | Resistance |
| Light transmittance | Up to 95% | Up to 85% |
| Click life | 50 million times | 35 million times |
| Response time | <5ms | |
| High temperature test | 85OC/1000hrs | |
| Constant temperature and humidity test | 85OC/90%RH/1000hrs | |
| Structural Parameters | ||
| Panel housing | The casing is made of aluminum alloy mold | |
| Installation method | Panel embedded, VESA mounting | |
| Power input | 12V~36V DC | |
| Overall dimensions | 436mm*361mm*68mm | |
| Power | 20W | |
| Weight | 3KG | |
| Environmental parameters | ||
| Operating temperature | -20～60 OC（Electronic disk） | |
| Storage temperature | -30～80 OC | |
| Correlation humidity | 10～95%@40 | |
| Front panel protection | IP65 standard | |
| Multifunction expansion card | ||
| Product Name | Configuration | |
| NIM1 | 2-way Intel 211 network card | |
| NIM2 | 4-way intel 211 network card (POE support) | |
| MIPCIE | Support CAN card/M.2 hard disk/5G module/14-channel GPIO | |
| COM1 | 2 way 485/2 way 232（Optional） | |
| COM2 | 2 way 485/4 way 232 | |
| Battery power management module | Power-on support delayed power on, power off automatically when power off delay. | |
| Switching/analog | 8CH/16CH (optional) | |
| Hard Drive | A 2.5-inch pull-out bay is available | |
| Order | ||
| Product Name | Configuration | |
| PW-PPC-QY-P8190/J1900 | J1900/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/J6412 | J6412/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I3-4010U | I3-4010U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I5-4260U | I5-4650U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I7-4650U | I5-4650U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I5-6200U | I3-7100U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I7-7500U | I5-6200U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I5-8260U | I7-7500U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I5-6200U | I5-8260U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I5-10210U | I5-10210U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |
| PW-PPC-QY-P8190/I7-10610U | I7-10610U/2*LAN/4*USB/6*RS232（2*422/485Optional）/1*HDMI/12-36V | |

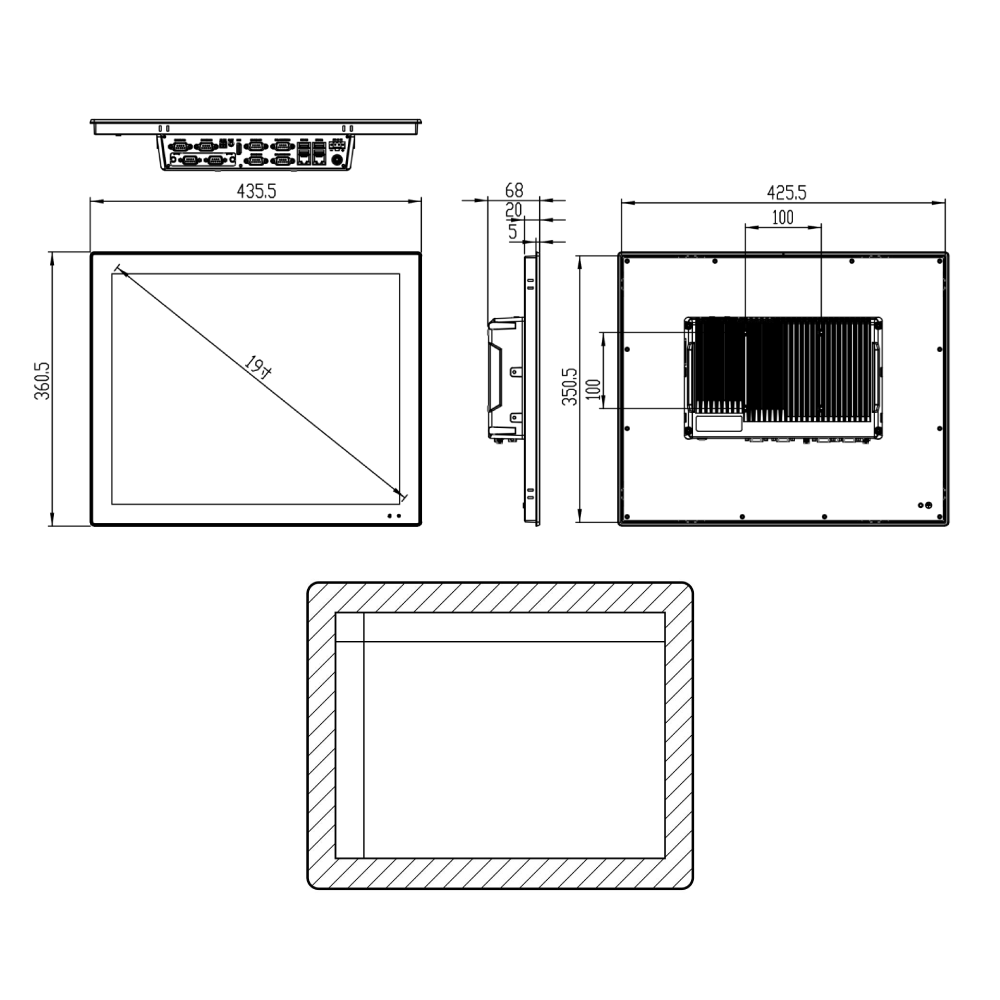

Dimension
