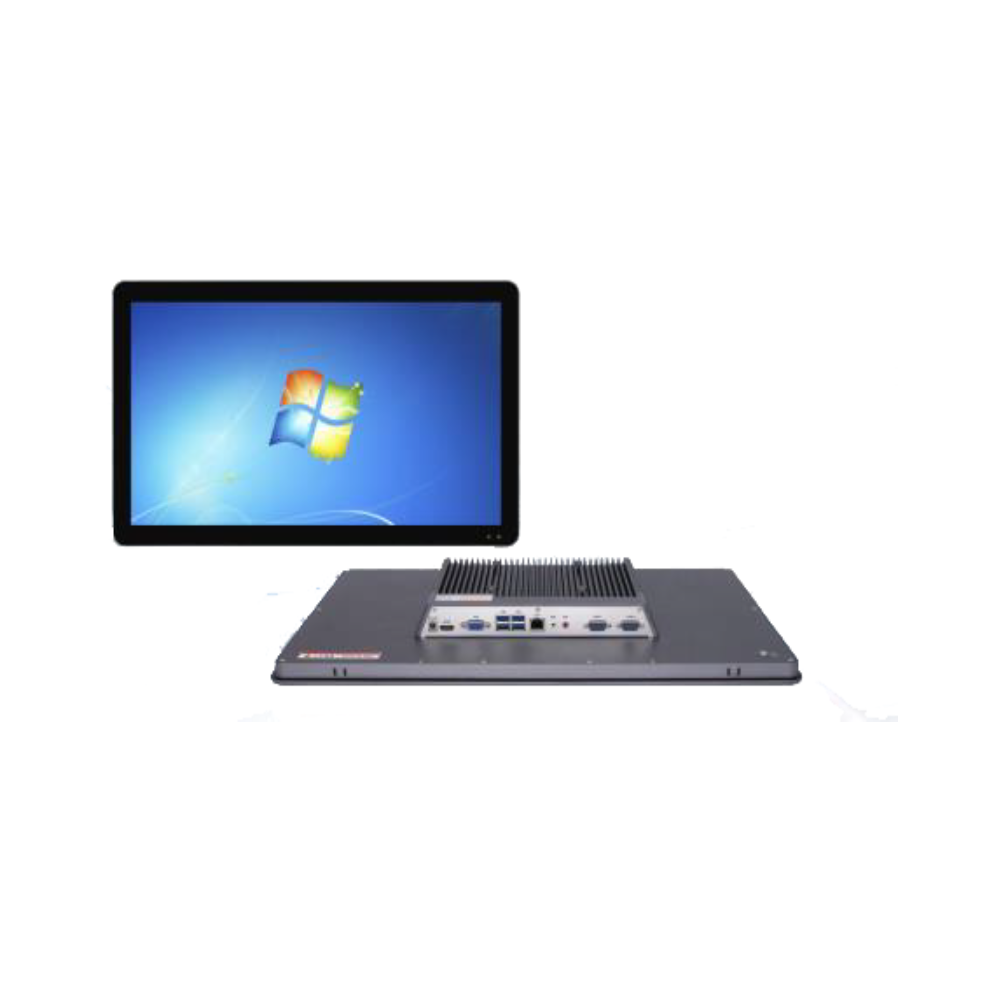

PW-PPC-15.6-i5-12

PW-PPC-156-i5-12

15.6 " true color LCD display with a resolution of 1920x1080 and a backlight life of up to 50,000 hours.
The front panel achieves IP65 protection level to prevent dust & spattered water droplets from entering the display.
The ultra-thin design saves cabinet space and is resistant to shock & vibration.
12V DC power input, meet the industrial site power supply.
High-precision capacitive touch screen, with many industrial site application features, while supporting Panel embedded & standard VESA installation, users can flexibly choose the installation method.

Model #.	PW-PPC-15.6-i5-12
Processor	Intel Core i5 - 12th Generation processor
Memory	16GB RAM, expandable up to 32GB
Storage	512GB SSD
OS	Windows 10 Pro/Windows IOT
MSATA	1MSATA/1SATA
I/Os	4USB, 1HDMI/1VGA, 1GB LAN, 2RS232, 1Hp-out /1*Mic-in
Display screen	15.6”TFT with LED Backlight
Resolution	1920*1080 (16:9 aspect ratio)
Brightness	350cd/m2
Contrast	1000:1
Maximum color	16M
Touch	PCAP Touchscreen
Response time	<5ms
High temperature test	85℃/1000hrs
Constant temperature and humidity test	85℃/90%RH/1000hrs
Panel cabinet	The casing is molded by aluminum alloy mold
Power input	12V DC external AC~DC power supply
Overall dimensions	390mm248mm57mm
Mounting	Panel mount/Wall mount/ Rack mount
Power	20W
Weight	3kg
Operating temperature	Designed to comply -10～60℃（Electronic disk）
Storage temperature	Designed to comply -20～80℃
Correlated humidity	10～95%@40℃（Non-condensing）
Front panel protection	IP65 standard
Warranty	12 months standard warranty
