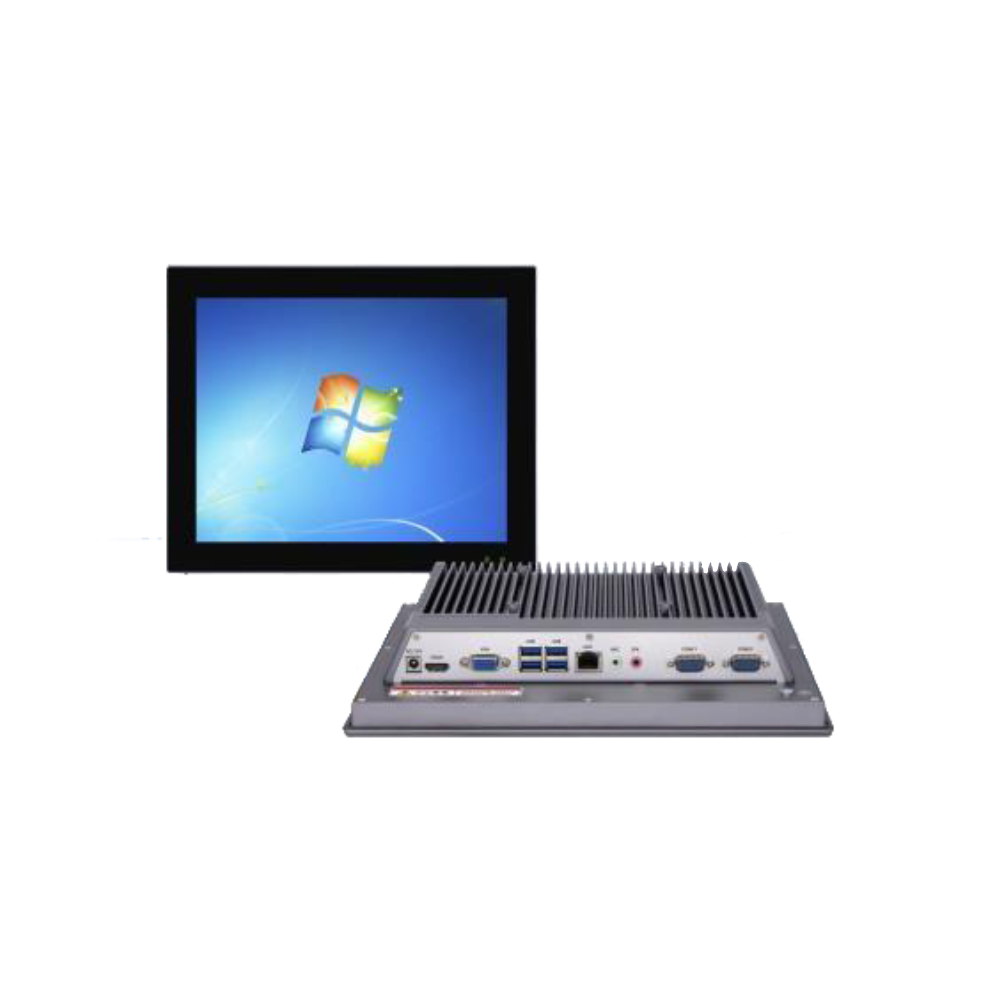

10.4 Inch Industrial Panel PC
PW-PPC-104-i5-12
Slim and Fan-free 5-wire Resistive Touch Panel PC with Wide Temperature Support Powered by Intel® Apollo Lake-I Qual-core Processor
Features :
- 10.4 "true color LED display with a resolution of 1024*768 and a backlight life of up to 50,000 hours.
- The front panel achieves IP65 protection level to prevent dust and spattered water droplets from entering the display.
- The ultra-thin design saves cabinet space and is resistant to shock and vibration.
- 12V DC power input, meets the industrial site power supply.
- High-precision capacitive touch screen, with many industrial site application features, while supporting panel embedded and standard VESA installation, users can flexibly choose the installation method.
Specifications
| Processor | Intel Core i5 - 12th Generation processor |
| Memory | 16GB DDR4 |
| OS | Windows 10 Pro |
| Storage | 1TB SSD |
| Display | 1*HDMI/1*DP |
| I/O | 4*USB, 2*RJ45, 2*COMM |
| Audio | 1*Line-out /1*Mic-in |
| Screen Size | 10.4”LCD TFT with LED Backlight |
| Resolution | 1024x768 (4:3 aspect ratio) |
| Brightness | 350cd/m2 |
| Contrast | 800:1 |
| Maximum color | 16M |
| Touch Screen | PCAP |
| Click Life | 50 million times |
| Response time | <5ms |
| High temperature test | 65℃/100hrs |
| Constant temperature and humidity test | 85℃/90%RH/1000hrs |
| Panel cabinet | Enclosure is aluminum alloy mold |
| Power input | 12V DC power supply (AC~DC external adapter) |
| Overall dimensions | 271.5mm*218mm*56mm |
| Installation method | The panel is flush-embedded and mountable with a bracket |
| Power | 20W |
| Weight | Approx 3 kg |
| Operating temperature | 10～60℃（Electronic disk -） |
| Storage temperature | -20～80℃ |
| Correlated humidity | 10～95%@40℃ （Non-condensing） |
| Front panel protection | IP65 standar |
