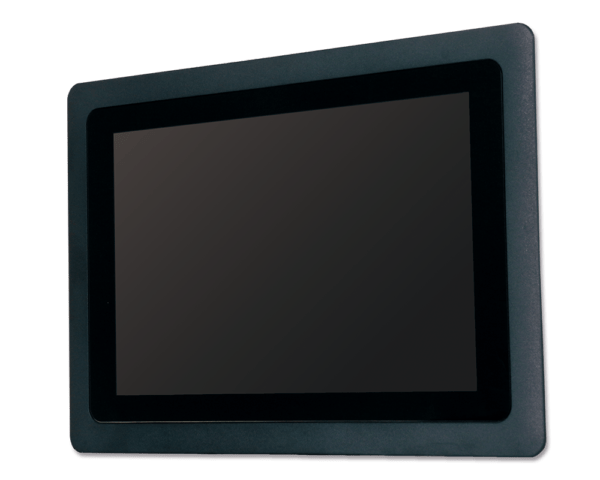

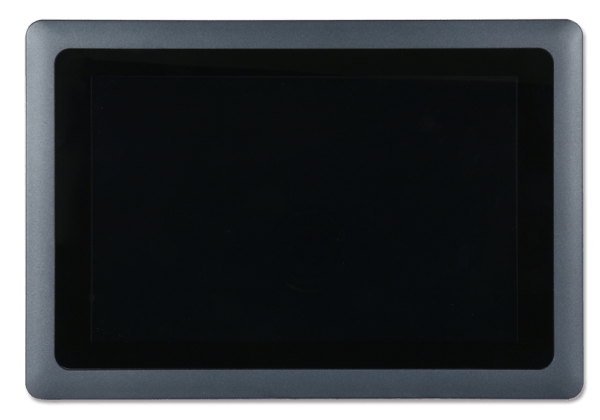

COMBO-S1020
Compact and Projective Capacitive Touch HMI with Wide Temperature and Voltage Support Powered by NXP i.MX 6 Series Family
Features :
- RISC based Fan-less and Cable-less Touch PPC
- i.MX6 Cortex A9 1GHz
- Built-in DDR3 2GB, 8GB eMMC
- 10.1″ Industrial panel
- Wide Power input from DC12~24V
- Gigabit Ethernet * 1
- RS-232/422/485 * 1
- CAN * 1
Description
In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. Featuring cost effective and power efficiency, COMBO Series is an ideal HMI in factory automation, food and beverage industry, data collecting equipment environments.
Specification
| Model Name | COMBO-S1020 |
| Display | |
| LCD Size | 10.1″ (16:9) |
| Resolution | WXGA 1280 x 800 |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1300:1 |
| Backlight | LED type |
| Touch Window | Projected Capacitive Multi-Touch |
| System | |
| SOC | Freescale™ i.MX6 Solo/Quad-core Processor (Cortex™ A9) |
| Memory | 512MB/2GB DDR3 1066 Memory Chip on Board |
| BIOS | N/A |
| Graphics | Freescale™ i.MX6 Graphic Engine |
| LVDS | Single/Dual Channel 24-bit |
| LAN Chipset | Single Atheros AR8035 Ethernet PHY |
| Audio | Wolfson WM8962 Audio Codec |
| Watchdog Timer | Control by Software |
| Storage Device | 4/8GB eMMC on Board, 1 x SD card |
| OS | Linux™ 3.10.53 + QT5.2 / Android 5.0 |

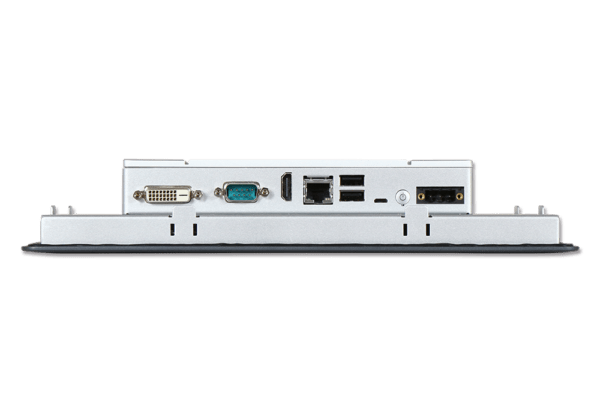

| I/O Interface | |
| Series Port | 1 x RS-232/422/485 |
| Display | 1 x HDMI® |
| USB | 2 x USB 2.0, 1 x USB OTG |
| Ethernet | 1 x Gigabit Ethernet |
| Others | 1x CAN 2.0B (DB9) 1 x SMA Antenna hole for WiFi/3G/4G LTE Solution |
| Expansion | 1x Full-size Mini PCIe socket 1 x DVI-D Input, 4-bit DI / 4-bit DO, 1 x RS-232(Optional) |
| Mechanical | |
| Dimesion(mm)(WxDxH) | 286 x 196 x 49 mm |
| Mounting (mm) | VESA Mount 25×50, 75×75 ; Panel Mount |
| Weight (Kg)(N) | 1.6 KG |
| Weight (Kg)(N) | 3.4 KG |
| Power | |
| Power Supply | DC 12 ~ 24V input with 3-pin Terminal Block Connerctor |
| Consumption (Max) | 25W |
| Consumption (Min) | 6.2W |
| Environmental | |
| OP /Storage Temp | -20°C~60°C / -30°C~80°C(20~90% non-condensing) |
| Vibration | 1.0G(SD/eMMC) Power on & 2.16G, Packaged; 5~500Hz,IEC 60068-2-6 |
| Shock | 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27 |
| Drop | Packaged with Carton 96.5cm (1-Corner, 3-Axis, 6-Face),ISTA 2A Standard |
| IP Protection | IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard |
| Certificate | CE/FCC Class A |
| Ordering Guide | |
| AL6-3224 | (R).ATO.COMBO-S1020-Solo-512-8G. 10.1″ i.MX6 P-CAP HMI |
| AL6-3236 | (R).ATO.COMBO-S1020-Quad-2G-8G. 10.1″ i.MX6 P-CAP HMI |
