PW-ILD-215-T
21.5” Industrial LED Display Monitor with Touch
PW-ILD-215-T
Features :
- The PW-ILD-215-T is a-Si TFT-LCD display with an integral LED backlight system.
- 21.5” inch diagonally measured active display area with Full HD resolution (1920(RGB)×1080 pixel resolution array).
- 21.5” Display Monitor supports LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important
- Hi-brightness and Hi-contrast display
- Wide input option of DVI, HDMI and VGA
- PCAP touch included
Specification
| Model#. | PW-ILD-215-T |
|---|---|
| Active Screen Size | 21.5 inches diagonal – Display screen |
| Touch | Projected Capacitive Touch (PCAP touchscreen) |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Active View Area | 476.064(W)×267.786(H) mm |
| Aspect Ratio | 16:9 (H:V) |
| Input options | DVI, HDMI, VGA, USB (only for touch) |
| Color Depth | 16.7M 72% NTSC |
| OSD | Rear bottom OSD buttons |
| Mounting | Vesa/Wall |
| Luminance, White | 500cd/m2 (Center 1 point ,Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR>10) | 89/89/89/89 (Typ.)(CR≥10) |
| Power Consumption | 230V AC input |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Weight | Approx. 10 kgs |
| Surface Treatment | Hard coating(2H), Anti-glare treatment |
| Possible Display Type | Landscape Enabled |

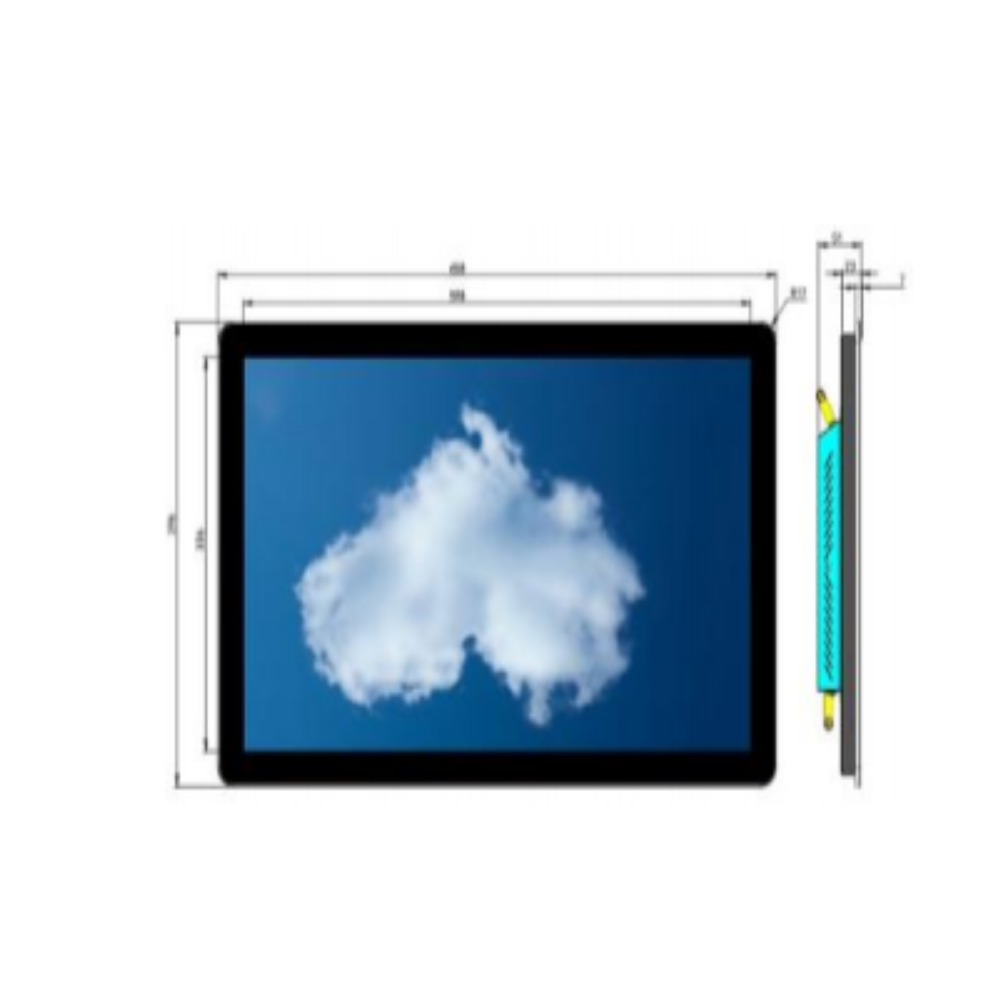

| Mechanical | TBD |
| Warranty | 12 months (extended warranty on demand) |
| Lead time | 6-8 weeks ARO |
| Ordering Information | |
|---|---|
| PW-ILD-215-T | 21.5″ Industrial Display Monitor with Touch |
| PW-ILD-215-RT | 21.5″ Rugged Display Monitor with Touch |
