Model Name |

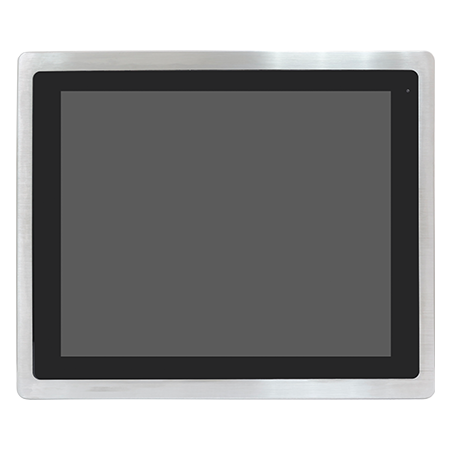

ViTAM-915BP/R/H |

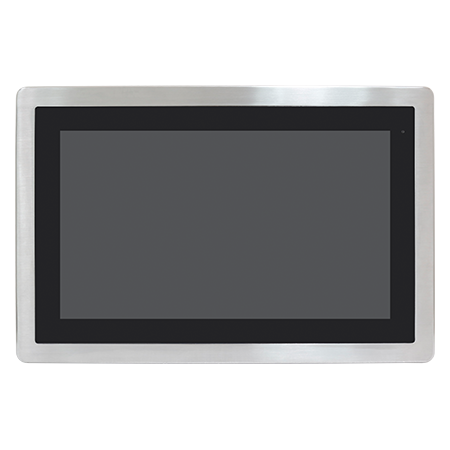

ViTAM-916BP/R/H |

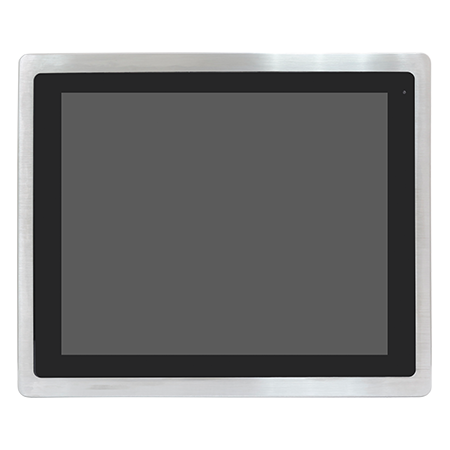

ViTAM-917BP/R/H |

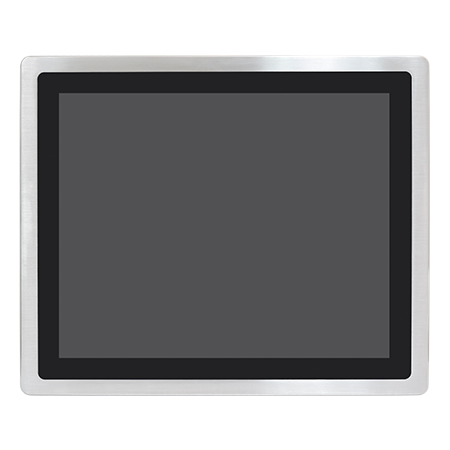

ViTAM-919BP/R/H |
|
LCD |
|
|
|
|
|
LCD Size |
15.6" TFT-LCD |
15.6" TFT-LCD |
17" TFT-LCD |
19" TFT-LCD |
|
Touch Type |
P: Projected Capacitive/ R: Resistive |
P: Projected Capacitive/ R: Resistive |
P: Projected Capacitive/ R: Resistive |
P: Projected Capacitive/ R: Resistive |
|
Luminance(cd/m²) |
Standard: 300
High Brightness: 1000 |
Standard: 400 (default), 450 (optional)
High Brightness: 1000 |
Standard: 350
High Brightness: 1000 |
Standard: 350
High Brightness: 1000 |
|
System |
|
|
|
|
|
CPU |
8th Gen. Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)
8th Gen. Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
8th Gen. Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)
8th Gen. Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
8th Gen. Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)
8th Gen. Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
8th Gen. Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)
8th Gen. Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
|
Power Consumption |
ViTAM-915BR: 34.46W (MAX) |
ViTAM-916BP: 38.52W (MAX) |
ViTAM-917BRH: 41.77W (MAX) |
ViTAM-919BP: 39.55W (MAX) |
|
System Chipset |
SoC |
SoC |
SoC |
SoC |
|
System Memory |
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
|
TPM |
TPM 2.0 |
TPM 2.0 |
TPM 2.0 |
TPM 2.0 |
|
I/O Port |
|
|
|
|
|
LAN |
1 x M12 8-pin for LAN with waterproof cover |
1 x M12 8-pin for LAN with waterproof cover |
1 x M12 8-pin for LAN with waterproof cover |
1 x M12 8-pin for LAN with waterproof cover |
|
Power |
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x Touch on/off button at the side |
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x Touch on/off button at the side |
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x Touch on/off button at the side |
|
|
Serial / Parallel |
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
|
|
USB |
1 x M12 8-pin for USB 2.0 with waterproof cover |
1 x M12 8-pin for USB 2.0 with waterproof cover |
1 x M12 8-pin for USB 2.0 with waterproof cover |
|
|
Storage Space |
|
|
|
|
|
HDD/SSD |
1 x 2.5" SATA3 HDD (for option)
1 x M.2 M-Key(PCIe x4/ SATA3 Auto Detect), Support 2242 at Default |
1 x 2.5" SATA3 HDD (for option)
1 x M.2 M-Key(PCIe x4/ SATA3 Auto Detect), Support 2242 at Default |
1 x 2.5" SATA3 HDD (for option)
1 x M.2 M-Key(PCIe x4/ SATA3 Auto Detect), Support 2242 at Default |
|
|
Expansion |
|
|
|
|
|
Expansion Module |
RFID module design on the front side (for option) |
RFID module design on the front side (for option) |
RFID module design on the front side (for option) |
|
|
Expansion slot |
1 x Mini-PCIe slot for 4G/5G , WiFi/BT module
1 x NANO-SIM |
1 x Mini-PCIe slot for 4G/5G , WiFi/BT module
1 x NANO-SIM |
1 x Mini-PCIe slot for 4G/5G , WiFi/BT module
1 x NANO-SIM |
|
|
Display |
|
|
|
|
|
Backlight lifetime(hrs) |
70,000 |
50,000 |
Standard: 30,000
High Brightness: 50,000 |
|
|
Contrast |
Standard: 2000:1
High Brightness: 1000:1 |
500:1 (default), 1000:1 (optional) |
Standard: 1000:1
High Brightness: 800:1 |
|
|
LCD Size |
15" TFT-LCD |
15.6" TFT-LCD |
17" TFT-LCD |
|
|
Luminance(cd/m²) |
Standard: 300
High Brightness: 1000 |
Standard: 400 (default), 450 (optional)
High Brightness: 1000 |
Standard: 350
High Brightness: 1000 |
|
|
Max. color |
16.7M |
16.7M |
16.7M |
|
|
Max. resolution |
1024 x 768 |
1366 x 768 (default)
1920 x 1080 (optional) |
1280 x 1024 |
|
|
Viewangle(H°/V°) |
176 / 176 |
Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional) |
Standard: 170 / 160
High Brightness: 160 / 140 |
|
|
Touch Screen(Option) |
|
|
|
|
|
Interface |
USB |
USB |
USB |
|
|
Light transmission(%) |
Projected Capacitive Touch: Over 90%
Resistive Touch: 80% |
Projected Capacitive Touch: Over 90%
Resistive Touch: 80% |
Projected Capacitive Touch: Over 90%
Resistive Touch: 80% |
|
|
Touch Type |
P: Projected Capacitive/ R: Resistive |
P: Projected Capacitive/ R: Resistive |
P: Projected Capacitive/ R: Resistive |
|
|
Power |
|
|
|
|
|
Power input |
DC 9~36V |
DC 9~36V |
DC 9~36V |
|
|
Mechanical |
|
|
|
|
|
Construction |
304 Stainless steel chassis(default)
316 Stainless steel chassis(optional) |
304 Stainless steel chassis(default)
316 Stainless steel chassis(optional) |
304 Stainless steel chassis(default)
316 Stainless steel chassis(optional) |
|
|
Dimension(mm) |
399 x 324 x 53 mm |
440 x 290 x 55 mm |
432 x 358 x 55.3 mm |
|
|
IP rating |
Total IP66/IP69K |
Total IP66/IP69K |
Total IP66/IP69K |
|
|
Mounting |
VESA mount 75 x 75, Yoke mount for optional |
VESA mount 75 x 75, Yoke mount for optional |
VESA mount 75 x 75, Yoke mount for optional |
|
|
Net weight(Kgs) |
6.7 kg |
6.64 kg |
8.16 kg |
|
|
Environment |
|
|
|
|
|
Certification |
CE/FCC Class A |
CE/FCC Class A |
CE/FCC Class A |
|
|
Operating temperature(°C) |
0~50°C / -20~60°C for option |
0~50°C / -20~60°C for option |
0~50°C / -20~60°C for option |
|
|
Storage humidity |
10 to 95% @ 40°C, non-condensing |
10 to 95% @ 40°C, non-condensing |
10 to 95% @ 40°C, non-condensing |
|
|
Storage temperature(°C) |
-30~70°C |
-30~70°C |
-30~70°C |
|
|
Operating System |
|
|
|
|
|
Operating System |
Windows 10, Windows 11 |
Windows 10, Windows 11 |
Windows 10, Windows 11 |
|
|
Ordering Information |
|
|
|
|
|
Barebone |
- |
- |
- |
|
|
Option |
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
●2 x USB 2.0 ●1 x USB 3.0 ●1 x LAN ●1 x COM ●1 x CAN |
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
●2 x USB 2.0 ●1 x USB 3.0 ●1 x LAN ●1 x COM |
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
●2 x USB 2.0 ●1 x USB 3.0 ●1 x LAN ●1 x COM |
|
