ANS-9A44F/42F
Compact System with Intel® Atom® C3758R(8C) / C3558R(4C) Processor for SD-WAN solution
Features :
- Intel® Atom® C3758(8C) / C3558R(4C) Processor

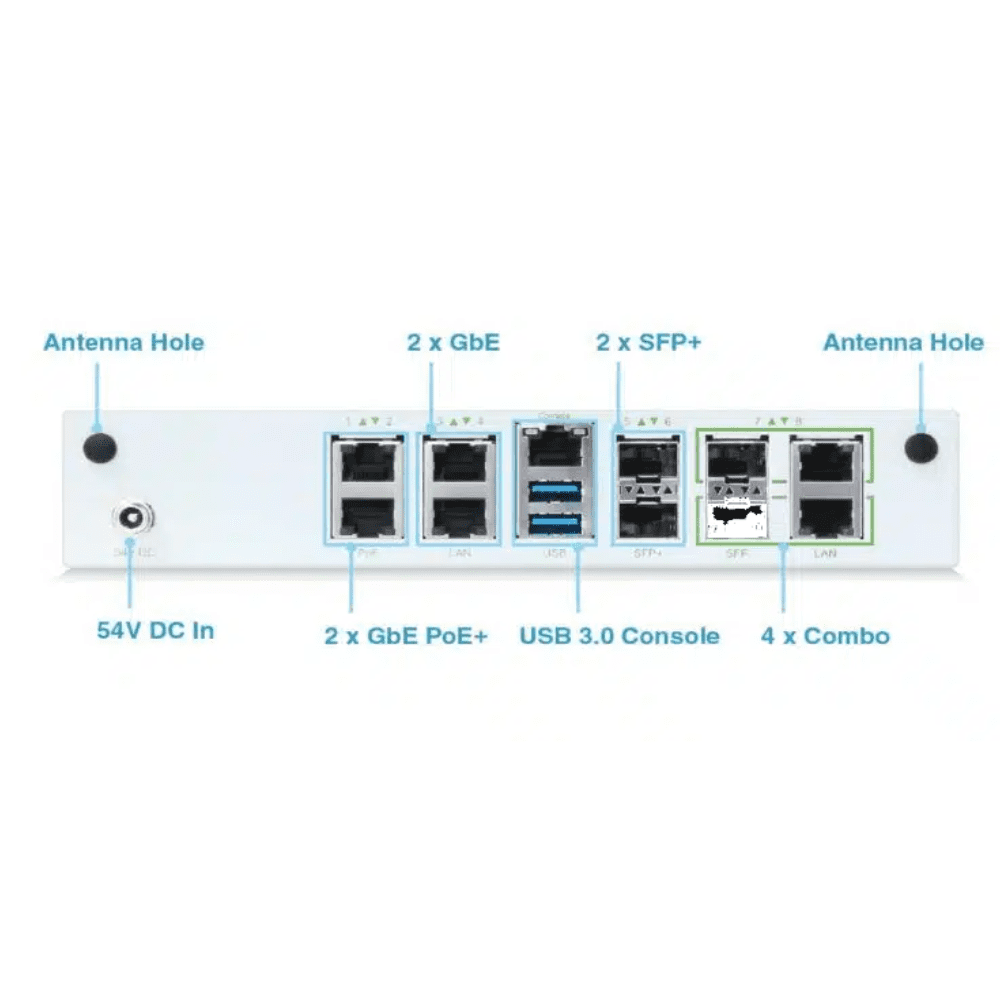

- 2x 10Gb SFP+, 2x GbE RJ45, 2x GbE RJ45 PoE+, 4x Combo Ports
- 1x RJ45 Console, 2x USB 3.0
- 2 x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 64GB
- 1x TPM2.0(on-board)
- 2x M.2 Key-E Slot(PCIe/ USB2.0), 2x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
- Design ready for 5G and WiFi
- Compact design 2 in 1U rackmount
ANS-9A44F/42F series builds on Intel® Atom® C3758R / C3558R processor with up to eight CPU cores. ANS Denverton series is a compact system with up to 2xSFP+, 2x GbE ports, 2x GbE PoE+ ports and 4x Combo ports, it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
Specification
| General | ||
| Model Name | ANS-9A42F | ANS-9A44F |
| Processor | Intel® Denverton C3758R (8C) for ANS-9A44F | Intel® Denverton C3558R (4C) for ANS-9A42F |
| BIOS | AMI UEFI BIOS | |
| Memory | 2 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 64GB | |
| Storage |
| |
| Expansion |
| |
| Security | TPM 2.0 | |
| External I/O | ||
| Console | 1 x RJ45 | |
| USB | 2 x USB 3.0 | |
| Ethernet | 2 x GbE RJ45 (Intel® I211), 2 x SFP+ (From Intel® Denverton) | |
| PoE Ethernet | 2 x GbE RJ45 PoE+ (Intel® I211) | |
| Combo Ethernet | 2 x GbE RJ45 (Marvell 88E1543), 2 x SFP (Marvell 88E1543) | |
| Other | 6 x SMA Antenna Holes for WiFi or LTE/5G module | |
| Power | ||
| System | 120W Power Adapter, 110-220V AC Input, 54V DC Output | |
| Mechanical | ||

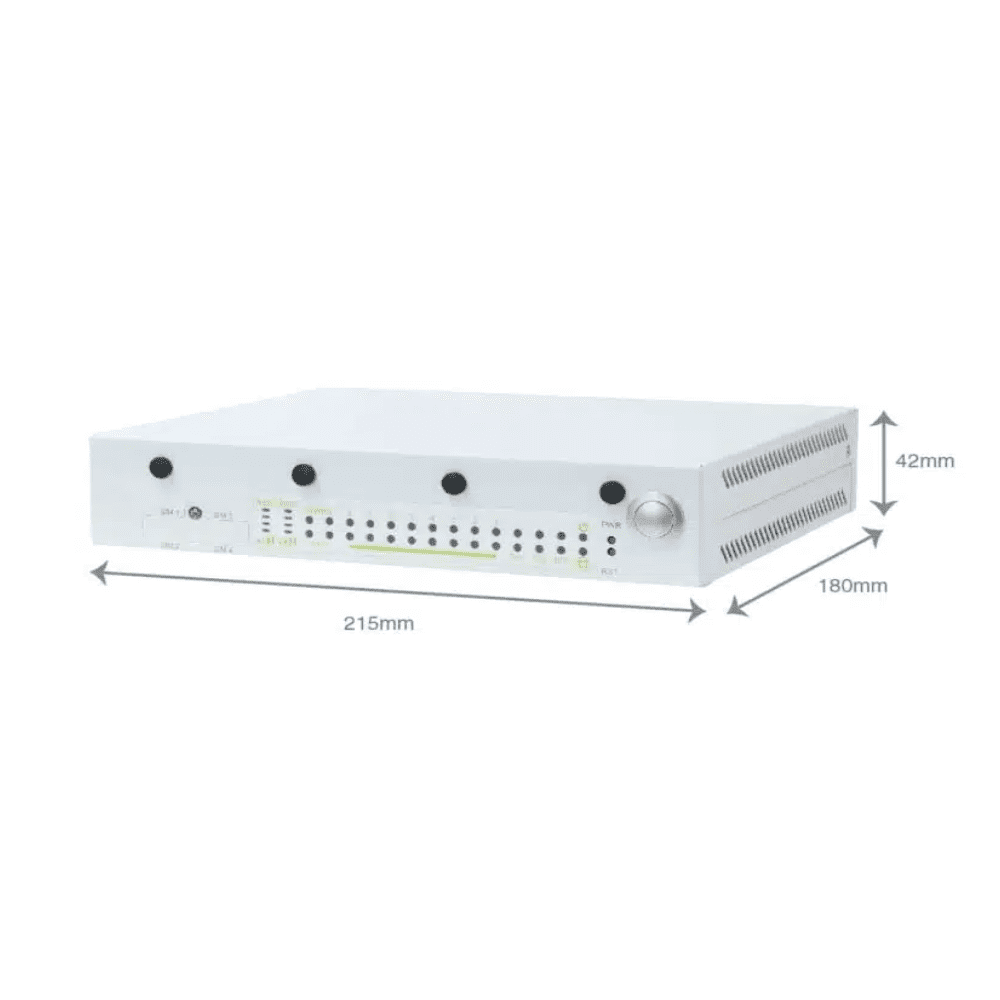

| Dimension | 215 (W) x 180 (D) x 42 (H) mm | |
| Mounting | Desk, Wall Mount | |
| Environmental | ||
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -10°C ~ 70°C | |
| Relative Humidity / Certification | 10% ~ 90% @40°C non-condensing, CE, FCC, LVD | |
Ordering Guide
| Part Number | Description |
|---|---|
| AS1-3322 | (R) ANS-9A44F, C3758R 8-Core, 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port |
| AS1-3323 | (R) ANS-9A42F, C3558R 4-Core, 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port |
