ANS-9142S
Compact SD-WAN application with Intel® Denverton C3436L(4C) / C3338R(2C) Processor
Features :
- Intel® Atom® C3436L(4C) / C3338R(2C) Processor (Denverton)
- 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
- 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
- 1x TPM 2.0 (on-board)
- 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount

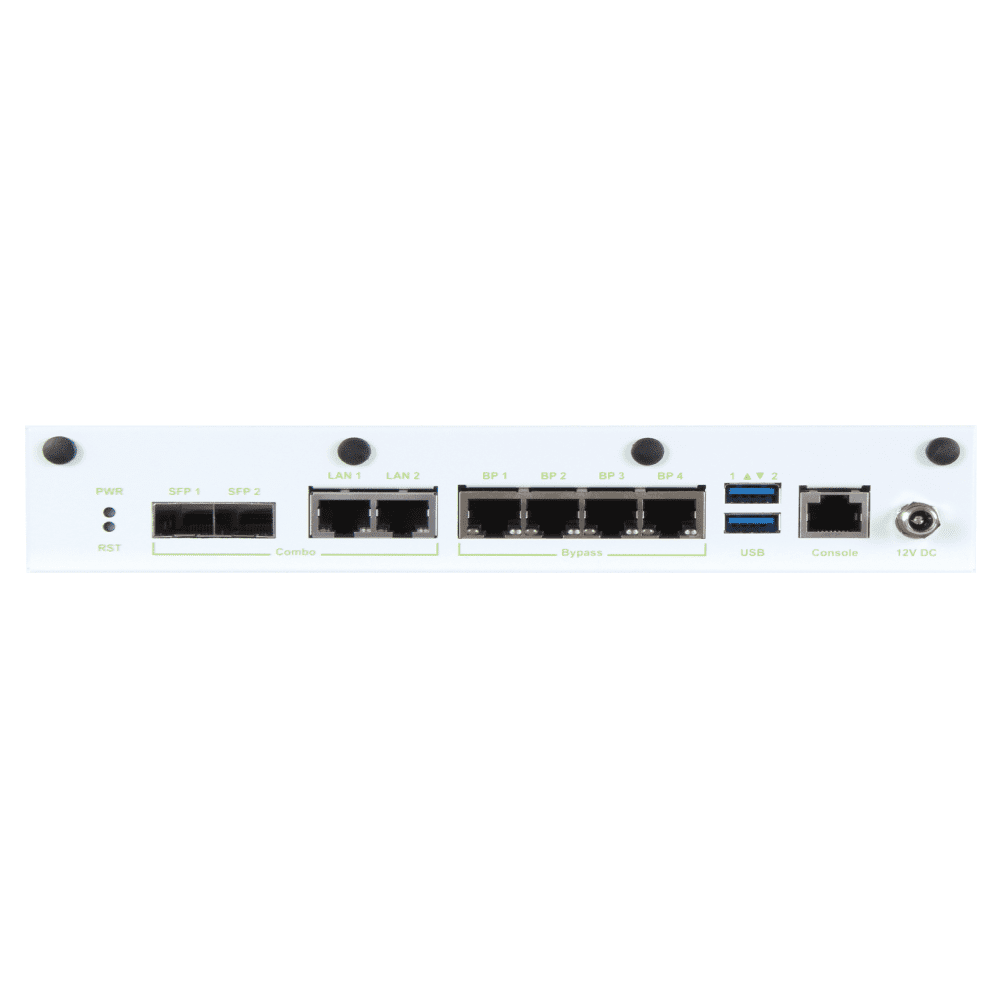

ANS-9142S series builds on Intel® Denverton C3436L / C3338R processor with up to four CPU cores. ANS Denverton Refresh series is a compact system with up to 2x combo ports, and 4x 1/2.5GbE ports with ETH bypass, it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
Specification
| GENERAL | |
| Processor |
|
| BIOS | AMI UEFI BIOS |
| Memory | 2 x DDR4 2400 MT/s ECC & non-ECC SO-DIMM up to 64GB |
| Storage | 1 x SATA III port for SATA DOM, 1 x Key-M storage |
| Expansion |
|
| Security | TPM 2.0 |
| EXTERNAL I/O | |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| Ethernet |
|
| Other | 8 x SMA Antenna holes for WiFi or LTE/5G module |
| POWER ADAPTER | |
| System | Dual 65W Power Adapter, 110-220V AC input, 12V DC output |
| MECHANICAL | |
| Dimension | 289 (W) x 189 (D) x 42 (H) mm |
| Mounting | Desk, Wall mount |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 70°C |
| Relative Humidity | 10% ~ 90%@40°C, non-condensing |
| Certification | CE, FCC, LVD |
Ordering Guide
| AS1-3319 | ANS-9425-C363L 4-Core 16GB M.MC, 4x GbE LAN |
| AS1-3318 | ANS-9425-C3558R 2-Core 16GB M.MC, 4x GbE LAN |
