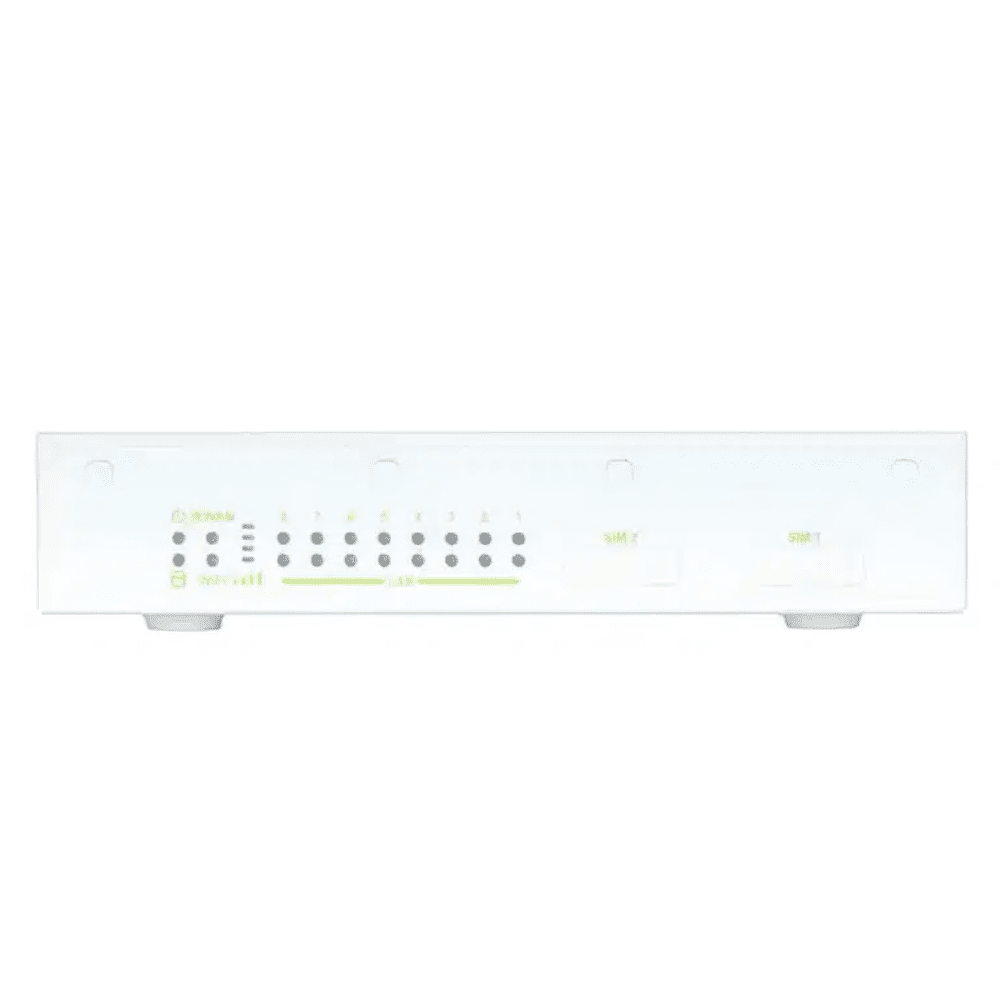

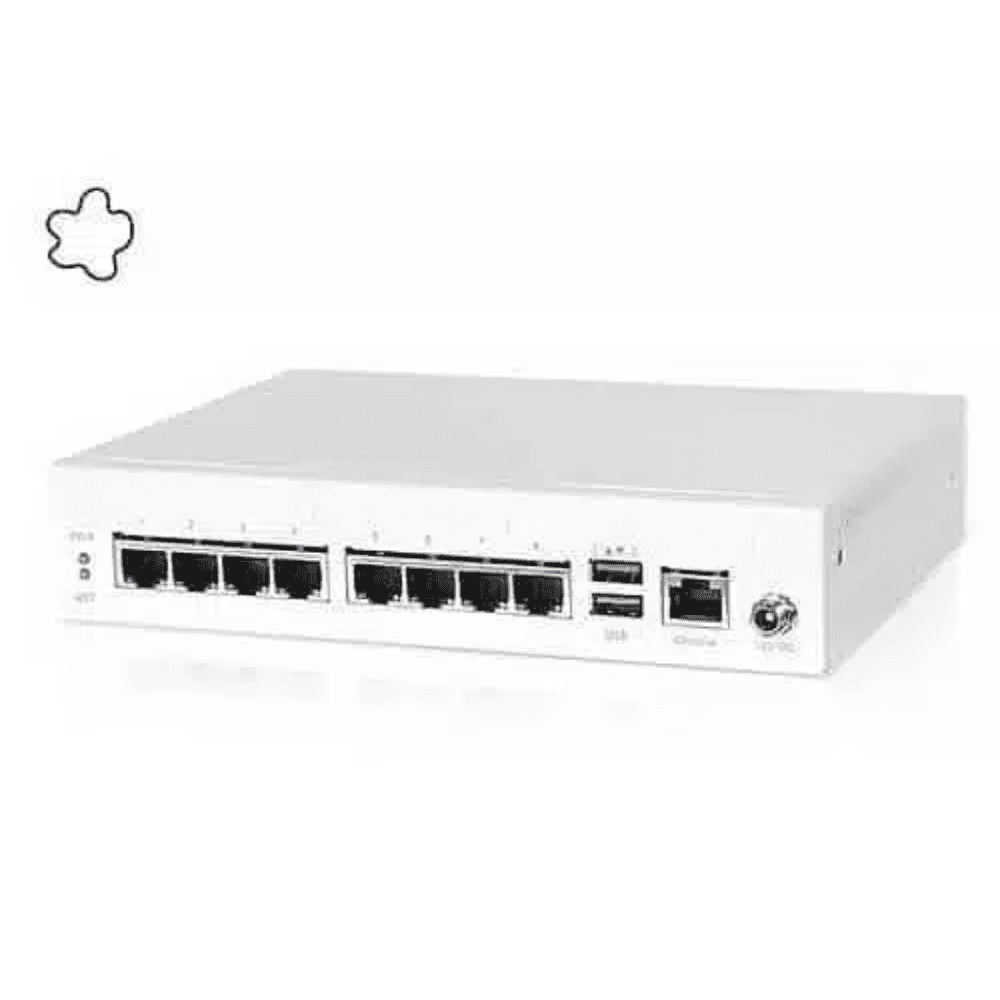

ANS-9142/41
Compact System with Intel®® Denverton C3436L(4C) / C3338R(2C) Processor for SD-WAN solution
Features :
- Intel® Atom® C3436L(4C) / C3338R(2C) Processor (Denverton)
- 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
- 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
- 1x TPM 2.0 (on-board)
- 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)
- Design ready for 5G and WiFi
- Compact design 2 in 1U rackmount
ANS-9142 series builds on Intel® Denverton C3436L / C3338R processor with up to four CPU cores. ANS Denverton series is a compact system with up to 8x GbE ports and it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
Specification
| General | ANS-9142 | ANS-9141 |
| Processor | Intel® Denverton C3436L (4C) | Intel® Denverton C3338R (2C) |
| BIOS | AMI UEFI BIOS | |
| Memory | 1 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 32GB | |
| Storage |
| |
| Expansion |
| |
| Security | TPM 2.0 | |
| Console | 1 x RJ45 | |
| USB | 2 x USB 3.0 | |
| Ethernet | 4 x GbE RJ45 (Intel® I211), 4 x GbE RJ45 (Marvell 88E1543) | |
| Other | 8 x SMA Antenna holes for WiFi or LTE/5G module | |
| System | 65W Power Adapter, 110-220V AC Input, 12V DC Output | |
| Mechanical | ||
| Dimension | 203 (W) x 150 (D) x 42 (H) mm | |
| Mounting | Desk, Wall Mount | |
| Environmental | ||
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -10°C ~ 70°C | |
| Relative Humidity / Certification | 10% ~ 90% @40°C, non-condensing, CE, FCC, LVD | |
Ordering Guide
| Part Number | Description |
|---|---|
| AS1-3319 | (R), ANS-9142, C3436L 4-Core, 16GB eMMC, 8x GbE LAN |
| AS1-3318 | (R), ANS-9141, C3338R 2-Core, 16GB eMMC, 8x GbE LAN |
