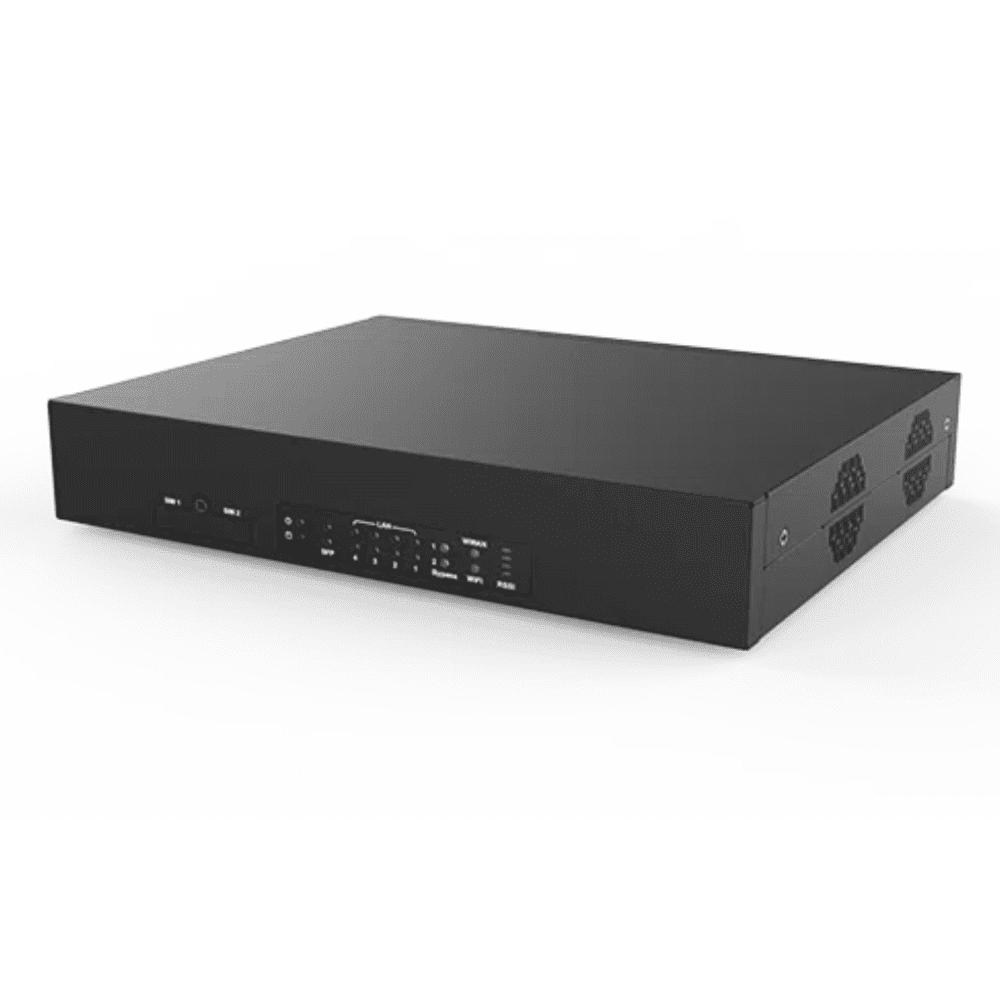

ANS-12002/12003
Compact Fan-less System with Intel® Amston Lake x7433RE(4C)/ x7835RE(8C) Processor for SD-WAN solution
Features :
- ANS-12000 series builds on Intel® Amston Lake x7405C / x7809C
- Up to 8 Efficient Cores (E-cores) and support Intel® DL Boost (INT8), AVX2
- 1x DDR5 4800 MT/s ECC and non-ECC SO-DIMM up to 32GB
-
2x SIM slots
1x M.2 Key-M 2242 slot (SATA)
1x M.2 Key-E 2230 slot (PCIe + USB 2.0) or M.2 2242/2280 (NVME) choose one of two *1
1x M.2 Key-B 3042/3052 slot -
1x TPM2.0 (On-Board)
Design ready for 5G and WiFi
Specification
| MODEL | |
|---|---|
| System Factor | Proprietary |
| GENERAL | |
| Processor | Intel® 8th Gen Atom® Apollo Lake x7-E3950 |
| BIOS | AMI UEFI BIOS |
| Memory | Support up to 32GB in 1 non-ECC SO-DIMM |
| Storage | 1 x 2.5″ SSD/HDD SATA |

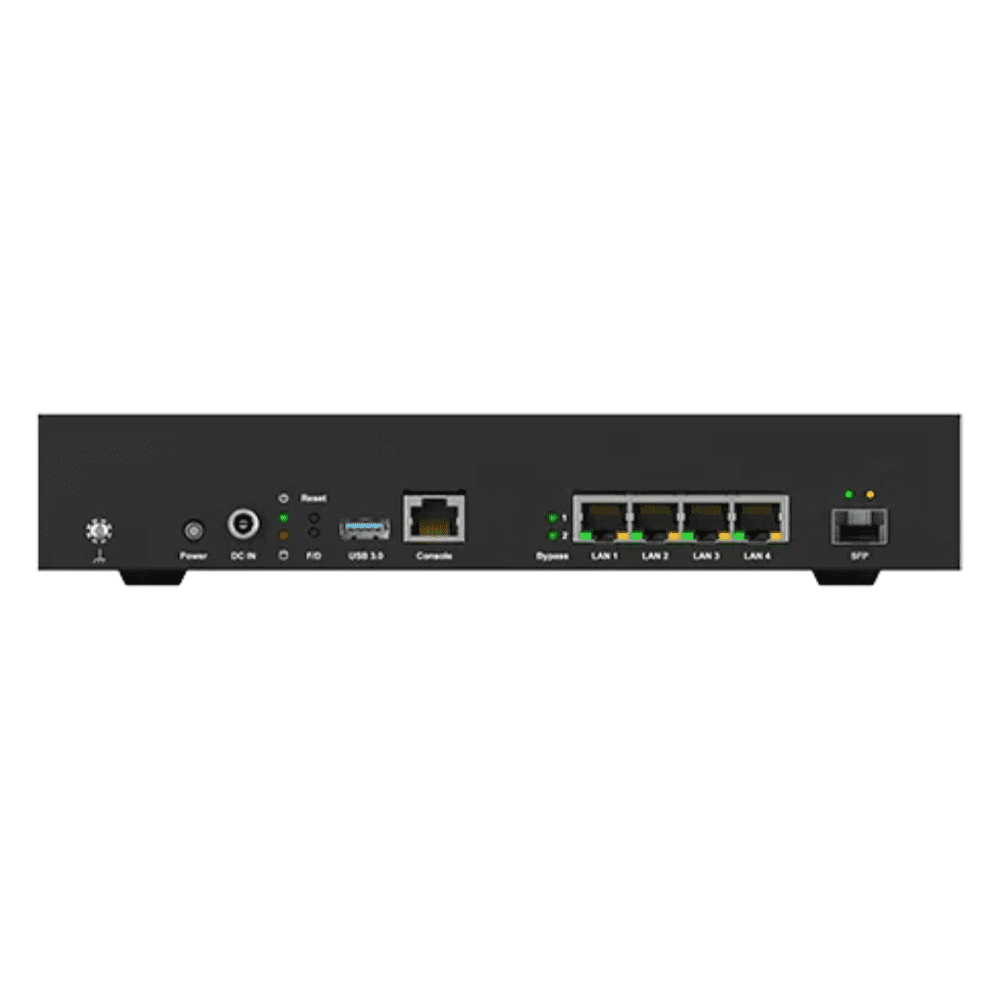

| REAR I/O | |
| Ethernet | 4 x GbE RJ45 Ports 1 x GbE Combo |
| USB | 1 x USB 3.2 Gen1 Type A |
| Other | Power Button, Reset Button |
| Console Port | 1 x RJ45 |
| EXPANSION I/O | |
| M.2 | 1 x Key M 2280 SSD 1 x Key B 4G/WiFi Module |
| Security | TPM 2.0 |
| ENVIRONMENT | |
| Dimension | 200 x 255 x 44 mm |
| Weight | 1.7 kg |
| Power Supply | DC Jack 12V Single |
| Operating Temperature | -10°C to 60°C |
| Cooling | System Fan |
| OTHERS | |
| Choose one of these with M.2 Key E 2230 slot, SFP and M.2 Key M 2242/2280 slot | |
Ordering Guide
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|
| csn_system | ANS-12002 | AS5-3689 | Available | ANS-12002-X7405C. ASL x7405C SKU, Proprietary Fan System. With PNAB-1210-x7405C. 12V Input. 2.5GbE RJ45*4. 1GbE SFP*1. DDR5 SO-DIMM*1 |
| csn_system | ANS-12003 | AS5-3678 | Available | ANS-12003-x7809C. ASL x7809C SKU, Proprietary Fan System. With PNAB-1210-x7405C. 12V Input. 2.5GbE RJ45*4. 1GbE SFP*1. DDR5 SO-DIMM*1 |
