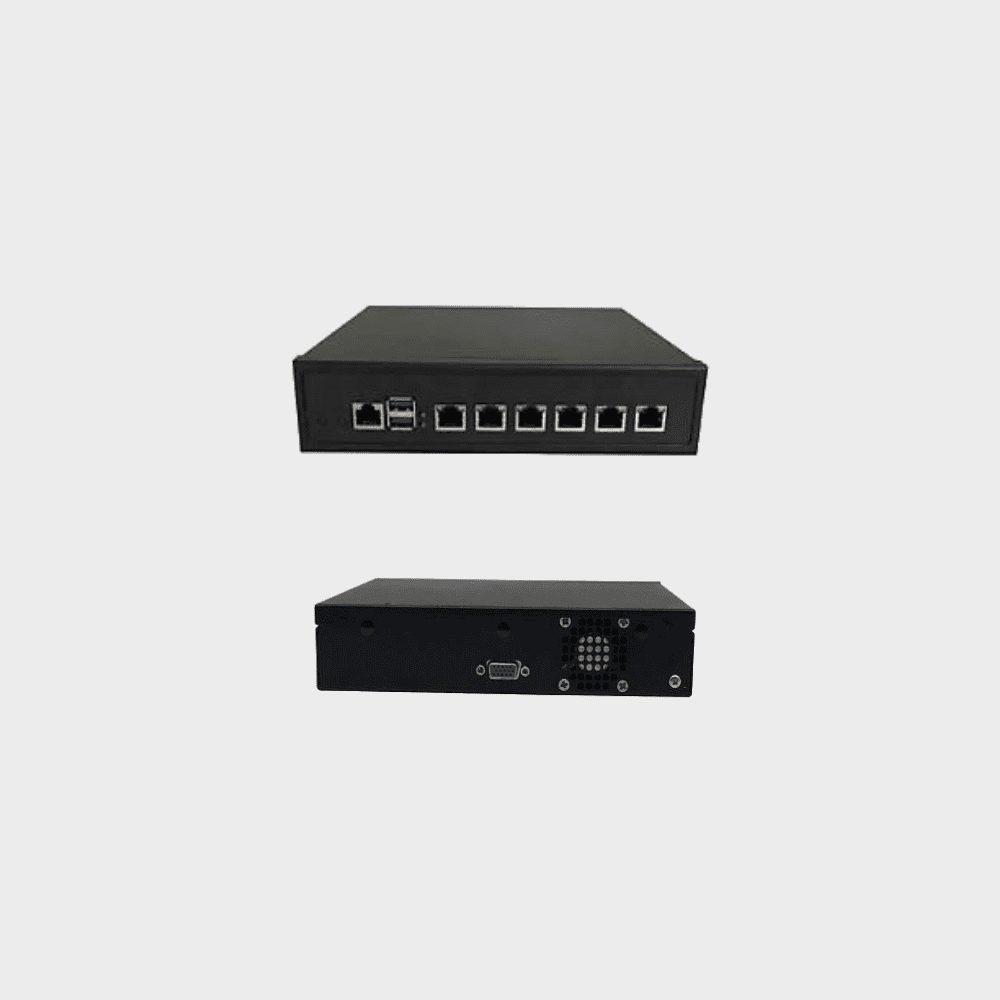

| Model No. | PW-DNA-N100-6P |
| Form Factor |
| Type | Desktop |
| Platform |
| Processor Options | Integrated Intel® N100 quad-core quad-thread processor, TDP 12W |
| CPU Socket | Onboard |
| Chipset | SoC |
| OS Support | Windows 10 / Linux |
| BIOS | AMI 128 BIOS |
| Display |
| Graphics | Integrated Intel® HD Graphics core graphics card |
| Video Output | 1 x VGA |
| System Memory |
| Technology | DDR4 |
| Max. Capacity | 16GB |
| Socket | 1 x 260-pin SODIMM |
| Networking |
| Ethernet Ports | 6 x Intel I225/I226 Gigabit LAN, support Wake-on-LAN and PXE function |
| Bypass | – |
| Storage |
| HDD/SSD Support | 1 x SATA 2.0 2.5-inch notebook HDD bay |
| mSATA | 1 x mSATA |
| I/O Interface |
| Reset Button | 1 x Reset Button |
| Display | 1 x VGA |
| LED | 1 x Power LED (Green), 1 x HDD Active (Red) |
| Power Button | 1 x Power Button |
| Console | 1 x RJ45 Serial Interface |
| USB | 2 x USB 3.0 |
| Ethernet | 6 x RJ45 Gigabit Network Interface |
| Expansion |
| Mini PCIe | 1 x Mini PCIe (supports 4G module) |
| M.2 | 1 x M.2 Key-B 2242/2252 slot supporting 4G/5G modules |
| Miscellaneous |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| Cooling |
| Fan Interface | 1 x 4-pin CPU smart fan connector, 1 x 3-pin system fan connector |
| Environmental Parameters |
| Temperature | 0°C ~ 45°C (Operating) / -20°C ~ 70°C (Storage) |
| Humidity | 5 ~ 90% non-condensing |
| System Dimensions |
| (WxHxD) | 230 x 44 x 184 mm |
| Weight | 2 kg |
| Power |
| Type/Watts | 60W Open Frame PSU |
| Input | 90 ~ 264V @ 47 ~ 63Hz |
