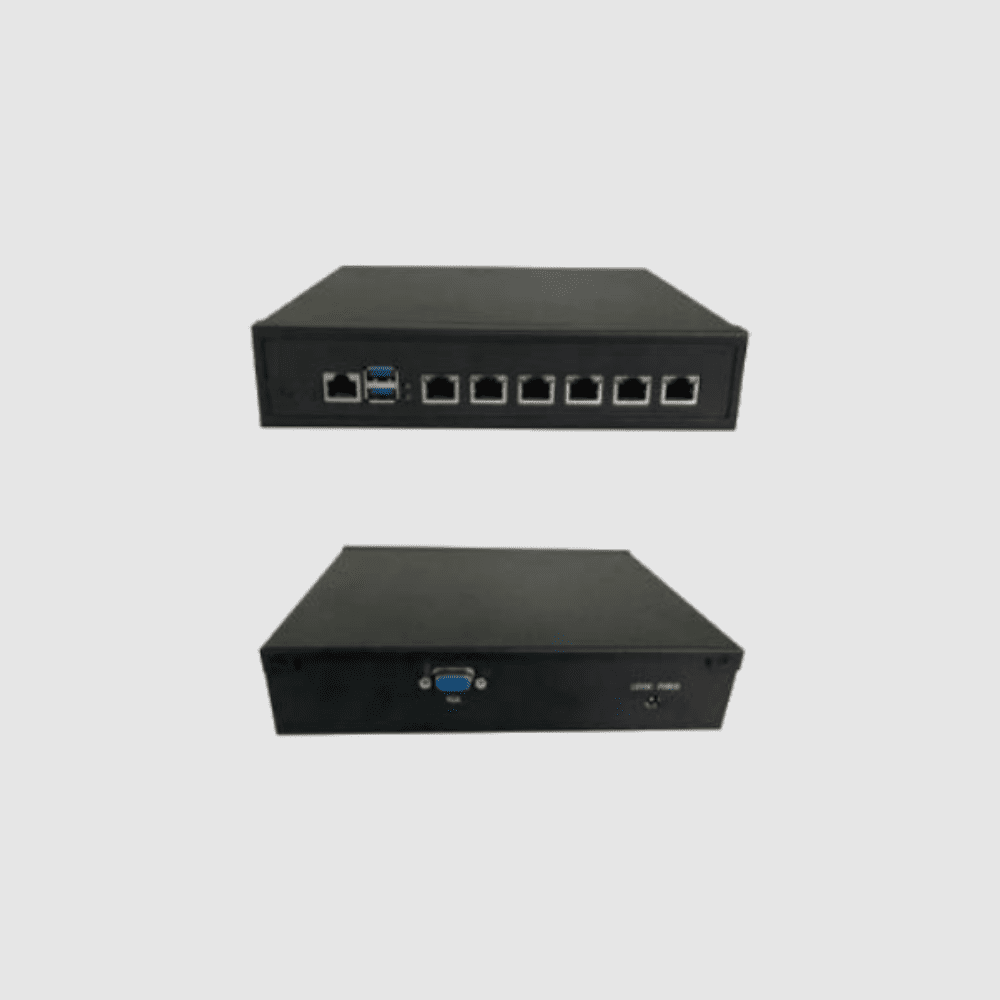

6 Port Desktop Network Appliance
Features :
- Intel J6412 Processor Quad Core/Quad threads, Turbo 2.6GHz
- 2x SODIMM DDR4 2400MHz , Max. 64GB
- 1x mSATA slot for storage
- 1x 2.5’’ HDD bay(optional)
- 1x Mini PCIe slot (USB / PCIe, PCIe signal and LAN3 colay, supporting Wi-Fi / LTE)
- 6x Intel 2.5G i225 network
- 2 x USB 3.0, 1 x VGA
- Mini Desktop Form Factor
Specification
| Model No. | PW-DNA-J6412-6P |
| Form Factor | |
| Type | Desktop |
| Platform | |
| Processor | Intel Elkhart Lake 4C4T Celeron J6412 |
| CPU Socket | Onboard |
| Chipset | SoC |
| BIOS | AMI BIOS |
| System Memory | |
| Technology | DDR4 |
| Max. Capacity | Up to 64GB |
| Socket | 2 x SODIMM |
| Networking | |
| Ethernet Ports | 6 x Intel 2.5G i225/i226 network port, support LAN/PXE function |
| Bypass | – |
| Storage | |
| HDD/SSD Support | 1 x 2.5 inch SATA HDD bay |
| CF | 1 x CF slot |
| mSATA | 1 x mSATA |
| I/O Interface | |
| Reset Button | 1 x Reset Button |
| LED | 1 x Power LED (Green), 1 x HDD Active (Red) |
| Power Button | 1 x Power Button |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | – |
| Display | 1 x VGA |
| Power Input | 60W, 12V DC-in power connector |
| Expansion | |
| mPCIe | 1 x Mini PCIe (Supports LTE) |
| Miscellaneous | |
| Watchdog | 0-255S, system reset |
| Internal RTC with Li Battery | Yes |
| TPM | – |
| Cooling | |
| Processor | 1 x 4-pin CPU smart fan connector |
| Environmental Parameters | |
| Temperature | -20°C~60°C (Operating) / -20°C~70°C (Storage) |
| Humidity | 5~90% non-condensing |
| System Dimensions | |
| (WxHxD) | 215 x 185 x 45 mm |
| Weight | 1.5 kg |
| Package (WxHxD) | 265 x 235 x 80 mm |
| Power | |
| Type/Watts | 60W Power Adapter |
| Input | 90~264V @ 47~63Hz |
| Approvals & Compliance | |
| Certification | Designed for CE, FCC, RoHS |
Frequently Asked Questions
PW-DNA-J6412-6P uses the more powerful Intel Celeron J6412 (4C/4T, Turbo 2.6GHz) and supports up to 64GB DDR4, compared to the N100's 12W SoC and 16GB memory ceiling making it suited to heavier SD-WAN and firewall workloads.
Up to 64GB DDR4 across two SO-DIMM slots.
Yes, via a Mini-PCIe slot that supports Wi-Fi and LTE modules.
Yes, It's higher-performance Celeron J6412 CPU, 6 x 2.5GbE ports, and expanded memory make it suitable for mid-size branch and enterprise firewall/VPN deployments.
