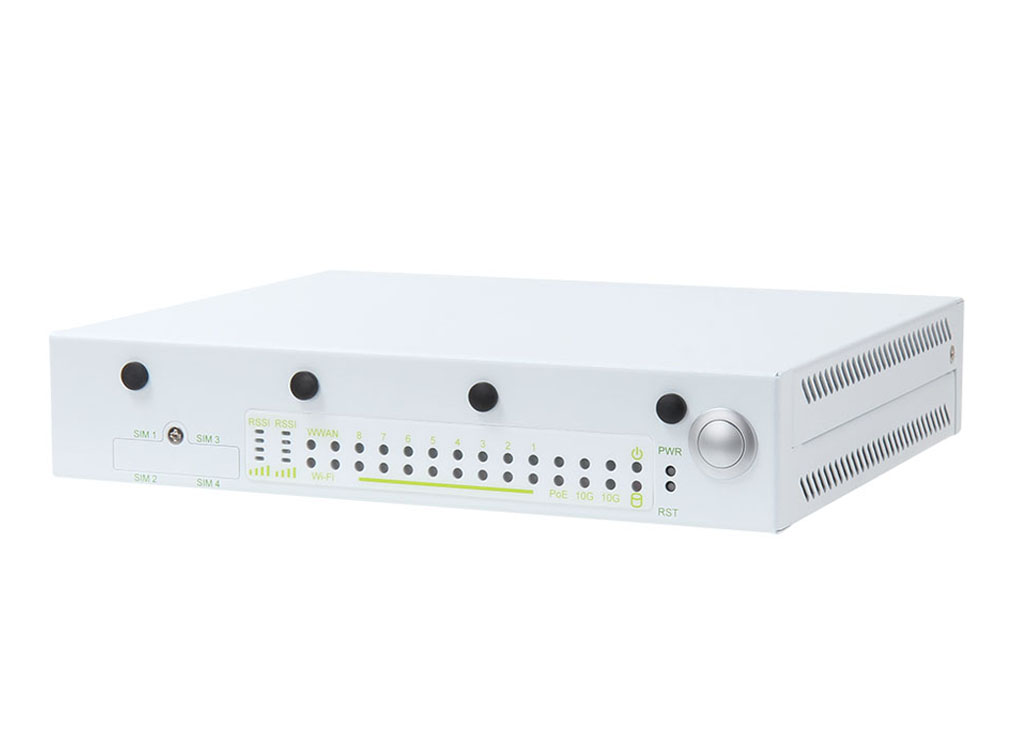

ANS-9A44F/42F

ANS-9A44F/42F, Intel Atom® C3758R (8C) / C3558R(4C) processor, up to 2-SFP+, 2-GbE, 2-GbE PoE+, and 4-Combo ports, suitable for SDN (SD-WAN) with 5G and Wi-Fi 6 deployment

Features :

Video

NEWS@Portwell: ANS-9A44F/9A42F – Advanced Network Solution

Portwell launches ANS-9A44F/42F, compact desktop network security appliances integrating Intel® QAT and DPDK, design ready for 5G and Wi-Fi 6.

ANS-9A44F/42F Press Release: https://www.portwell.in/portwell-expands-its-family-of-ans-compact-desktop-network-security-appliances-for-sd-wan-applications/

Specification

Model
ANS-9A42F
ANS-9A44F
General
Processor
Intel® Atom® Refresh C3558R(4C)
Intel® Atom® Refresh C3758R(8C)
BIOS
AMI
Memory
2 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 32GB
Ethernet
2x SFP+ (From Intel processor)
2x GbE RJ45 (Intel I211), 2x GbE RJ45 PoE+ (Intel I211)
4x Combo Ports(Marvell 88E1543): 2x GbE RJ45 + 2x SFP
Expansion
2 x M.2 Key-E slot with PCIe and USB2.0 signals
2 x M.2 Key-B slot with PCIe and USB3.0 signals
1x PCIex 4 Slot

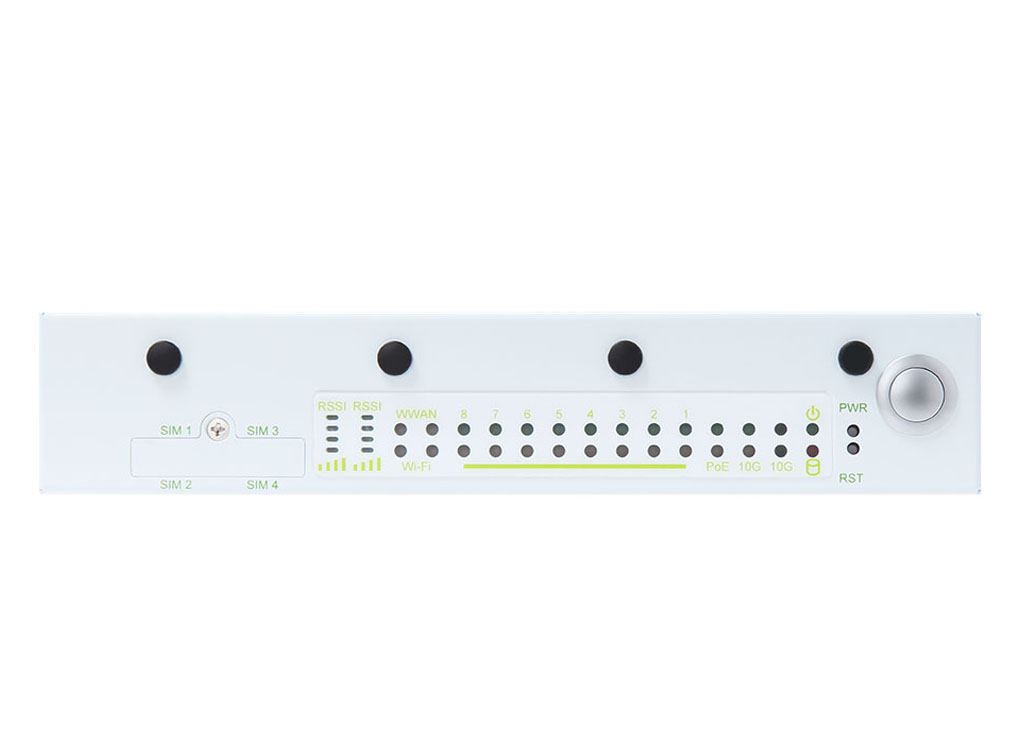

4 x SIM slots
Security
TPM 2.0

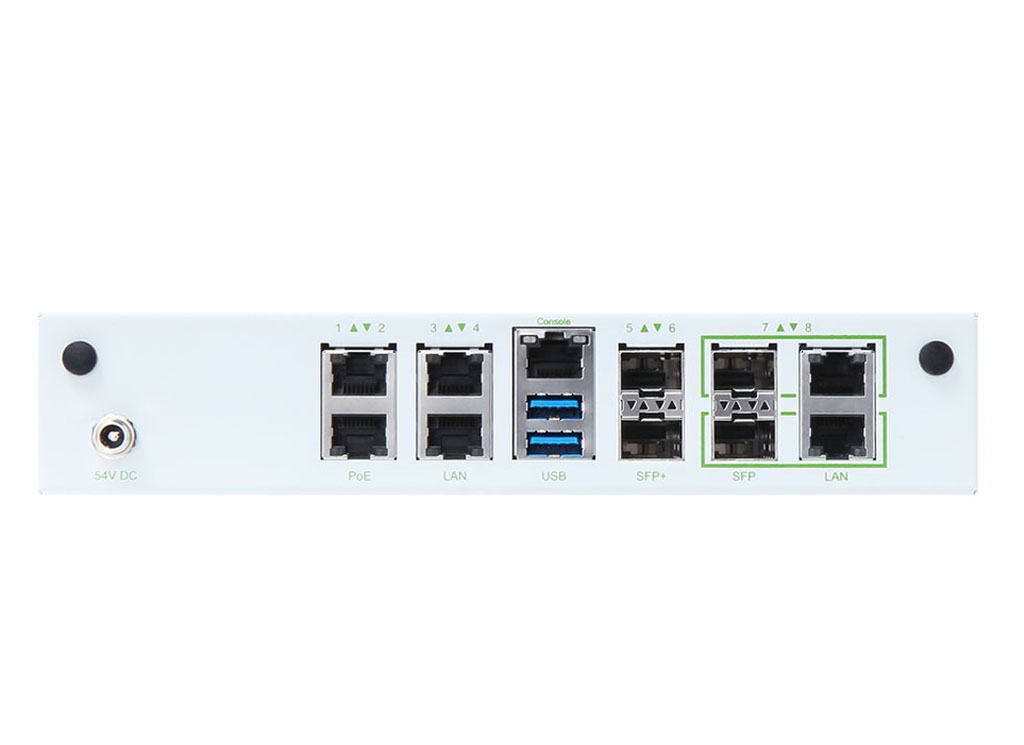

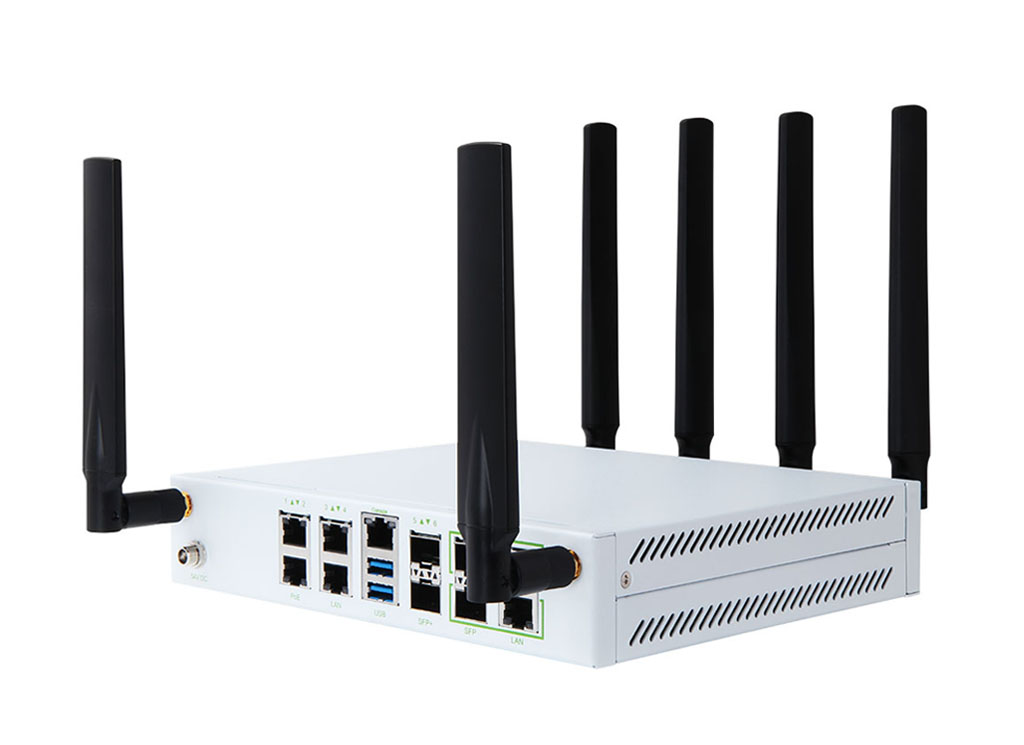

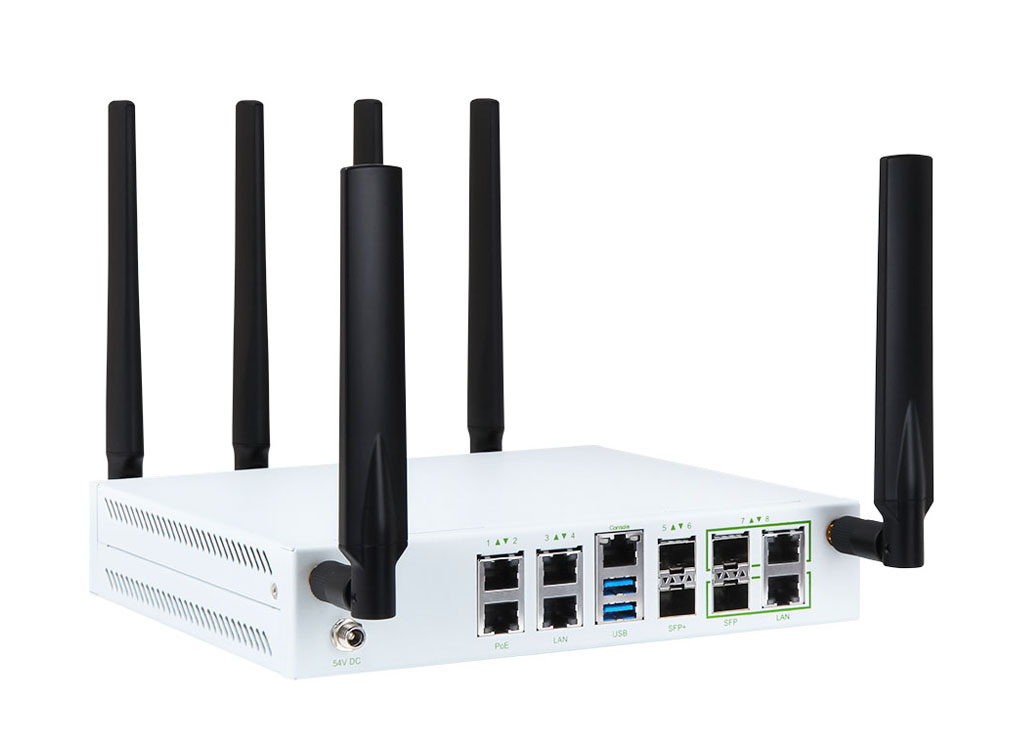

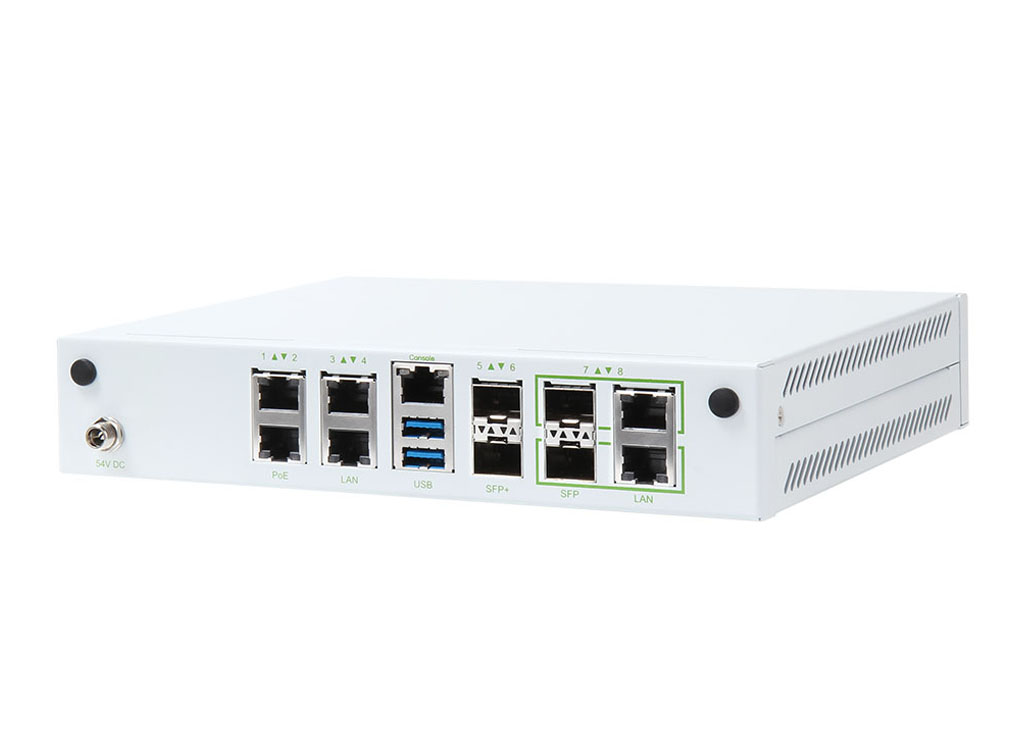

I/O Interface
Console
1 x RJ45
USB
2 x USB 3.0
Ethernet
2x SFP+, 2x RJ45 GbE, 2x GbE RJ45 PoE+, 4x Combo Ports(2x GbE RJ45 + 2x SFP)

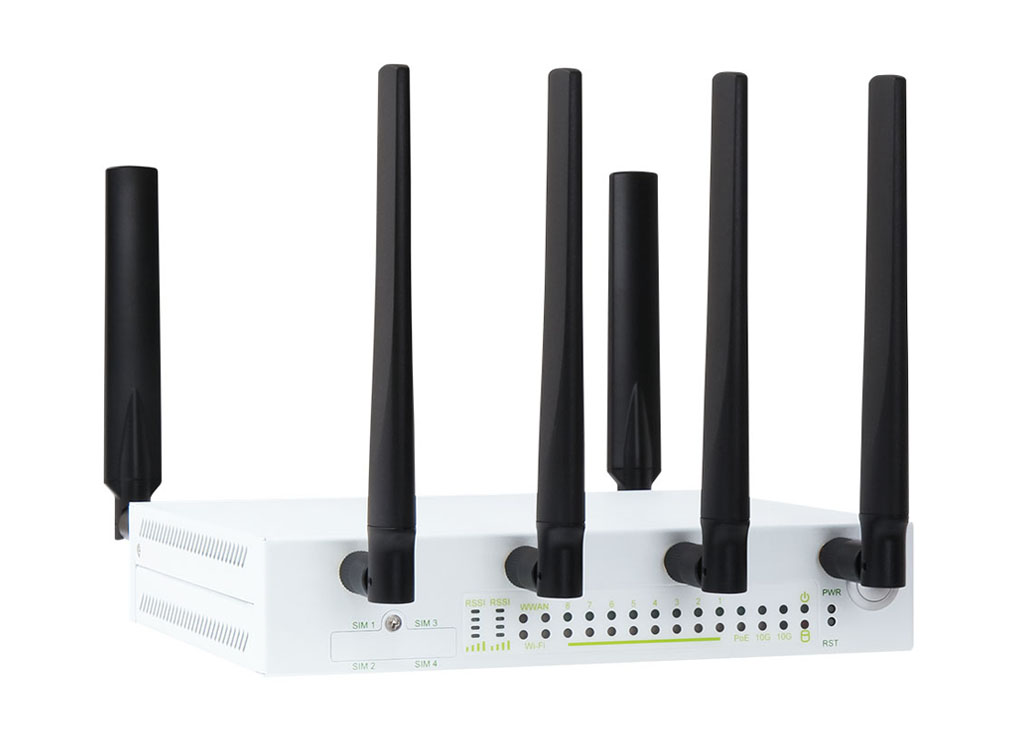

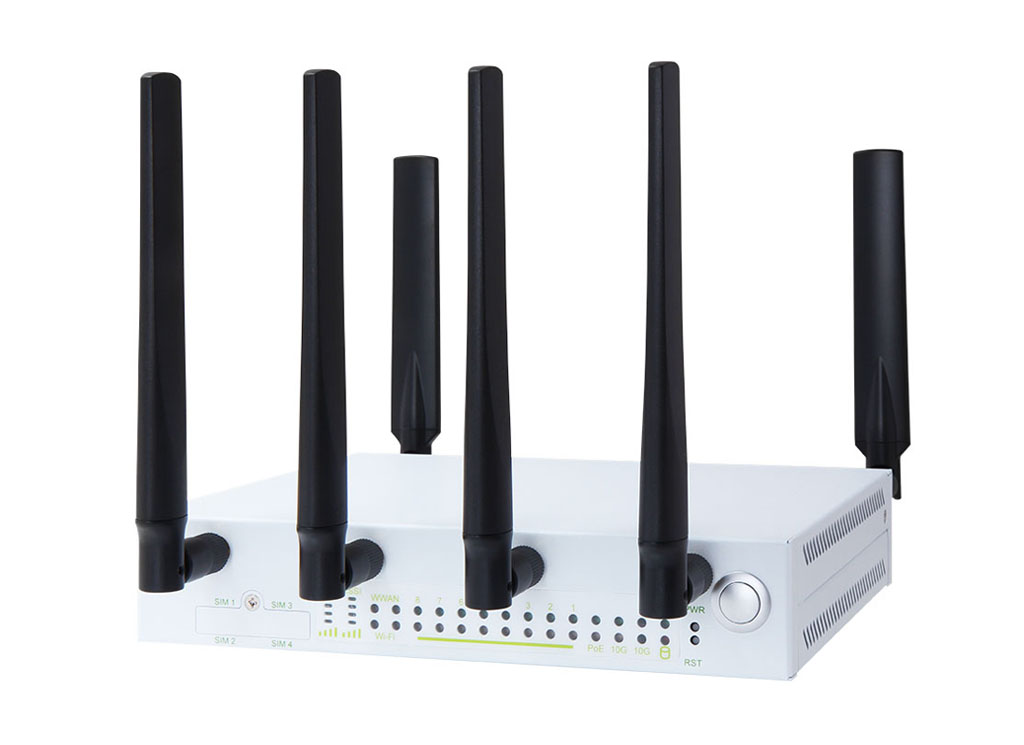

Antenna
6 x SMA Antenna holes for WiFi or LTE/5G module
Dimension
215 (W) X 180 (D) X 42 (H) mm
Weight
3.5Kg
Power
System
120W Power Adapter, 110-220V AC input, 54V DC output
Environmental
OS Temperature
0°C ~ 40°C, 10 ~ 90% RH
Storage Temp.
-10°C ~ 70°C, 10 ~ 95% RH@55°C
Certification
CE/FCC Class A, LVD

Ordering Guide

AS1-3322
(R).ANS-9A44F. C3758R 8-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port.
AS1-3323
(R).ANS-9A42F. C3558R 4-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port.
