Desktop Network Appliance - ANS-9142/41
ANS-9142 series Network security appliance with Intel® Denverton C3436L (4C) / C3338R(2C) processor, up to 8x GbE, suitable for SDN (SD-WAN) with 5G and Wi-Fi 6 deployment.
Features :
- Intel Atom® C3436L(4C) / C3338R(2C) Processor (Denverton)

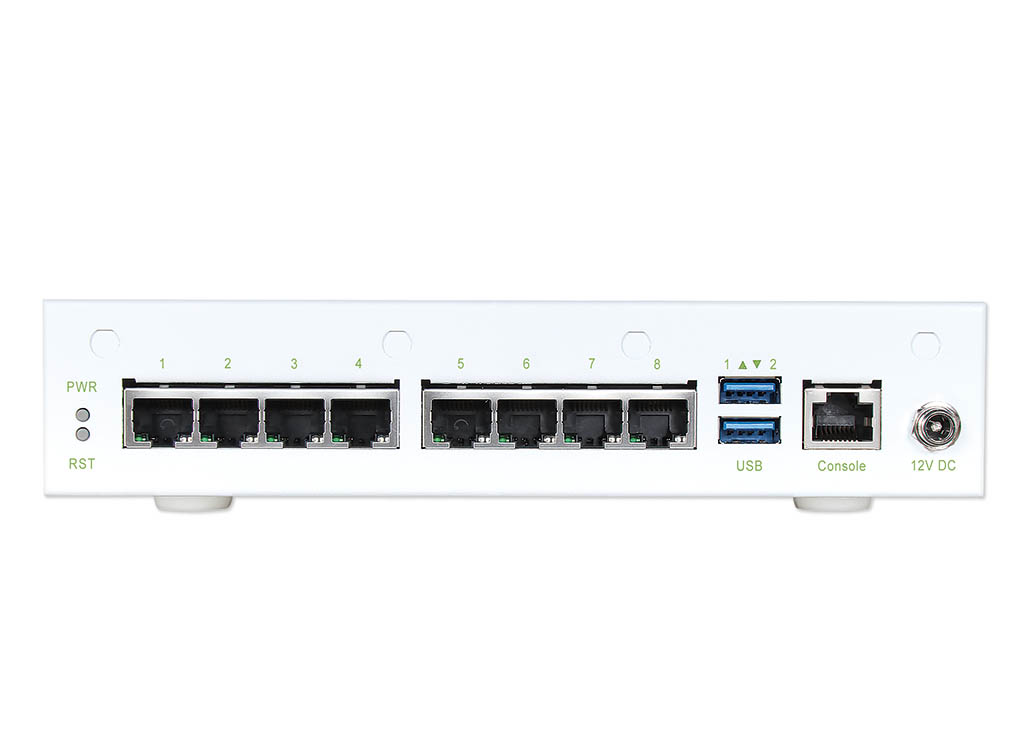

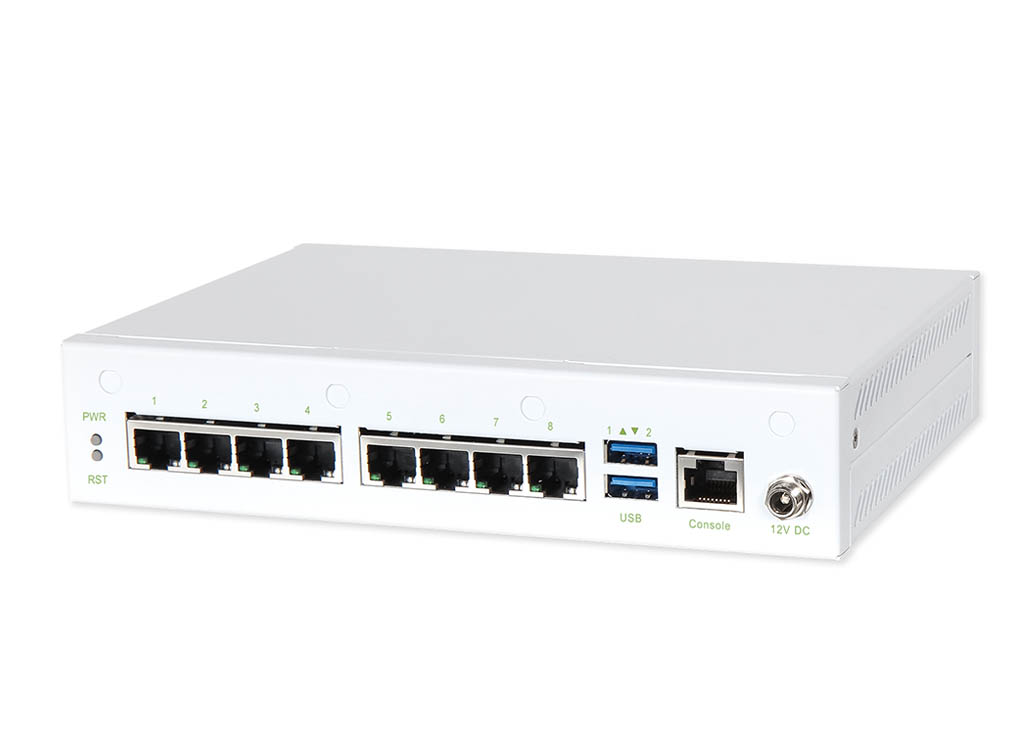

- 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
- 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
- 1x TPM2.0(on-board)
- 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
Specification
|
Model |
ANS-8A62 |
ANS-8A62P |
||||
|
General |
||||||
|
Processor |
Intel® Denverton C3436L(4C) |
Intel® Denverton C3338R(2C) |
||||
|
BIOS |
AMI UEFI BIOS |
|||||
|
Memory |
1 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 32GB |
|||||
|
Ethernet |
eMMC 5.0 16GB (Optional) 1x SATA III port for SATADOM or M.2 Key-M storage |
|||||
|
Expansion |

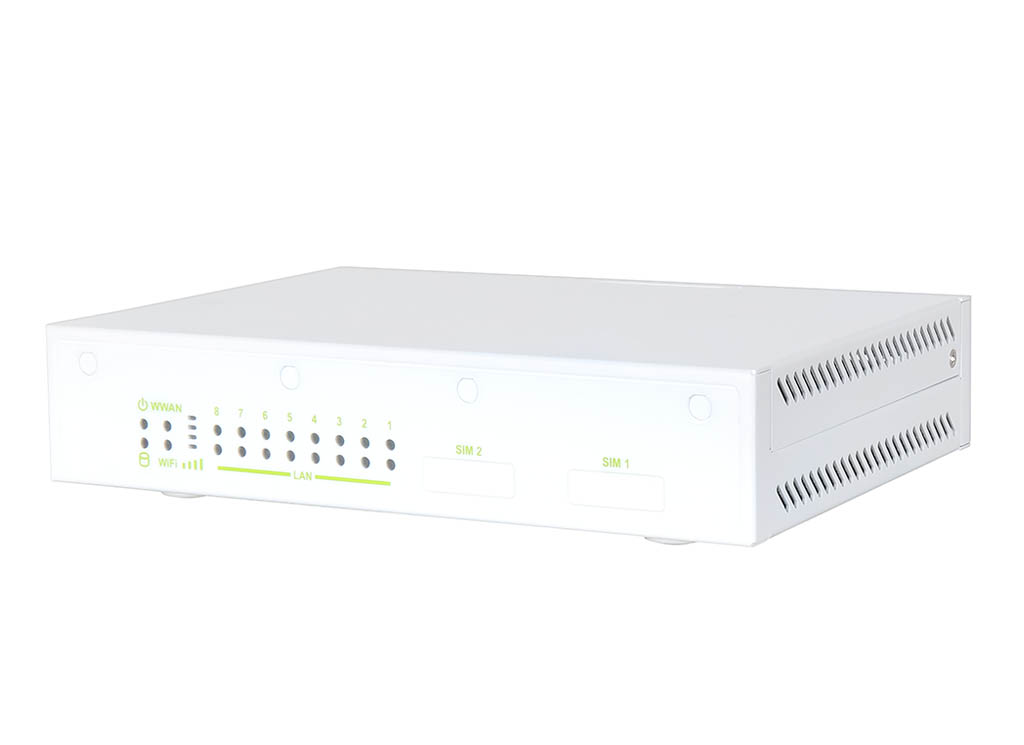

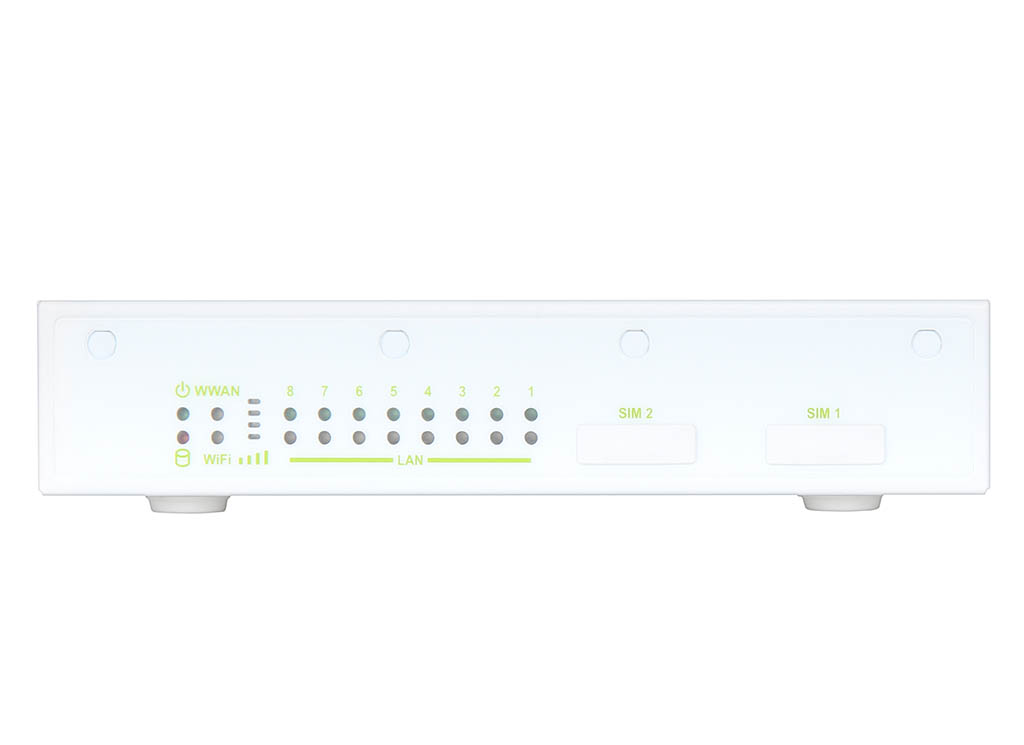

1x M.2 Key-E slot with PCIe and USB2.0 signals 1x M.2 Key-B slot with PCIe and USB3.0 signals 2x SIM slots |
|||||
|
Security |
TPM 2.0 |
|||||
|
I/O Interface |
||||||
|
Console |
1 x RJ45 |
|||||
|
USB |
2 x USB 3.0 |
|||||
|
Ethernet |
4x GbE RJ45 (Intel I211), 4x GbE RJ45 (Marvell 88E1543) |
|||||
|
Other |

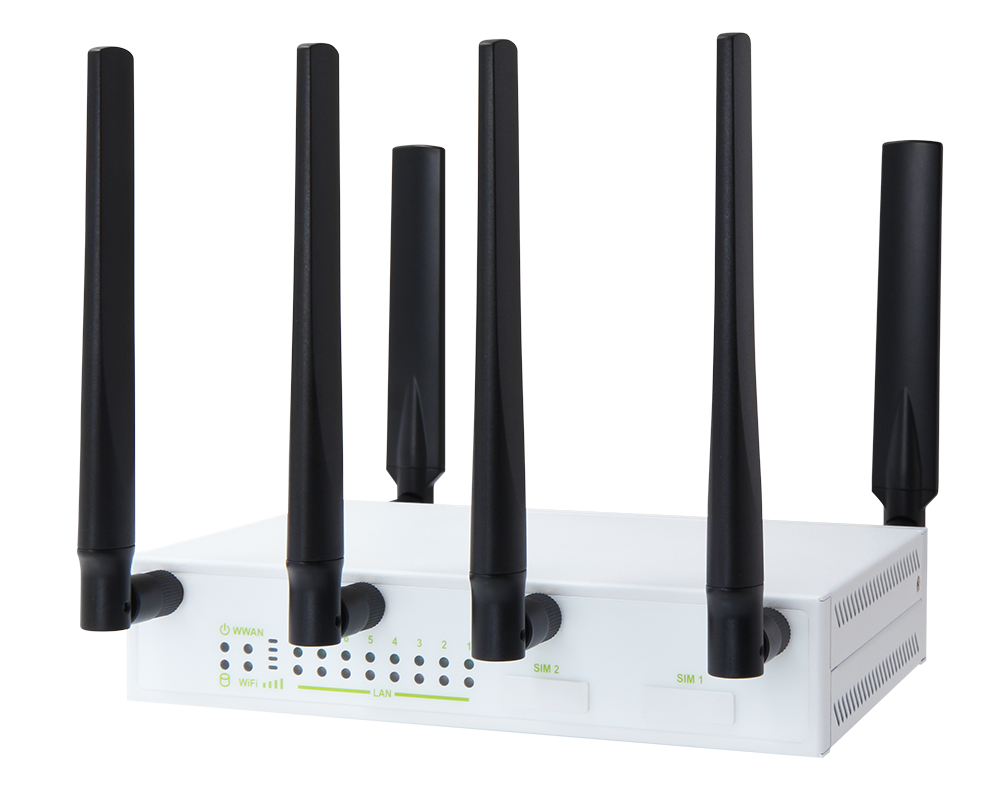

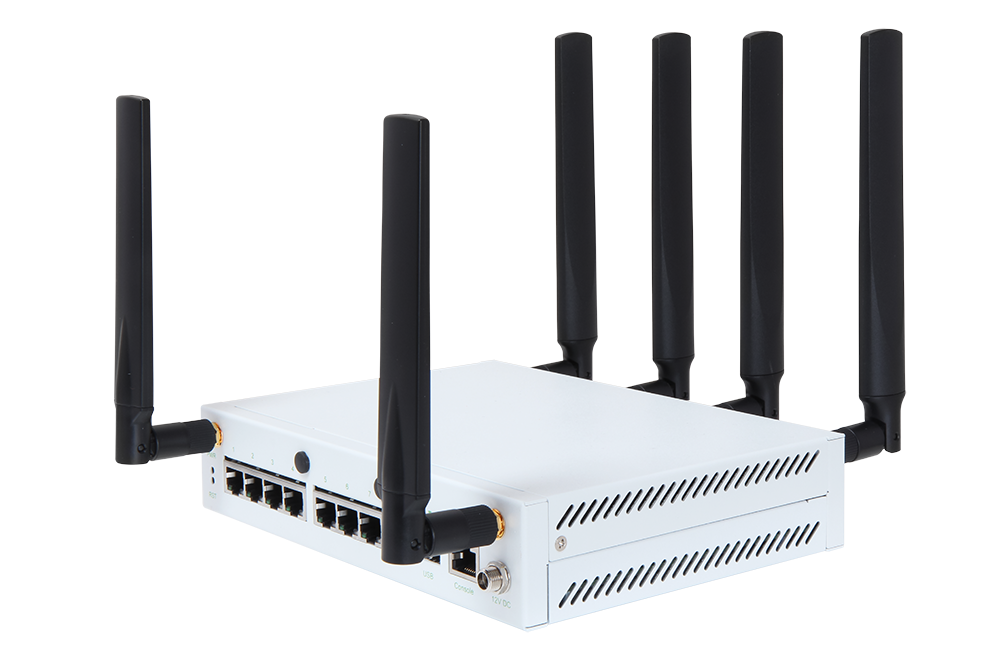

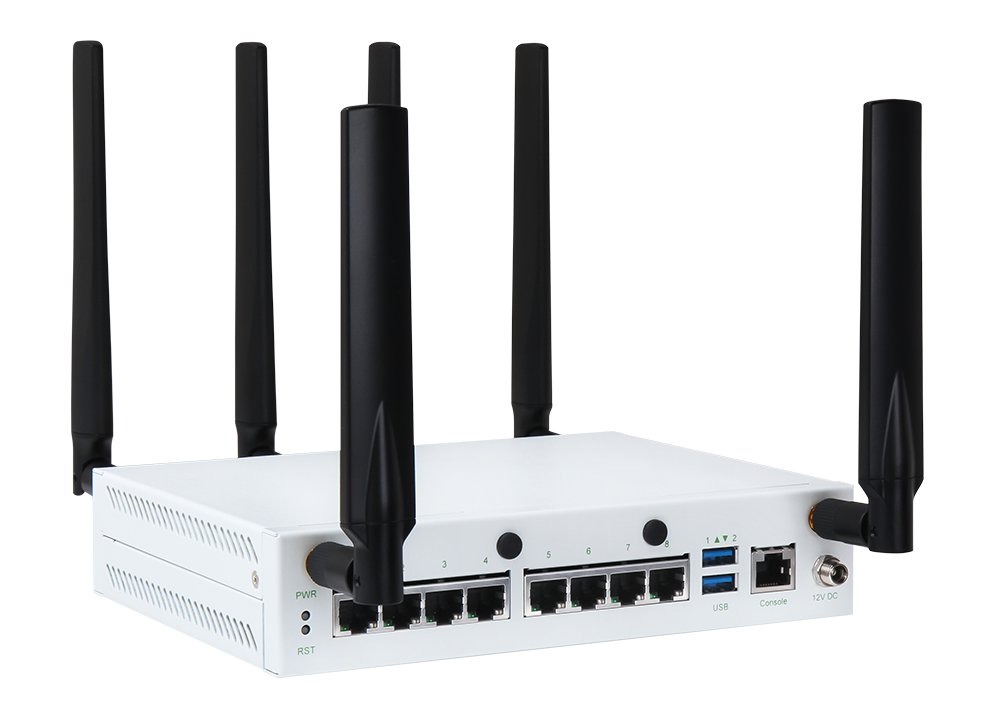

8x SMA Antenna holes for WiFi or LTE/5G module |
|||||
|
System |
65W Power Adapter, 110-220V AC input, 12V DC output |
|||||
|
Mechanical |
||||||
|
Dimension |
203 (W) x 150 (D) x 42 (H) mm |
|||||
|
Mounting |
Desk, Wall mount |
|||||
|
Environmental |
||||||
|
Operating Temperature |
0°C ~ 40°C |
|||||
|
Storage Temp. |
-10°C ~ 70°C |
|||||
|
Relative Humidity Certification |
10% ~ 90%@40°C, non-condensing CE, FCC, LVD |
|||||
Ordering Guide
|
AS1-3321 |
(R). ANS-9142. C3436L 4-Core 16GB eMMC, 8x GbE LAN |
|
AS1-3320 |
(R).ANS-9141, C3338R 2-Core 16GB eMMC, 8x GbE LAN |
