IRC-308

IRC-308

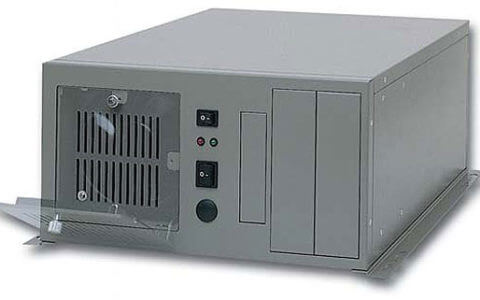

8-slot full-sized industrial node chassis (Shoe-box)

Features :

Specification

Construction
Heavy-duty steel
Drive Bay
External: 5.25” x2 + 3.5” FDD x1
Internal
3.5” HDD x1
Cooling Fan
One 12 cm ball-bearing fan
Indicator
Power on/off x1, HDD x1
Switch
Power on/off x1, System reset x1
Air Filter
One replaceable air filter at the front door
Speaker
One 8Ω speaker
Connector
One 5-pin AT K/B connector with a cap on the front panel
Standard Color
Beige, Black
Dimension
330(W) x 408(D) x 172(H) mm; 13”(W) x 16.1”(D) x 6.8”(H)
Weight
9 kg (19.8 lb); Gross: 10 kg (22 lb)
Backplane
PBP-08I: 8-slot ISA backplane PBP-084: 8-slot (4xPCI) PICMG backplane PBP-083: 8-slot (3xPCI) PICMG backplane
Ordering Guide
IRC-308-08P4-D3501P
8-slot full-sized industrial node chassis with
8-slot (4xPCI) PICMG backplane and 350W
Active PFC power supply
IRC-308-08P4-330X
8-slot full-sized industrial node chassis with
8-slot(4xPCI) PICMG backplane and 330W
ATX power supply
IRC-308-08P3-330X
8-slot full-sized industrial node chassis with
8-slot (3xPCI) PICMG backplane and 330W
power supply
