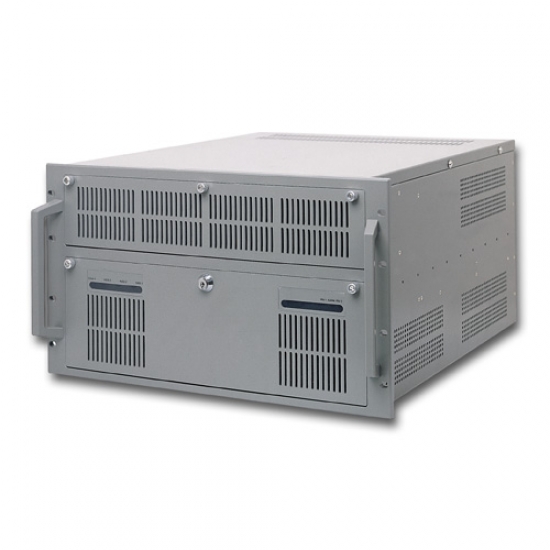

IRC-860
19″ 6U Rackmount CTI chassis
Features :
- 4 x 5.25″ + 2 x 3.5″
- Three 12 cm ball-bearing cooling fans provide better ventilation for better system reliability
- Detachable card cage for ease of installation and maintenance
- Modularized function panel for quad systems
- Single PS/2 power supply and dual mini-redundant 460W + 460W redundant power supply installable
- Replaceable modularized back panel for 20-slot ISA/PICMG backplane or ATX M/B
Specification
|
Construction |
Heavy-duty steel with aluminum front panel |
|
Drive Bay |
A type: 5.25″x2 + 3.5″ x6 B type: 5.25″x4 + 3.5″ x2 |
|
Card Retainer |
Two locations for one card retainer |
|
Cooling Fan |
Three 12cm dual ball bearing fans |
|
Indicator |
HDD x4, Power fail x1, PSU1 x1, PSU x2
|
|
Switch |
Power on/off x1, System reset x4, K/B lock x4, PSU fault alarm reset x1 |
|
Air Filter |
One replaceable air filter for boards and two for drives |
|
Car Cage |
Removable card cage for ease of installation |
|
Standard Color |
Dark gray, Black |
|
Dimension |
482(W) x 495.3(D) x 266(H) mm; 19”(W) x 19.5”(D) x 10.5”(H) |
|
Weight |
Net: 22 kg (48.4 lb); Gross: 24 kg (52.8 lb) |
|
Backplane |
PBP-19AI: 19-slot (18xPCI) active PICMG backplane PBP-19AC: 19-slot (12xPCI) active PICMG backplane PBP-19P4: 19-slot (4xPCI) PICMG backplane PBP-18D4: 18-slot dual-system PICMG backplane ATX M/B installable |
|
Ordering Guide |
|
|
IRC-860B-19AC-450XA |
19″ 4U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 450W Autorange ATX power supply |
|
IRC-860B-19AC-3005 |
19″ 4U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 300W redundant ATX power supply |
|
IRC-860B-19P4-4005 |
19″ 4U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 400W redundant ATX power supply |
|
IRC-860B-MX-450AX |
19″ 4U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives for ATX/MB with 400W Auto-renge ATX power supply |
