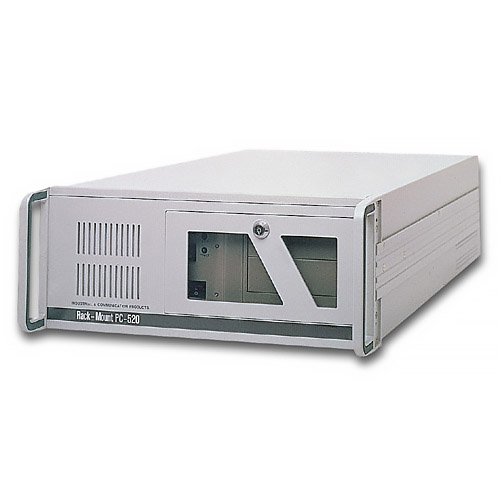

RPC-520
19″ 4U 20-slot industrial rack-mount P4 chassis
Features :
- 19″ 4U rack-mount chassis meets EIA RS-310C industrial standard
- Rugged construction suitable for harsh industrial environment
- Lockable front door for dust-proof and running security
- One power on/off switch with LED indicators and one reset switch inside the lockable door
- Replaceable air filter for easy cleaning
- PS/2 redundant power supply installable
- Three cooling fans and easy-to-install drive bracket with shock-resistant cushion and well-conductive rubber
- Removable disk drive bracket for 5 drives (3.5″x3, 5.25″x2)
- Support 20-slot ISA, 19-slot PICMG and multiple-system backplanes
Specification
|
Construction |
Heavy-duty steel with aluminum front panel |
|
Drive Bay |
3.5 “x3 + 5.25” x2
|
|
Air Filter |
One replaceable air filter |
|
Cooling Fan |
Three cooling fans behind the fan filter panel and one within the power supply 12cm dual ball bearing fans |
|
Indicator |
Power on/off x1, HDD x1 |
|
Switch |
Power on/off x1, System reset x1, K/B lock x1 |
|
Standard Color |
Light gray |
|
Dimension |
482(W) x 638.3(D) x 177(H) mm; 19”(W) x 25.1”(D) x 7”(H) |
|
Weight |
Net: 23 kg (51.1 lb); Gross: 25 kg (55.6 lb) |
|
Backplane |
PBP-20I: 20-slot ISA backplane PBP-19AI: 19-slot (18xPCI) active PICMG backplane PBP-19AC: 19-slot (12xPCI) active PICMG backplane PBP-19P4: 19-slot (4xPCI) PICMG backplane PBP-18D4: 18-slot dual-system PICMG backplane |
|
Ordering Guide |
|
|
RPC-520N-19AC-450X |
19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply |
|
RPC-520N-19AC-460AX |
19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W ATX power supply |
|
RPC-520N-19P4-450AX |
19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply |
|
RPC-520N-19P4-460AX |
19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W PFC ATX power supply |
