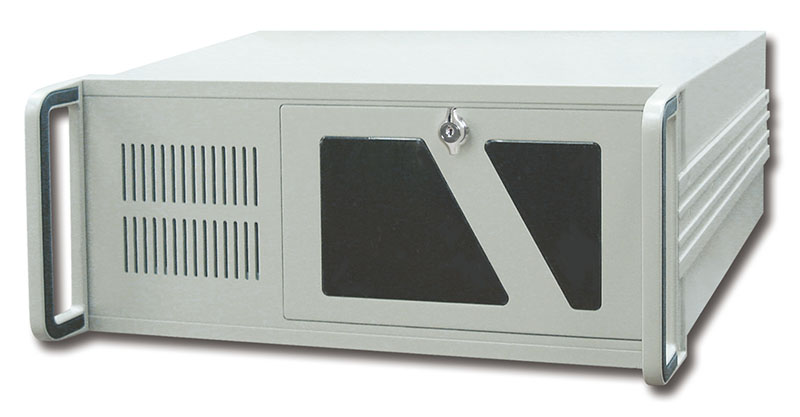

RPC-500L
19″ 4U industrial rack-mount chassis
Features :
- 5.25” x3 + 3.5” x1 drive bays for RAID 0, 1, 5 & CD-ROM
- Two ball-bearing cooling fans for better ventilation
- Traditional rack-mount handles
- Two card retainer positions
- Two USB ports on the control panel
- One modularized function panel for single (default) and dual (optional) systems
- ATX M/B applicable, especially for big-AT sized M/B (RPC-500L-MX)
- PS/2 redundant power supply installable
Description
RPC-500NC/L is designed for PICMG SBC/ SHB and RPC-500NC/L-MX for ATX mother boards which has maximum 14-slot expansion for PICMG backplane. It also supports PSU in PS/2 form factor that makes RPC- 500NC/L the best selling 4U Rack-mount chassis for CTI, Industrial, Science, Engineering and Server applications.
Specification
|
TYPE |
4U |
|
MODEL |
RPC-500NC/L |
|
SLOT |
14 |
|
Dimension |
482(W) x 515(D) x 177(H) mm; 19”(W) x 20.3”(D) x 7”(H) |
|
Weight |
Net: 17.5 kg (38.6 lb); Gross: 18.5 kg (40.8 lb) |
|
ORDERING GUIDE |
RPC-500NC RPC-500L RPC-500NC/B |
|
BackPlane |
|||||||
|
BP MODEL |
PBPE-14AD64 |
PBPE-13A8 |
PBPE-13A4 |
PBPE-12AA64 |
PBPE-12A9 |
PBPE-12P4 |
PBPE-11A3 |
|
PICMG |
1.3 |
1.3 |
1.3 |
1.3 |
1.3 |
1.3 |
1.3 |
|
PCIe |
2 |
4 |
8 |
1 |
2 |
8 |
8 |
|
PCI/PCI-X |
3/8 |
8/0 |
4/0 |
2/8 |
9/0 |
4/0 |
3/0 |
|
Ordering Guide |
|
|
RPC-500L |
19” 4U rack-mount chassis for PICMG backplane (Long size) |
|
RPC-500L-MX |
19” 4U rack-mount chassis for server board (Long size) |
