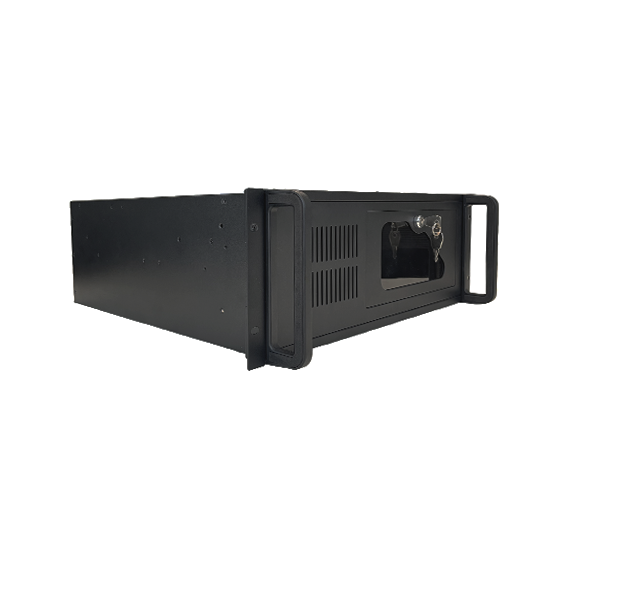

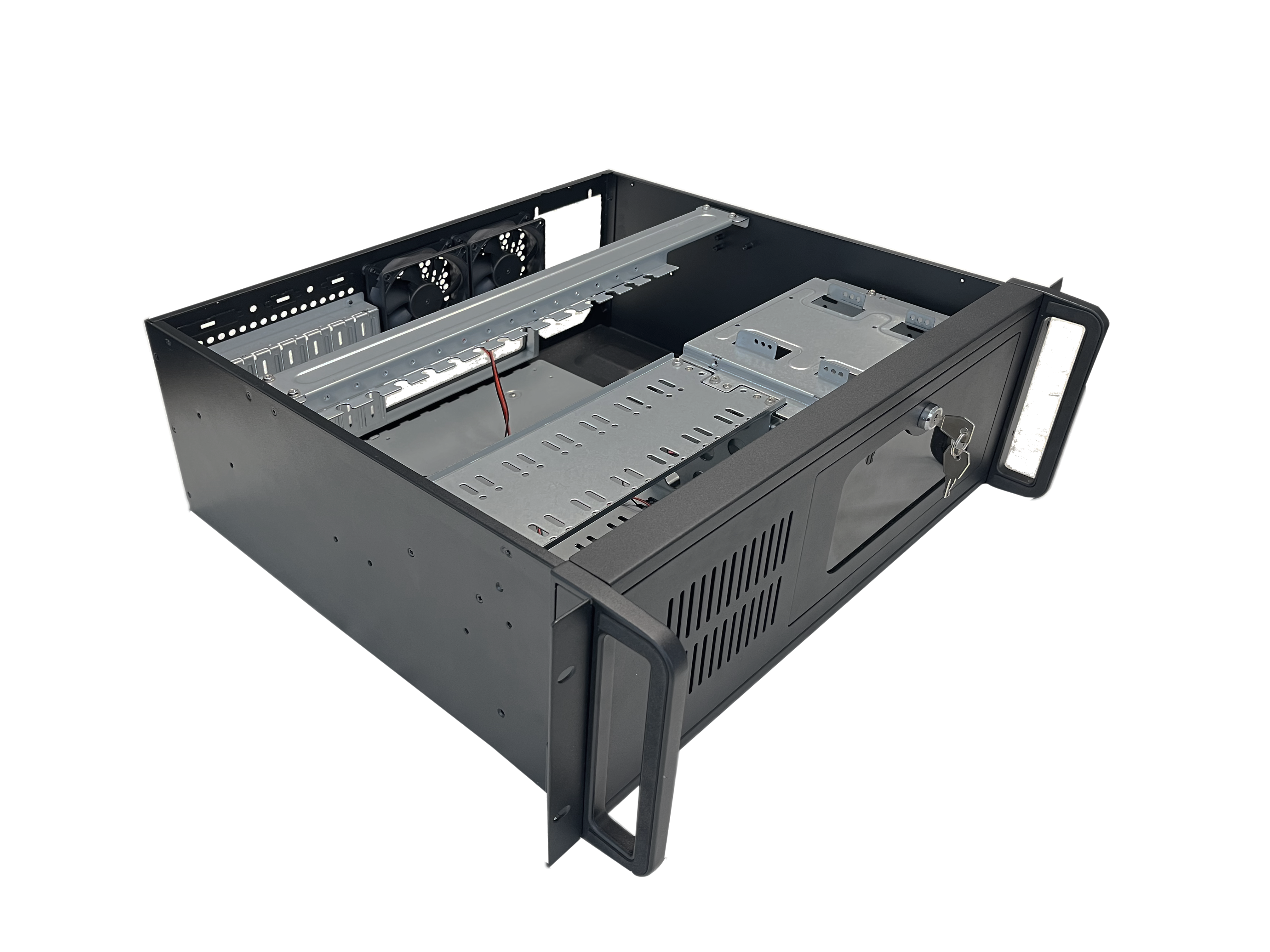

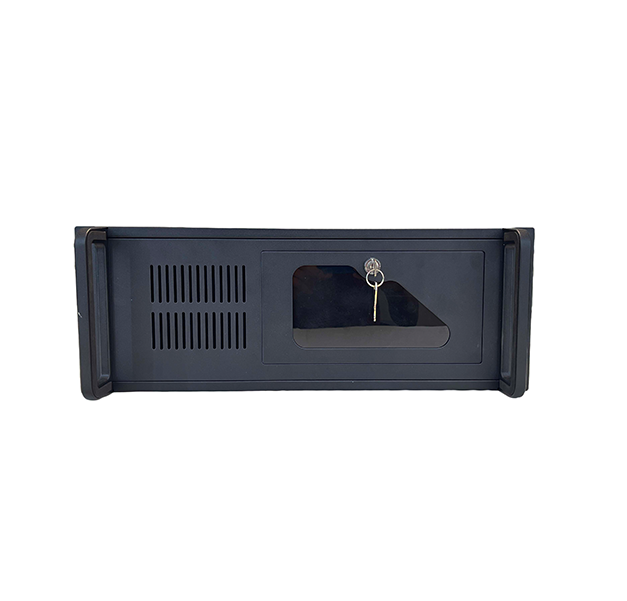

PIRON-4508
19″ 4U Industrial Economical rack-mount motherboard version chassis
Features :
- 8x 3.5" HDD Bays for RAID, 1x 3.5" FDD Bay and 2x5.25" DVD/CD-ROM

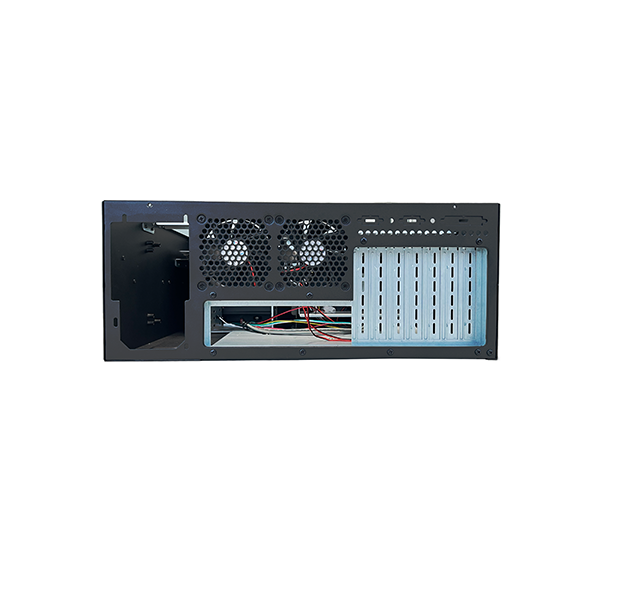

- Two 80mm fans on rear panel
- One 120mm Fan on front
- Two USB ports on the control panel
- Standard PS2 power supply.
- ATX, Micro-ATX and Mini ITX Motherboard applicable
Description
PIRON-4508 is designed for only for motherboard version ATX/ Micro-ATX/ Mini-ITX mother boards which has maximum 7-slot expansions PCI/ PCI-Express. It also supports Standard PS/2 form factor Power supply that makes PIRON-4508 the very economical 4U Rack-mount chassis for Industrial, Science, Engineering and Server applications.
Specification
|
Type |
4U |
|
Model |
PIRON-4508 |
|
Slot |
7 Slot |
|
Dimension (WxDxH) |
427 mm x 450 mm x 177 mm |
|
Colour |
Black |
|
Power Supply |
Standard PS2 Power Supply |
|
Motherboard form factor |
ATX, Micro-ATX and Mini-ITX |
|
Connectors and LED |
2-USB 2.0, 1-Power SW + LED, 1-Reset SW 1-HDD LED, 1-KB-LK SW + LED, |
|
Ordering Guide |
|
|
PIRON-4508 |
19” 4U rack-mount chassis, MB Version-Black |
