AREMO-4185

AREMO-4185

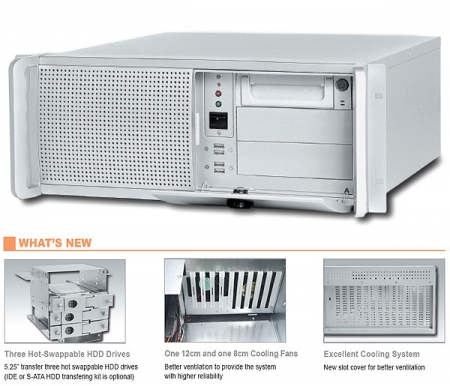

19” 4U industrial rack-mount chassis

Features :

Specification

Construction
Heavy-duty steel with aluminum front panel
Drive Bay
External: 5.25”x3
Internal: 3.5” HDD x2
Card Retainer
Three locations for one card retainer
Air Filter
One replaceable air filter
Cooling Fan
One 12cm and one 8cm ball-bearing cooling fans
Indicator
Power on/off x1, HDD x1
Switch
1x Power On/Off (with a protection cap), 1x System reset
Speaker
One 8Ω speaker
Connector
Four USB ports on the front panel
Standard Color
Silver, Black
Dimension
482(W) x 461(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H)
Weight
Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb)
Backplane
PBP-14I: 14-slot ISA backplane
PBP-14AC: 14-slot (12xPCI) active PICMG backplane
PBP-14A7: 14-slot (7xPCI) active PICMG backplane
PBP-14P4: 14-slot (4xPCI) PICMG backplane
PBP-13D4: 13-slot dual-system PICMG backplane
Ordering Guide
AREMO-4185-14P4-D3501P
19” 4U rack-mount chassis with 14-slot (4xPCI) PICMG backplane and 350W active PFC ATX power supply
AREMO-4185-14A7-D3501P
19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 350W active PFC ATX power supply
AREMO-4185-MX-D3501P
19” 4U rack-mount chassis for ATX motherboard with active 350W ATX, PFC power supply
AREMO-4185-14A7-D3202P
19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 320W active PFC redundant power supply
