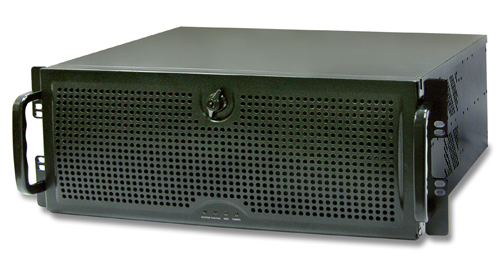

AREMO-4196
The Best Cost-Performance 19” 4U Height Intel® Desktop Mother Board Based Rack-mount Computer
Features :
- Three 5.25″ and two internal 3.5″ HDD drive bays for RAID 0, 1, 5 & CD-ROM
- Two USB ports on the front panel
- Dual 12cm ball-bearing cooling fans for better ventilation
- Two card retainer positions
- PS/2 redundant power supply installable
- ATX M/B applicable (AREMO-4196-MX)
- Easily detached and washable air filter
- Equipped with fan control card to detect fan failure
Description
AREMO-4196 and AREMO-4196-MX is 19” 4U Rack-mount chassis and designed for PICMG SBC/SHB and ATX form factor with stylish front panel design, up to 14-slot expansion for PICMG backplane. AREMO-4196 series can support PS/2 PSU, two USB interface on front panel and build with replaceable air filter. AREMO-4196 series is suitable in several vertical markets, like Factory and Server applications.
Specification
|
Construction |
Heavy-duty steel with aluminum front panel |
|
Drive Bay |
Internal: 5.25” x3, 3.5” HDD x1 Internal: 3.5” x2 |
|
Card Retainer |
Three locations for one card retainer |
|
Air Filter |
Two replaceable air filter |
|
Cooling Fan |
Two 12cm ball-bearing cooling fans |
|
Indicator |
Power on/off x1, HDD x1 |
|
Switch |
Power on/off x1, System reset x1 |
|
Speaker |
One 8Ω speaker |
|
Connector |
Two USB ports on the front panel |
|
Standard Color |
Silver, Black |
|
Dimension |
482(W) x 481(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H)
|
|
Weight |
Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb) |
|
Backplane |
PBPE-13A8:14-slot [PCIe (4), PCI (8), PCI-X (0)] active PICMG1.3 backplane PBPE-13A4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] active PICMG1.3 backplane PBPE-12A9: 14-slot [PCIe (2), PCI (9), PCI-X (0)] active PICMG1.3 backplane PBPE-12P4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] PICMG 1.3 backplane PBPE-11A3: 14-slot [PCIe (8), PCI (3), PCI-X (0)] active PICMG1.3 backplane |
|
Ordering Guide |
|
|
AREMO-4196 |
19” 4U rack-mount chassis for PICMG Version |
|
AREMO-4196/B |
19” 4U black rack-mount chassis for PICMG Version |
|
AREMO-4196-MX |
19” 4U rack-mount chassis for M/B Version |
|
AREMO-4196-MX/B |
B19” 4U black rack-mount chassis for M/B Version |
