AREMO-2175PA
19″ 2U industrial rack-mount chassis for PICMG backplane
Features :
- Two USB ports on the front panel

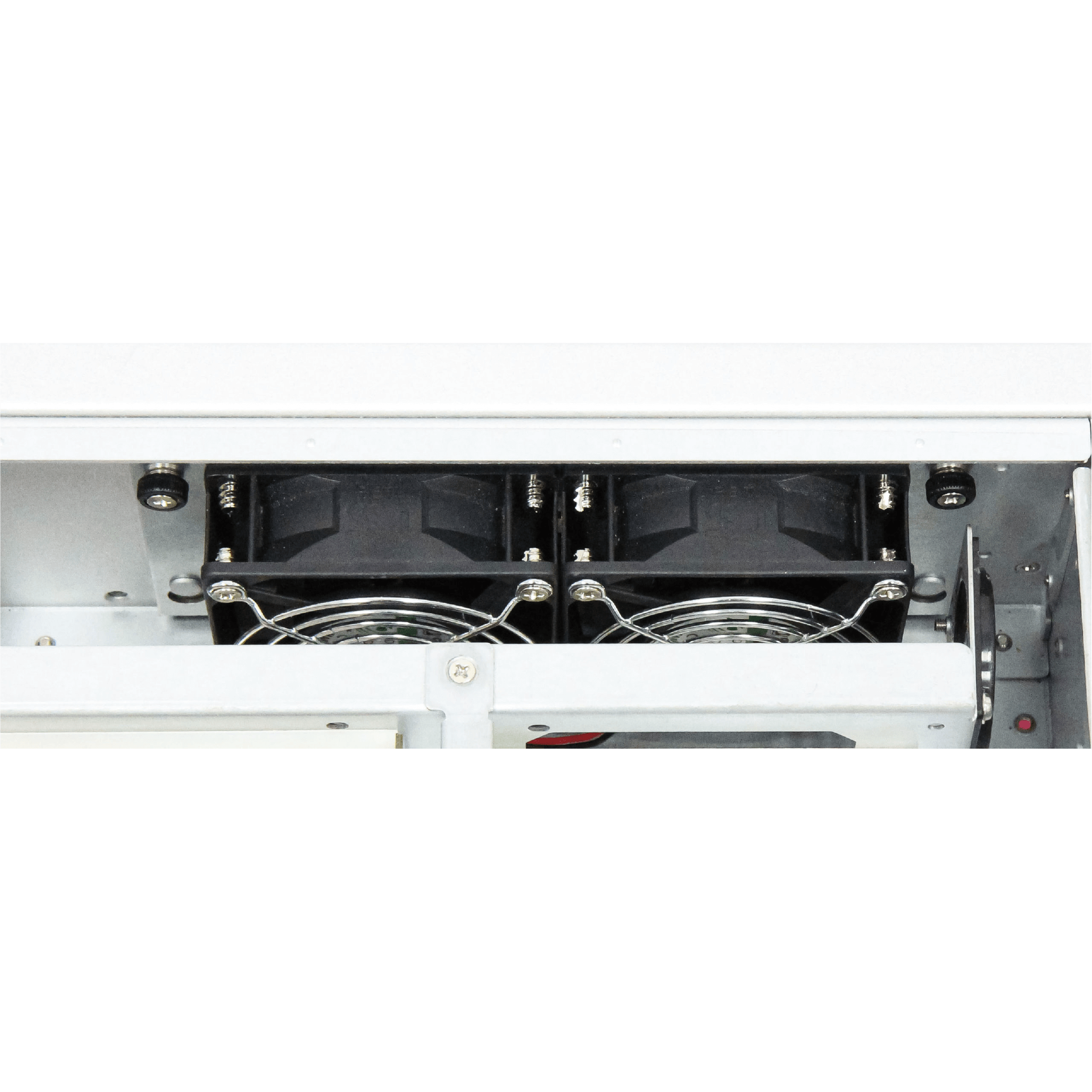

- Two 7cm ball-bearing cooling fans for better ventilation
- PS/2 or Mini-reduncant power supply installable
- One power On/Off switch with protection cap and one touch free reset for secure access
Description

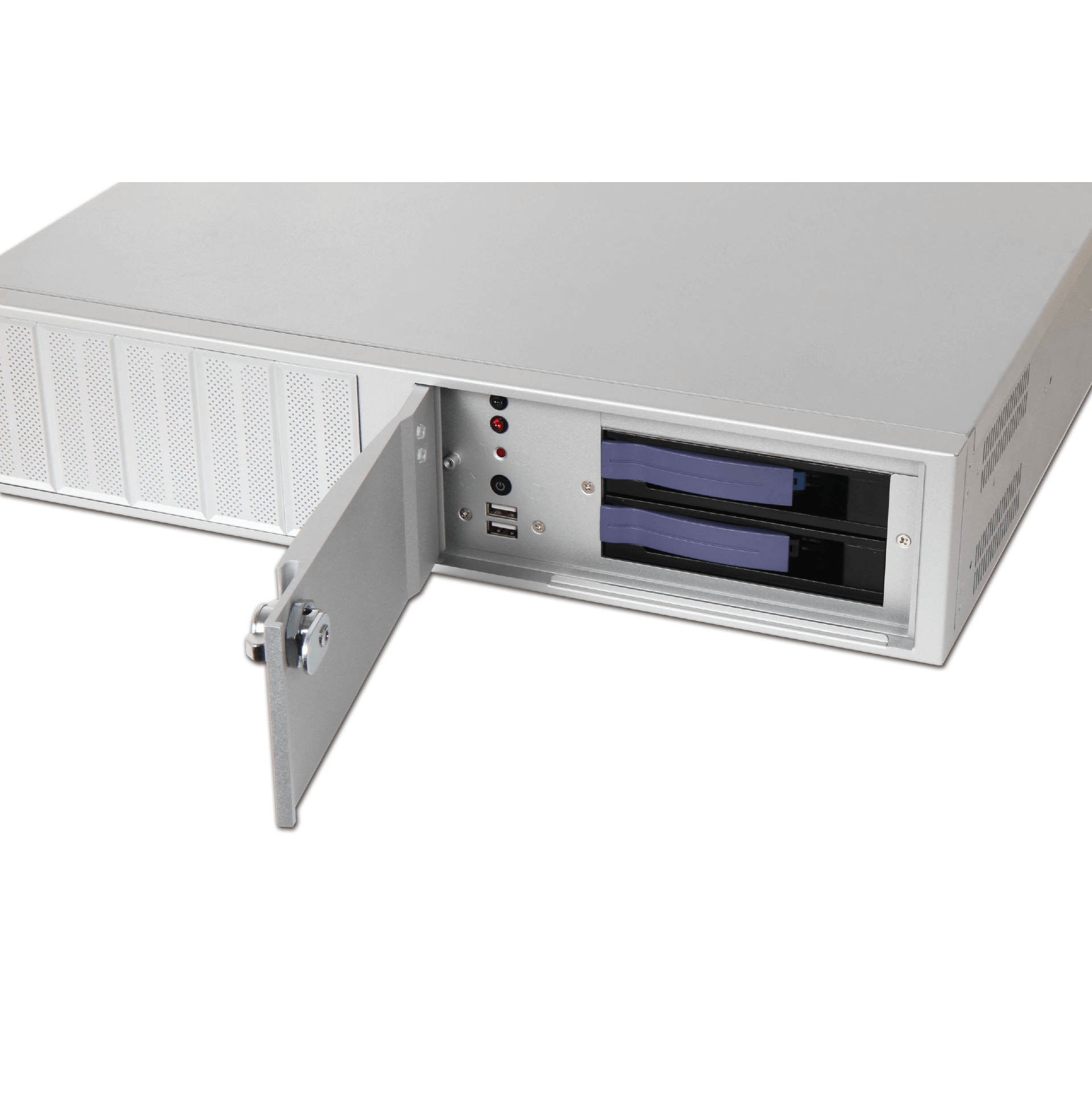

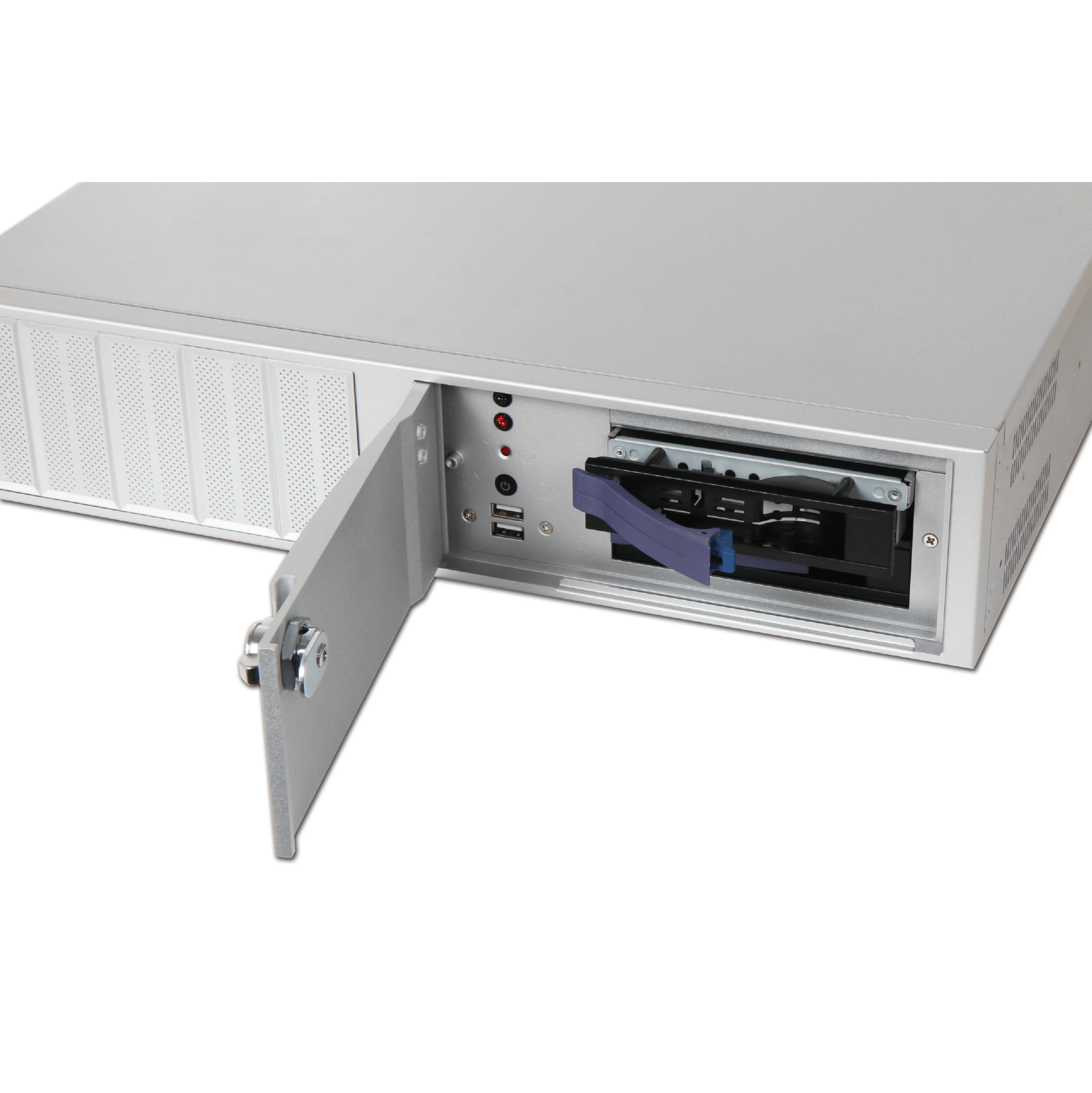

The AREMO-2175PA, 19” 2U Rack-mount, designed for PICMG 1.3 can support 6-slot backplane that also builds two hot-swap 3.5”SATA HDD driver bays and two USB interface on front panel. AREMO-2175PA can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2175PA is suitable for Factory and Server applications. One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays
Specification
|
TYPE |
2U |
|
MODEL |
AREMO-2175PA |
|
SLOT |
6 |
|
ORDERING GUIDE |
AREMO-2175PA AREMO-2175PA/B |
|
BackPlane |
|||||
|
BP MODEL |
PBPE-06V464 |
PBPE-06V3 |
PBPE-06V |
PEP-06V4 |
|
|
PICMG |
1.3 |
1.3 |
1.3 |
1.0 |
|
|
PCIe |
1 |
2 |
5 |
||
|
PCI/PCI-X |
0/4 |
3/0 |
|
4/0 |
|
|
Ordering Guide |
|
|
AREMO-2175-PA |
19” 2U rack-mount chassis for PICMG backplane |
|
AREMO-2175-PA/B |
19” 2U black rack-mount chassis for PICMG backplane |
