AREMO-2173P

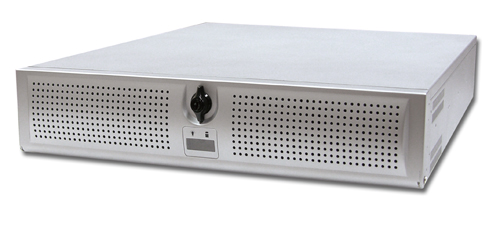

19” 2U industrial rack-mount chassis for PICMG backplane
Features :
- One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays
- Two USB ports on the front panel
- Two 7cm ball-bearing cooling fans for better ventilation
- One power On/Off switch with protection cap and one touch free reset for secure access
Description
AREMO-2173P, 19” 2U Rack-mount, designed for PICMG 1.0/1.3 can support 6-slot backplane that also builds two hot-swap 3.5” SATA HDD driver bays and two USB interface on front panel. AREMO-2173P can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2173P is suitable for Factory and Server applications.
Specification
|
Construction |
Heavy-duty steel |
|
Drive Bay |
External: 1x Slim type CD-ROM, 2x Hot-swap 3.5” HDD |
|
Air Filter |
One external replaceable air filter |
|
Cooling Fan |
Two 7cm ball-bearing fans |
|
Indicator |
1x HDD+ 1x Power On/Off |
|
Switch |
1x Power On/Off (with a protection cap), 1x System reset |
|
Speaker |
One 8Ω speaker |
|
Connector |
2x USB ports equipped on the front panel |
|
Standard Color |
Silver, Black |
|
Dimension |
482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H) |
|
Weight |
Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb) |
|
Backplane |
PBPE-06V464: 6-slot [PCIe (1), PCI (0), PCI-X (4)] PCIMG 1.3 backplane PBPE-06V3: 6-slot [PCIe (2), PCI (3), PCI-X (0)] PCIMG 1.3 backplane PBPE-06V: 6-slot [PCIe (5)] PCIMG 1.3 backplane PBPE-06V4: 6-slot [PCI (4), PCI-X (0)] PCIMG 1.0 backplane |
|
Ordering Guide |
|
|
AREMO-2173P |
19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG backplane |
|
AREMO-2173P/B |
19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.0 backplane |
|
AREMO-2173PA |
19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
|
AREMO-2173PA/B |
19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
