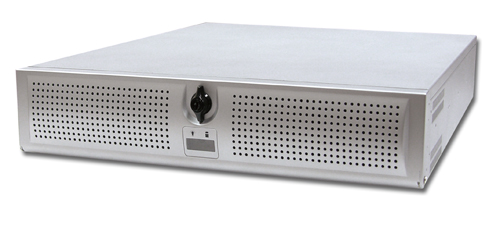

AREMO-2173MX

AREMO-2173MX

19” 2U industrial rack-mount chassis for Micro-ATX or mini-ITX mother board

Features :

Description

AREMO-2173MX, 19” 2U Rack-mount, designed for Micro-ATX and Mini-ITX can support up to 4 low profile add-on cards that also builds two hot-swap 3.5” SATA HDD driver bays and two USB interface on front panel. AREMO-2173MX can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2173MX is suitable for Factory and Server applications.

Specification

Construction
Heavy-duty steel
Drive Bay
External: 1x Slim type CD-ROM, 2x Hot-swap 3.5” HDD
Air Filter
One external replaceable air filter
Cooling Fan
Two 7cm ball-bearing fans
Indicator
1x HDD+ 1x Power On/Off
Switch
1x Power On/Off (with a protection cap), 1x System reset
Speaker
One 8Ω speaker
Connector
2x USB ports equipped on the front panel
Standard Color
Silver, Black
Dimension
482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H)
Weight
Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb)
Ordering Guide
AREMO-2173MX
19” 2U rack-mount chassis for micro-ATX or mini-TX M/B
AREMO-2173MX/B
19” 2U black rack-mount chassis for micro-ATX or mini-TX M/B
