PRC-1194

PRC-1194

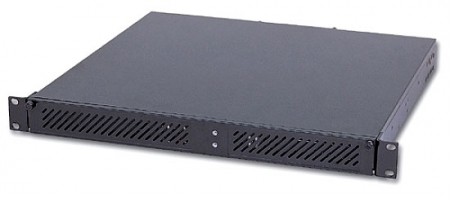

19″ 1U Height industrial rack-mount P4 chassis

Features :

Specification

Construction
Heavy-duty steel
Drive Bay
External: NB CD-ROM x1 (or equivalent CD-RW / DVD-ROM) + NB FDD x1 Internal: 3.5” HDD x2
Air Filter
N/A
Cooling Fan
One 12cm ball-bearing fan
Indicator
Power on/off x1, HDD x1
Switch
Power on/off x1, System reset x1
Speaker
N/A
Connector
Two USB connectors on the front panel, reserved one COM port cutout
Standard Color
Black
Dimensions
481(W) x 429(D) x 44(H) mm; 19”(W) x 18.7”(D) x 1.7”(H)
Weight
Net: 10 kg (22.05 lb); Gross: 13 kg (28.67 lb)
Backplane
PBP-03P2X: 3-slot (2xPCI) PICMG backplane
Ordering Guide
PRC-1194-03P2X-2501
19” 1U rack-mount chassis with 3-slot (2xPCI) PICMG backplane and 250W PFC power supply
