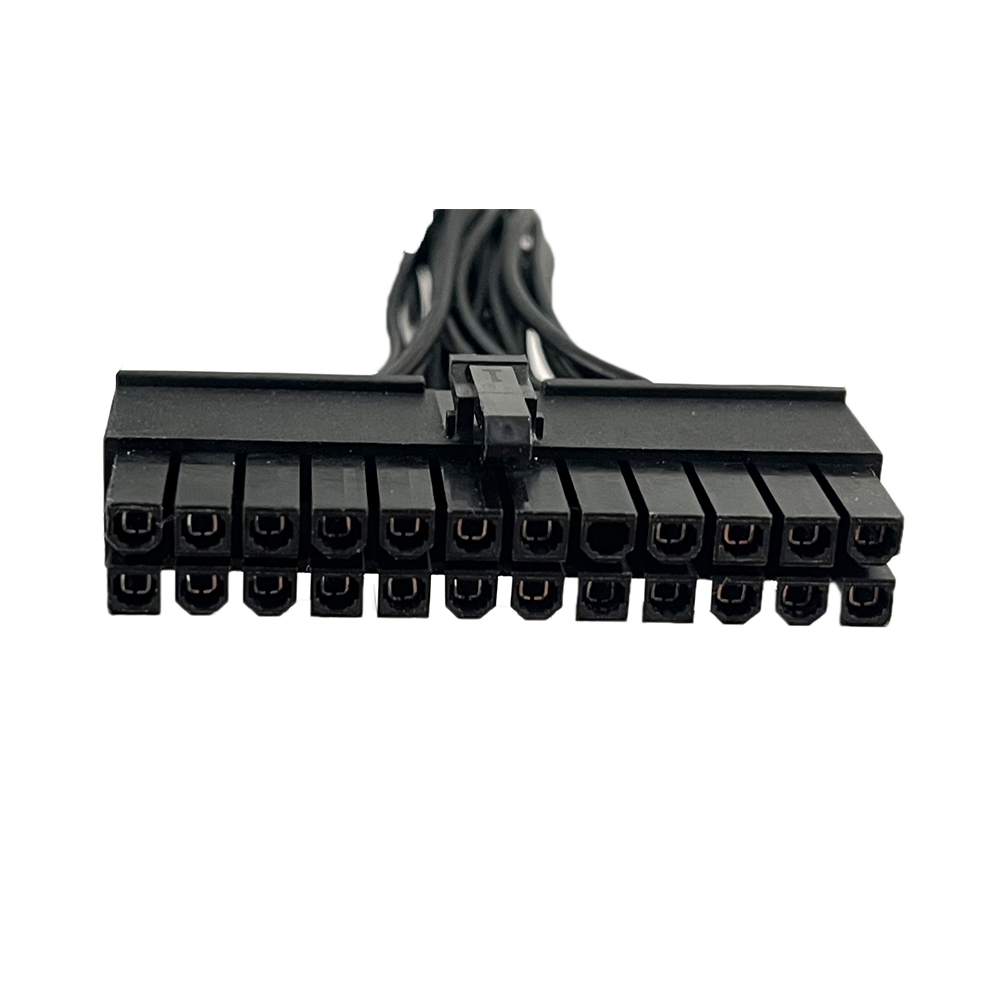

20-pin 1000×1000

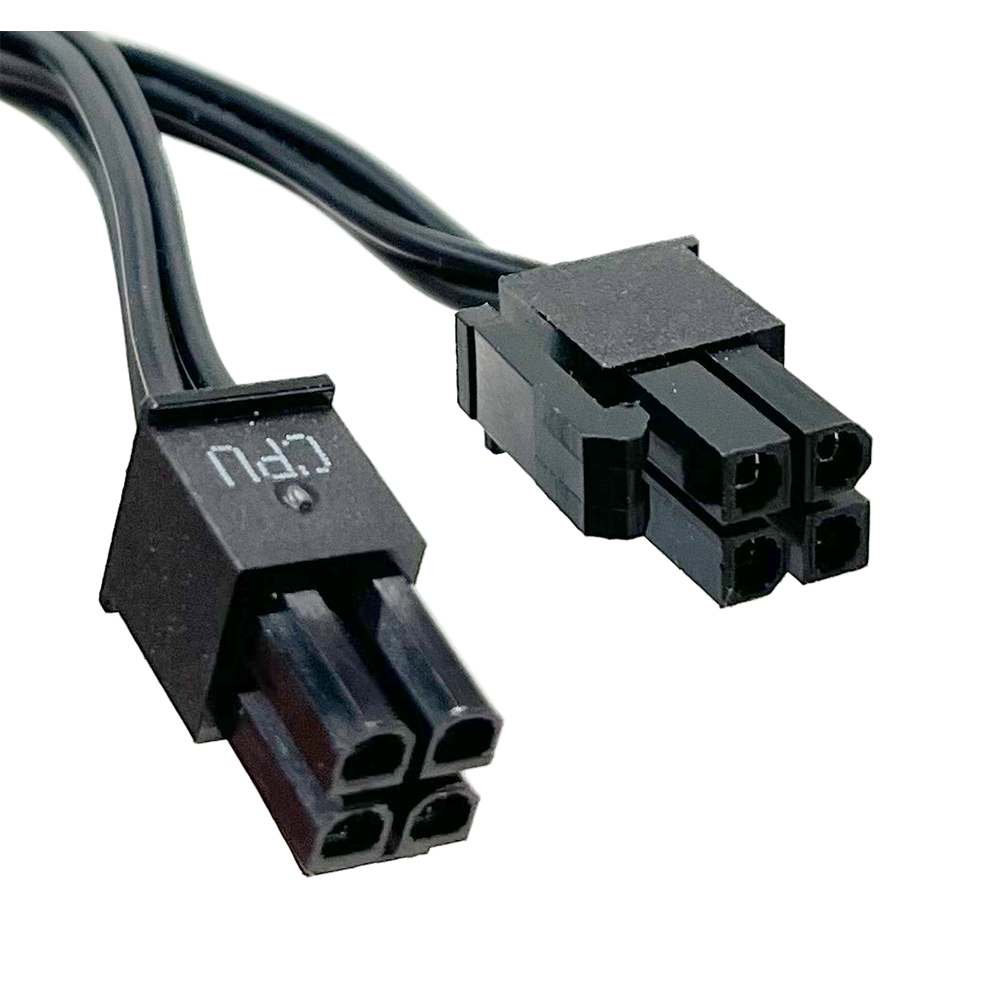

4Pin_12V CPU 1000×1000

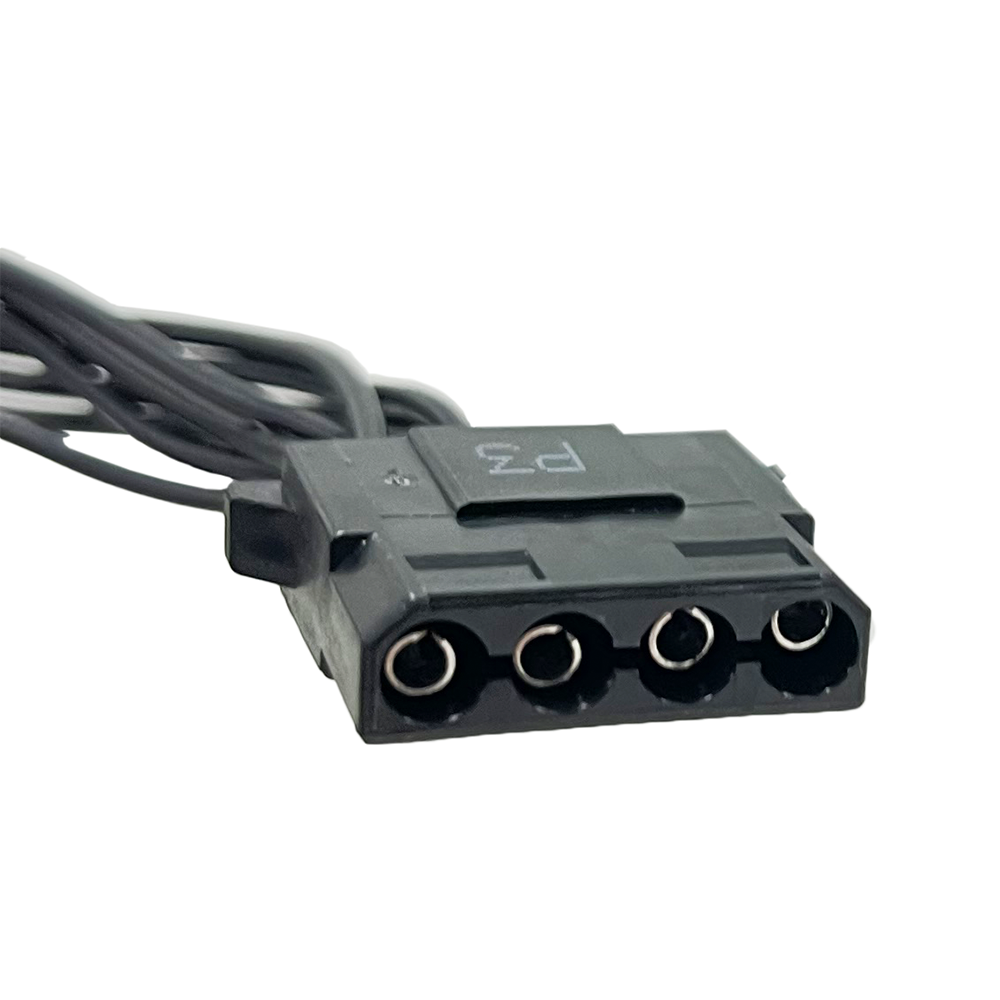

4-Pin 1000×1000

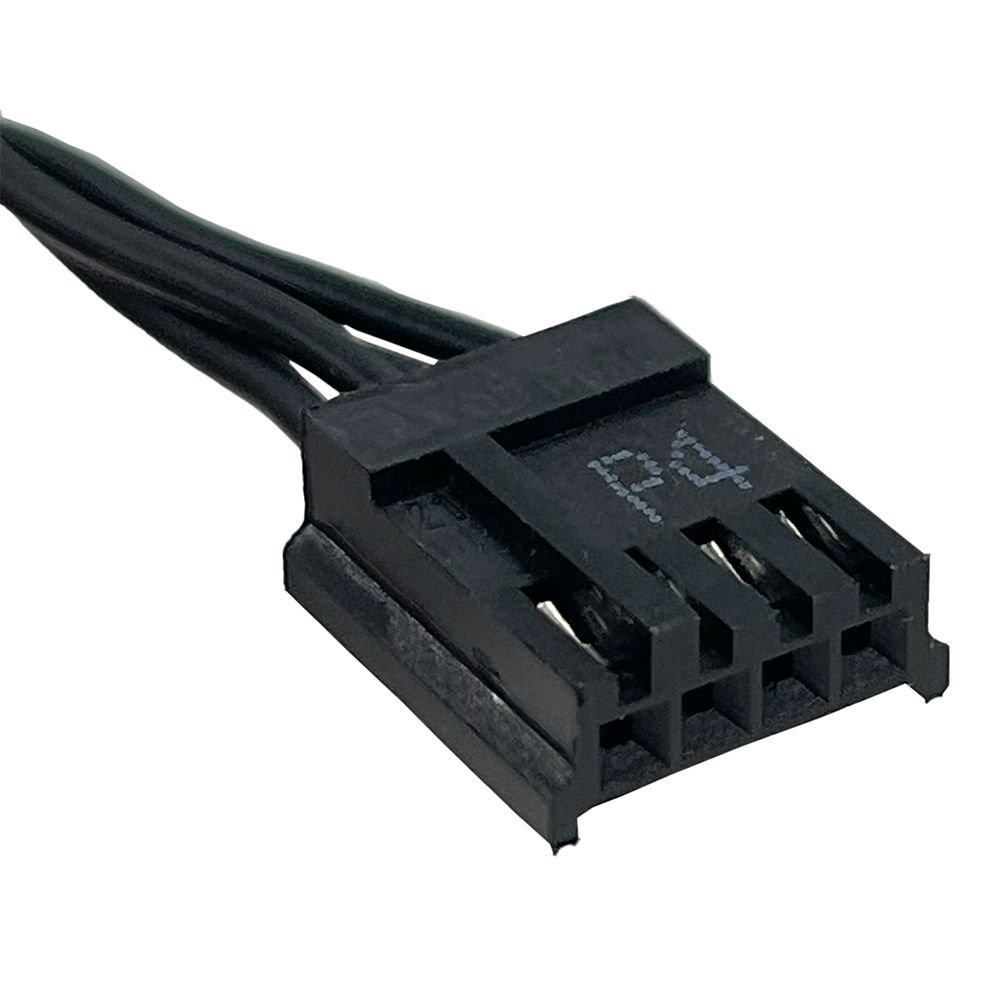

floppy 1000×1000

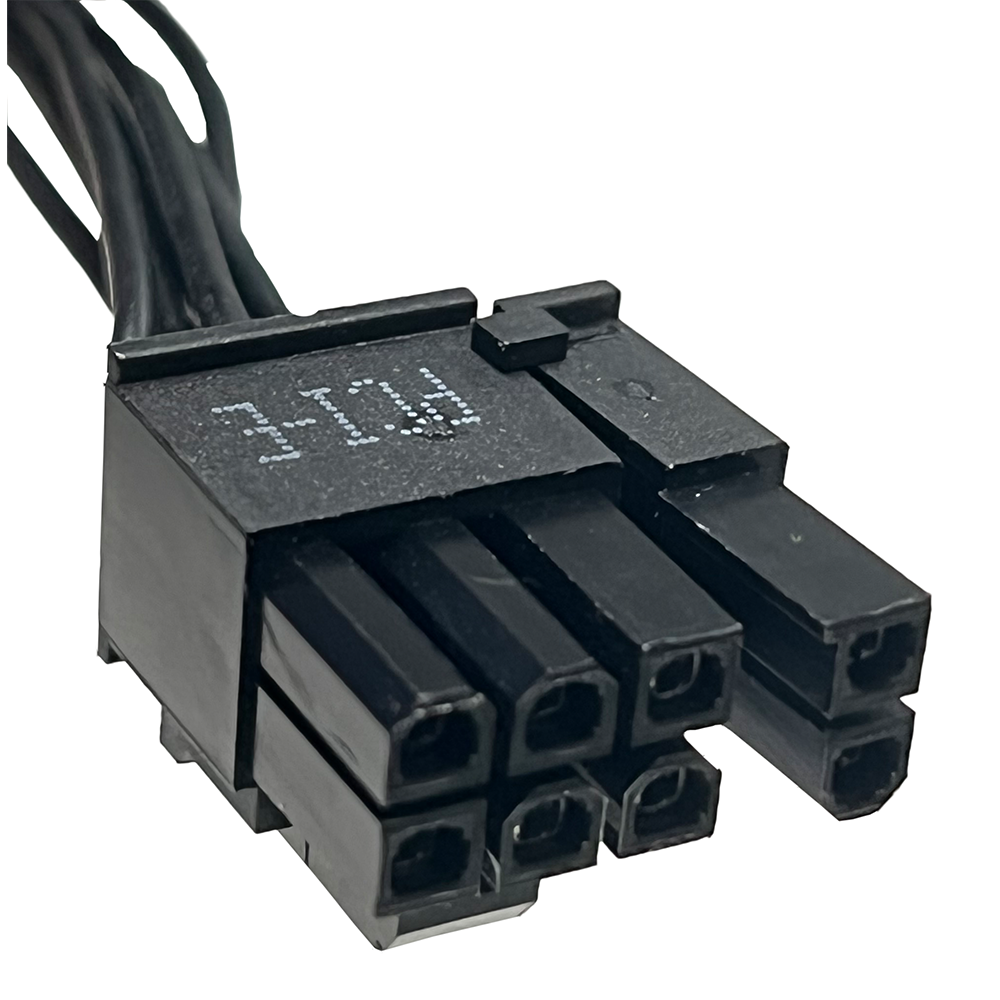

PCIe 1000×1000

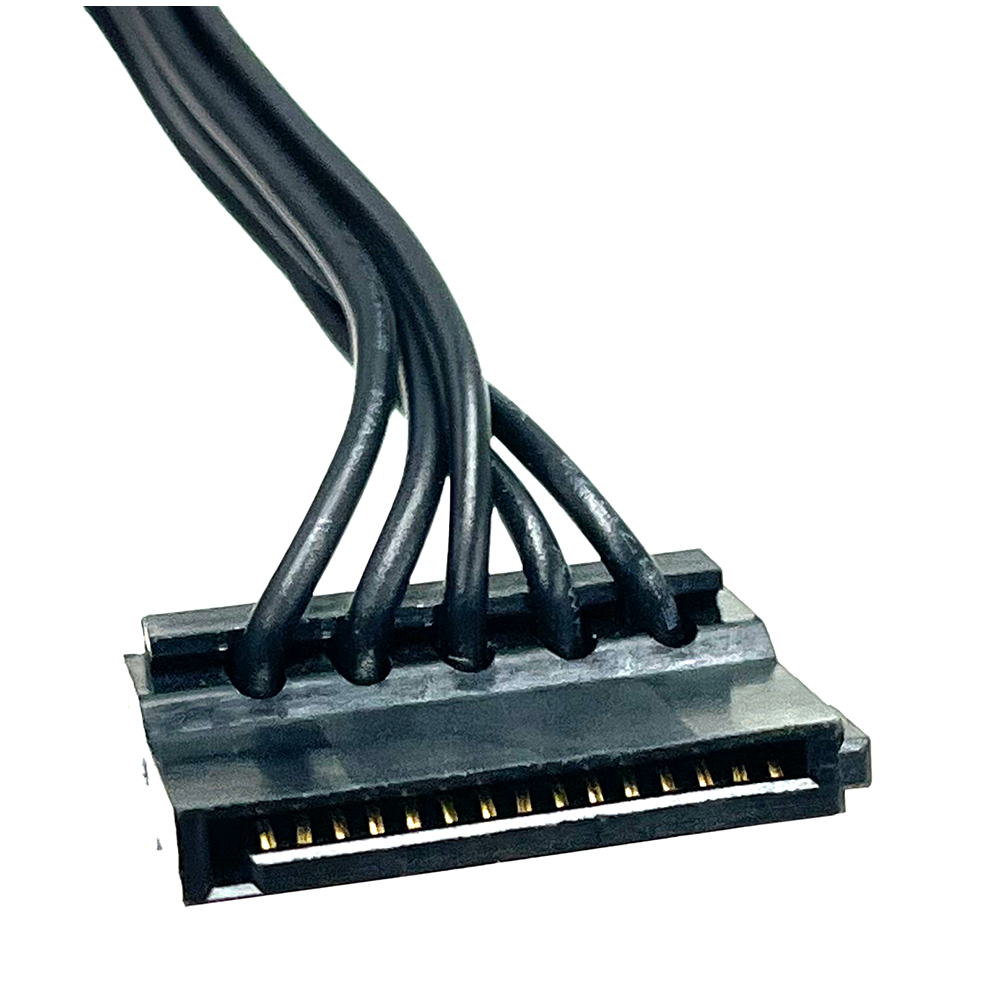

SATA PWR 1000×1000

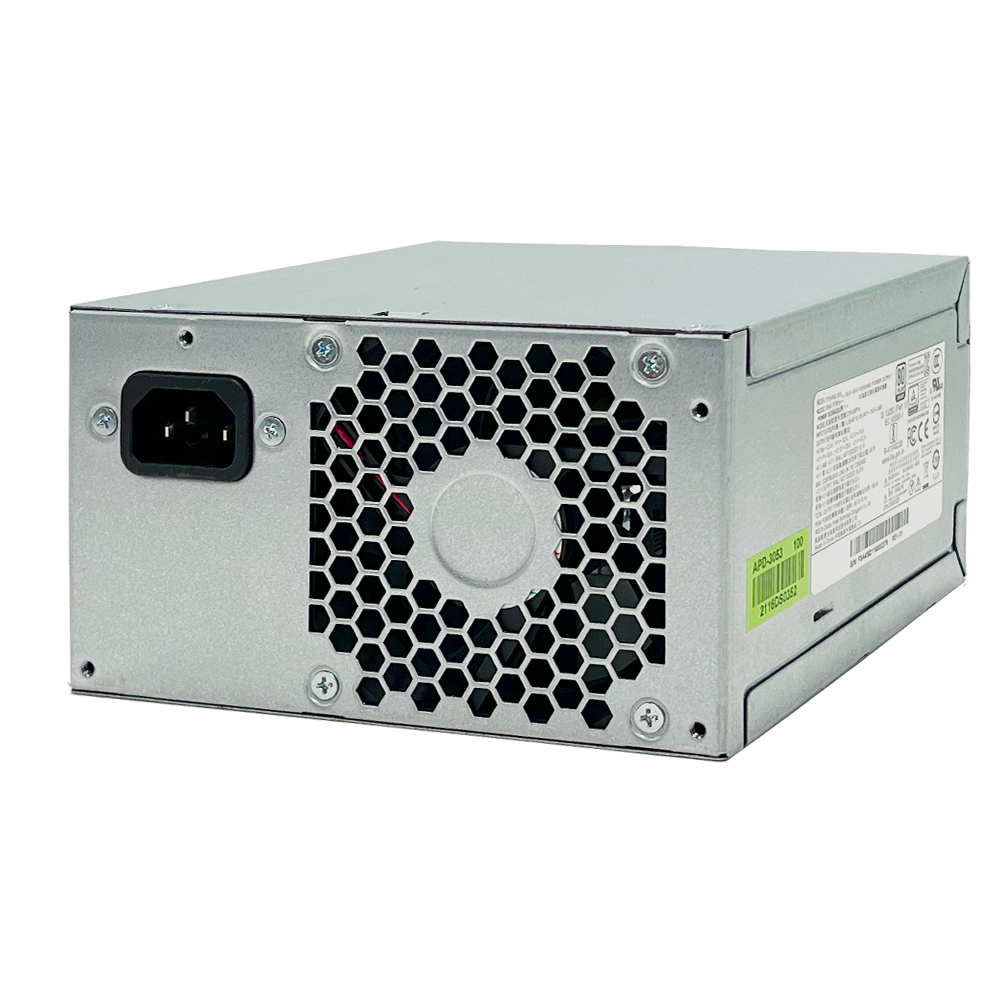

D500C002P

500W PS/2 ATX PSU

Features :

Description

For most PS/2 ATX in IPC applications are for server station and communication system; In those environments, heat is the major cause of output de-rating. D500C002P works at 50°C which allows the whole system to work in high temperature environment. In addition, for various demands. it supports two 12V pins, PCIe power connectors, SATA power, Four Pin connector and floppy connector.

Specification

MTBF
100,000 hours at 500W load(115Vac) & 35°C
Temperature/ Humidity
Storage: -20~60°C, 5% ~ 95% (non-condensing)
Operation: 0~50°C (450W), 0~35°C (500W), 20% ~ 85°%(non-condensing)
Dimension (WxDxH)
150 x 140 x 85mm; 5.9" x 7.2" x 3.4"
Risetime
<20mS
