PMAT-03069
Micro-ATX Motherboard with H310 chipset, 8th Generation Intel® Core™ i7/ i5 /i3, Pentium and Celeron LGA1151 Socket Processor, up to 65W TDP
Features :
- Intel® Core™ 8th generation Coffee-Lake, LGA1151 Socket.
- Intel H310 Express Chipset
- Dual Channel DDR4 2666MHz, 2-UDIMM slot, up to 64GB memory
- Dual Display support by VGA/DVI-D/HDMI/DP

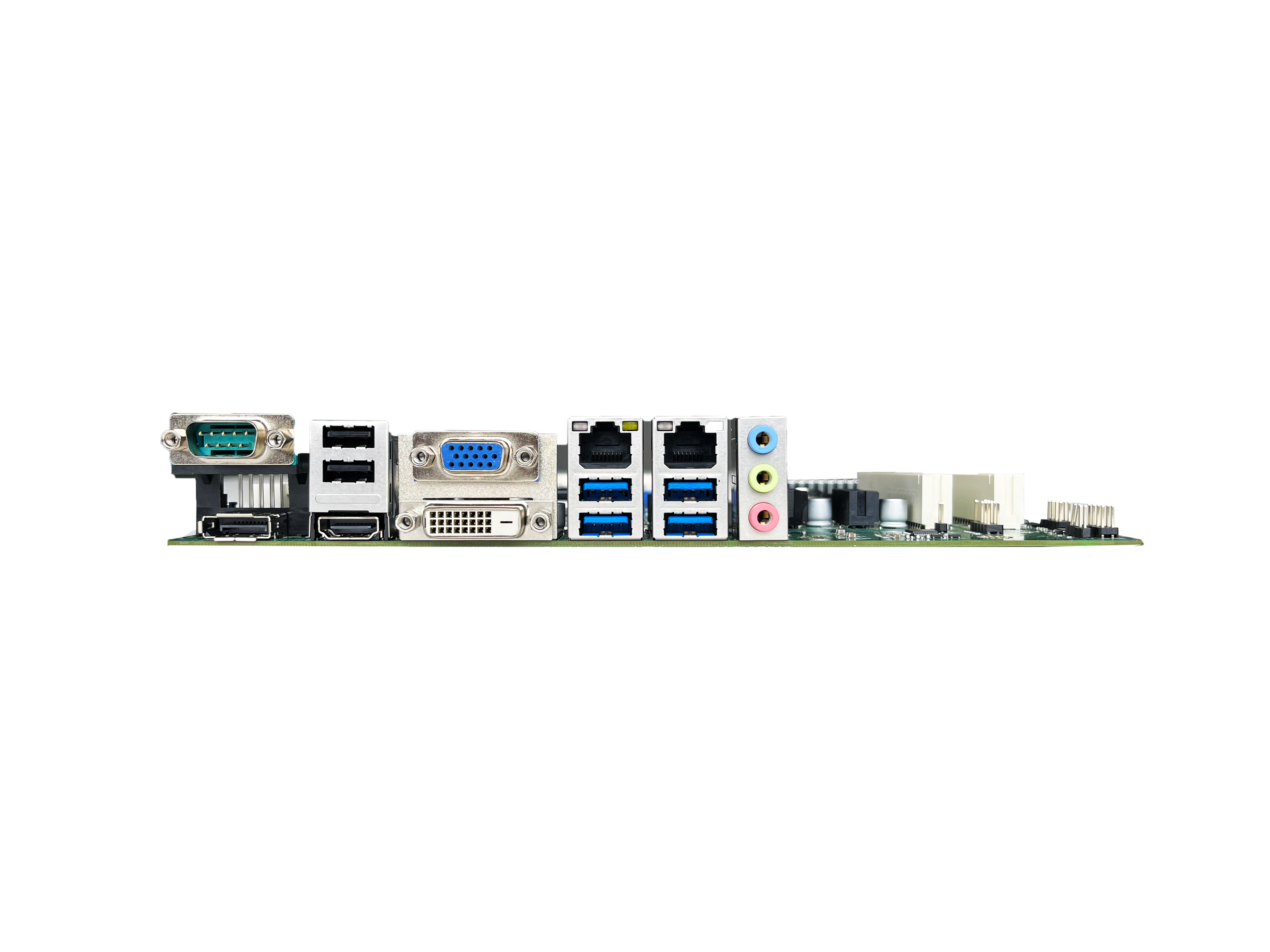

- Rear I/O, 2-USB2.0, 4-USB 3.1, 2-Gigabit Ethernet, COM Port and SATA III ports support.
- 1-PCIe x16, 1-PCIe x1 and 2-PCI slots.
- 10-COM ports, COM 1& 2 Supports RS232/422/485
Introduction
Micro ATX Motherboard PMAT-03069 is based on Intel® H310 Coffee lake chipset and desktop processor SKU like Intel Core™8th gen. Build with PCI and PCI Express expansions, it is suitable for Industrial automation, digital signage, banking, KIOSK and POS applications.
Specification
|
Format |
µATX |
|
Chipset |
Intel H310 |
|
Memory |
Dual Channel DDR4 2666MHz up to 64GB |
|
Display Interface |
VGA /DVI-D /DP /HDMI, supports Dual displays |
|
Network |
2x GbE |
|
Expansion |
1-PCIe x16
1-PCIe x1
2-PCI |
|
Serial Interface |
10-COM ports, COM 1 & COM 2 supports RS232/RS422/RS485 |
|
USB |
4- USB 3.1(Gen 1), 4- USB 2.0 |
|
Audio |
6 Channel Realtek ALC662VDs |
|
GPIO |
8 bits |
|
BIOS |
AMI 64Mb Flash ROM |
|
Operating Temperature |
0°C~60°C |
|
Storage Temperature |
-20°C~85°C |
|
Dimension |
Micro ATX (244 x 244mm) |
|
Ordering Guide |
|
|
PMAT-03069-1 |
Micro ATX Motherboard, 8th Gen, H310, Intel® Core™ i7/ i5 /i3, Pentium and Celeron LGA1151 Socket Processor, Max. 65W TDP, GbE/ COM/ Audio/USB |
