L GA115x-1U-06CC -17015BVH-M1

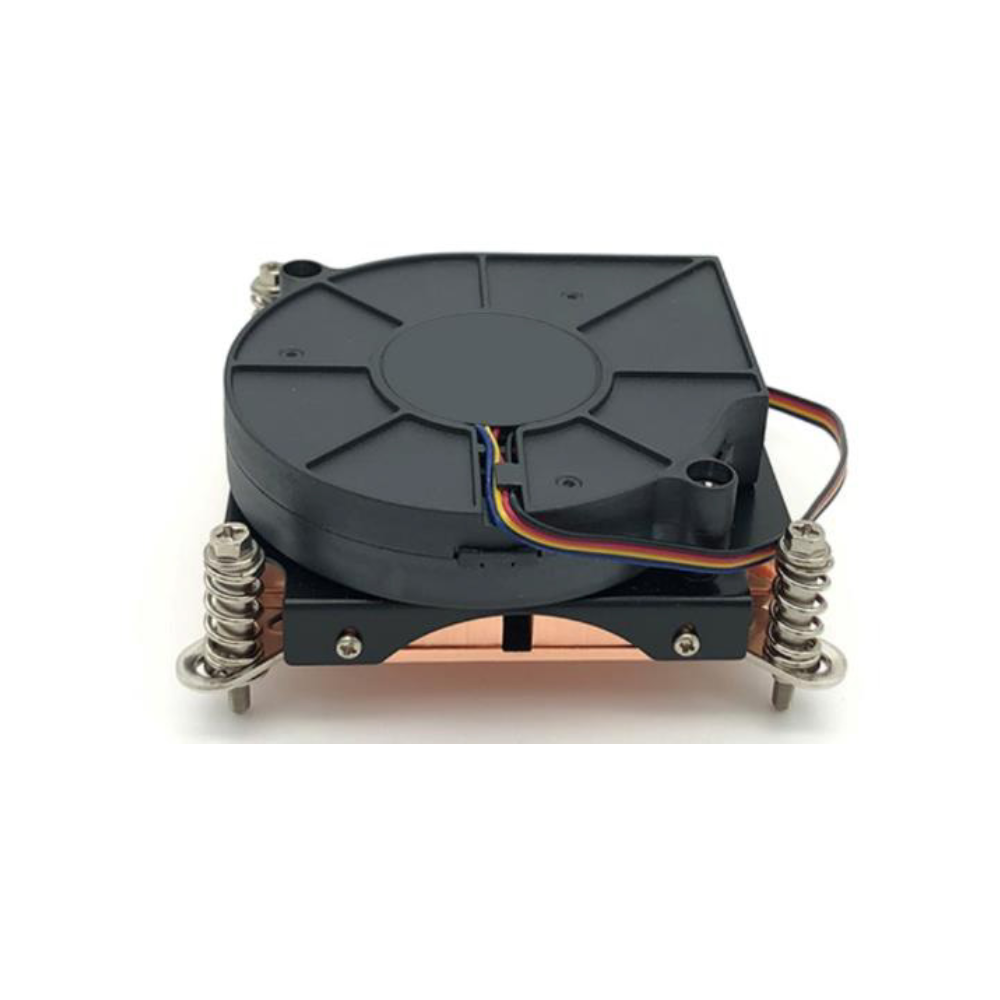

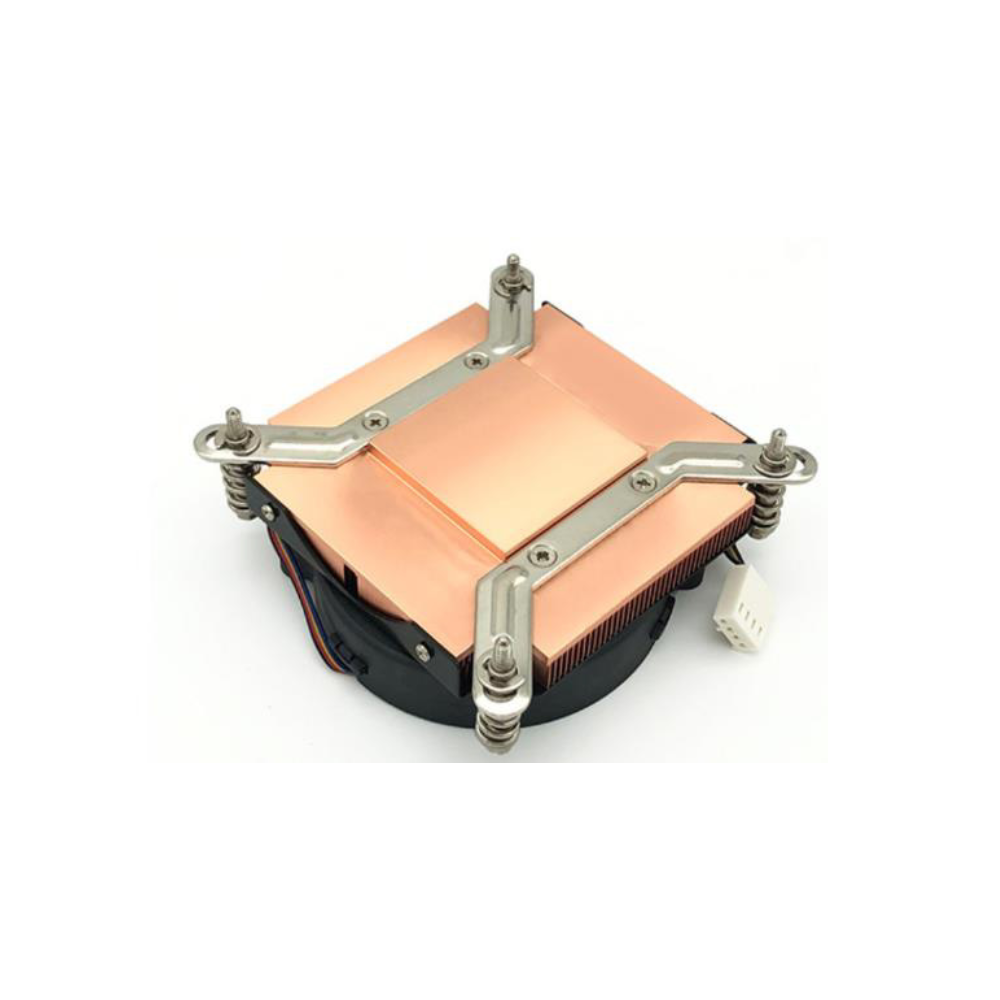

1U Copper Cooler for LGA
115X, Square, TDP up to 85W
Features :
- 1U size
- CPU Type LGA 115x
- Square type socket board
- Copper base and copper material
- High reliability
- 75mm x 75mm CPU Hole
Specification
| LGA115X-1U3CC - 7015BVH-M1Radiator | |
|---|---|
| Product model | LGA115x-1U-06CC-85W |
| CPU type | LGA115X (square motherboard) |
| Voltage | 12V |
| Product size | 80mm x 80.5mm x 29mm |
| Fan speed | PWM 2000-5000RPM |
| Noise value | 54.80dBA (MAX) |
| Air volume | 10.37CFM (MAX) |
| Fan Plug | 4pin PWM |
| Bearing type | double ball |
| CPU hole spacing | 75mm x 75mm |
| Power consumption (TDP) | 85W |
| Material | copper base + copper fins |
