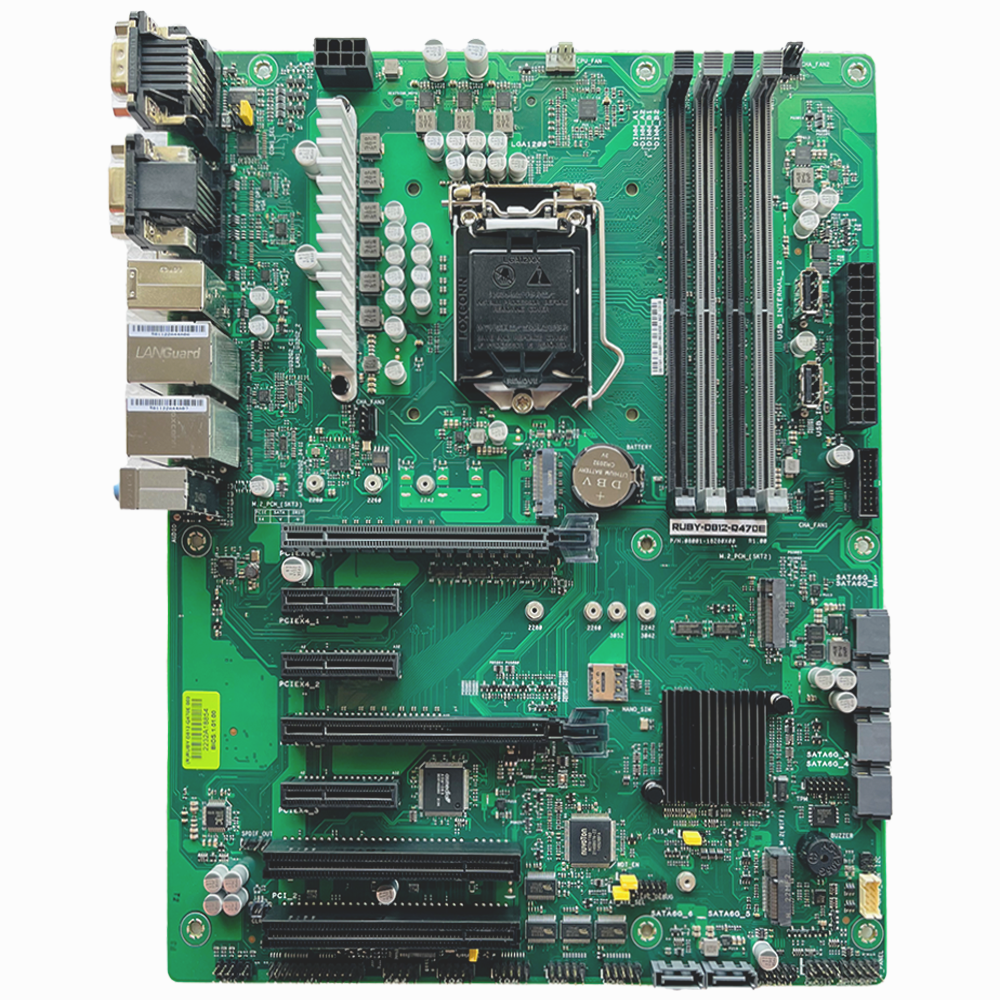

RUBY-D812-Q470E
Support Desktop In Intel® 10th Gen Core™ Processors ATX Motherboard with DDR4 Long- DIMM up to 128Gb , VGA 2x DP port, HDMI ,Dual GbE LAN, Six COM Ports
Features :
- Intel® 10th Gen Core™ Processors support
- Four Long-DIMM suppo rt DDR4 Non-ECC DRAM up to 128GB
- Support dual Ethernet, 6x COM Ports, 6x USB 3.2 Ports , 6x SATA III Ports and Audio
- Two PCIe x16 (1x PCIe x8 signal), three PCIe x4 , two PCI slot, one M.2 (Type B) , one M.2 (Key E) for Wireless, one M.2 (Key M) for SSD
Description
ATX Motherboard RUBY -D812 is based on Intel® Q470E chipset and Desktop processors including Intel® 10th Genâ„¢ Core i3/i5/i7 SKU. This board supports DDR4 , PCIe 4.0, and SATAIII. Those features help you to build high performance and stabile system.Â
Specification
|
MODEL |
RUBY-D812-Q470E |
|
Form Factor |
ATX |
|
CPU |
Intel® 10th Gen Core™ Processors CPU in LGA1200 package |
|
Chipset |
Intel® Q470E |
|
BIOS |
AMI UEFI |
|
Memory |
4 x DDR4 Long-DIMM up to 128GB |
|
Expansion |
2x PCIe x16 (1 x PCIe x8 signal) ,3x PCIe x4 slots
|
|
Display |
VGA/Dual DP/HDMI |
|
Audio |
Realtek ALC887 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
2x RS232/422/485 port one on REAR I/O , one on board header 4x RS232 port on pin header |
|
USB |

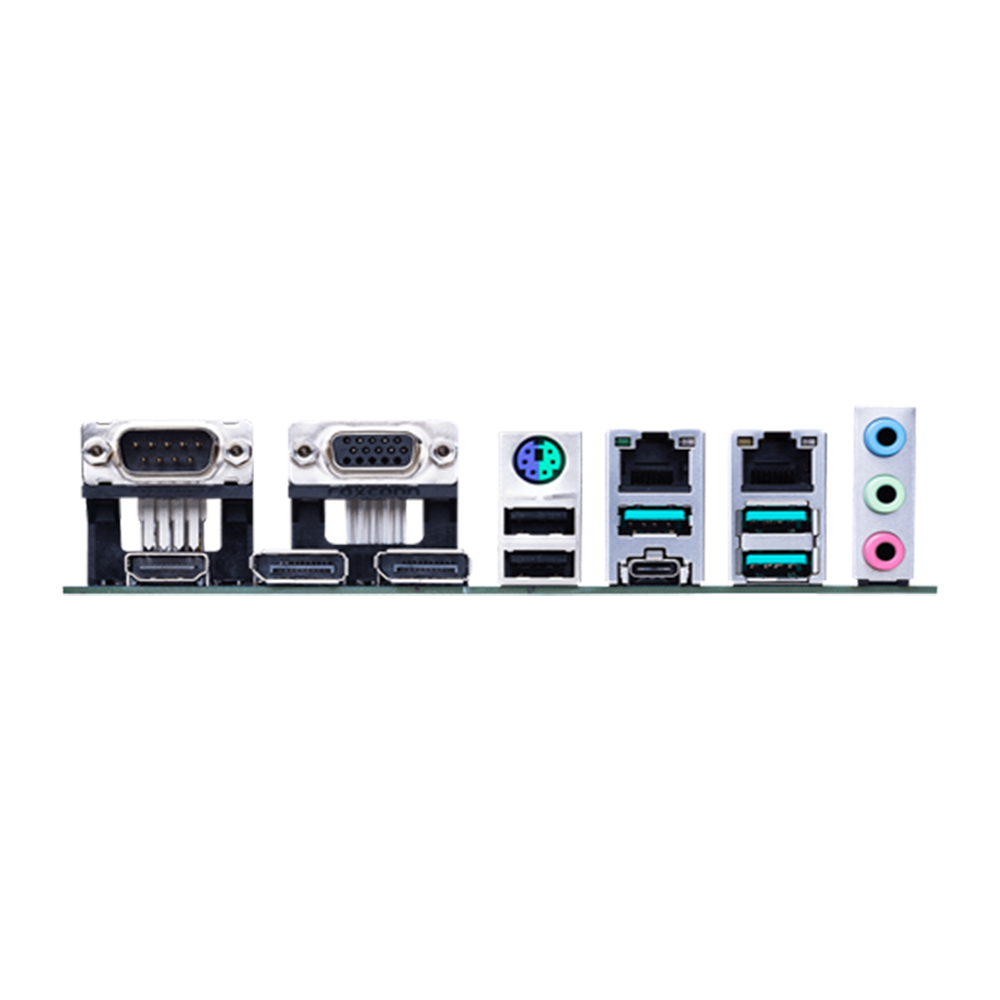

4x USB3.2 (Gen2) on rear I/O(3x Type A + 1x Type C) 2x USB3.2(Gen1) on pin header 2x USB2.0 on pin header 2x vertical connectors on board |
|
Storage Devices |
6x SATAIII ports(port1 /port2 shared with M.2 Key M) |
|
GPIO |
8 bit |
|
Others |
N/A |
|
Dimension |
304.8 x 243.8mm |
|
Ordering Guide |
|
|
AB1-3 60 |
(R).RUBY-D812-Q470E ATX IMB.LGA1200 Q470E. w/ DDR4 /VGA/Dual DP/HDMI Dual GbE/COM/Audio/USB |
|
Packing List |
|
One R UBY-D812 motherboard |
|
One I/O shield |
|
One SATA Cable |
