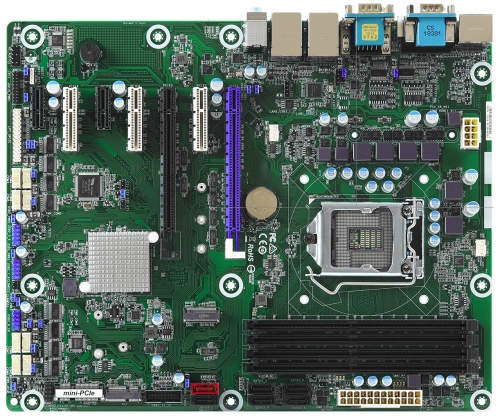

RUBY-D811-Q370
Leading Desktop Intel® 8th/9th Gen Core™ Processors ATX Motherboard with DDR4 Long-DIMM up to 128G, VGA ,Dual DP ports,HDMI ,Two GbE LAN ports, Ten COM Ports
Features :
- Intel® 10th Gen Core™ Processors support
- Four Long-DIMM suppo rt DDR4 Non-ECC DRAM up to 128GB
- Support dual Ethernet, 6x COM Ports, 6x USB 3.2 Ports , 6x SATA III Ports and Audio
- Two PCIe x16 (1x PCIe x8 signal), three PCIe x4 , two PCI slot, one M.2 (Type B) , one M.2 (Key E) for Wireless, one M.2 (Key M) for SSD
Description
ATX Motherboard RUBY-D811-Q370 is based on Intel® Q370 chipset and Desktop processors including Intel® 8th/9thGen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stabile system.
Specification
|
MODEL |
RUBY-D811-Q370 |
|
Form Factor |
ATX |
|
CPU |
Intel® Core™ i3/i5/i7/i9/Pentium®/ Celeron® |
|
Chipset |
Intel® Q370 |
|
BIOS |
AMI UEFI |
|
Memory |
4 x DDR4 Long-DIMM up to 128GB |
|
Expansion |
2x PCIe x16 (1 x PCIe x8 signal) 3x PCIe x4 slots 2x PCIe x1 slots |
|
Display |
VGA/Dual DP/HDMI |
|
Audio |
Realtek ALC887 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
8x RS-232 ports 2x RS-232/422/485 |
|
USB |
6x USB3.2 Gen1 6x USB2.0 |
|
Storage Devices |
6x SATA III (SATAI shared with M.2 Key M) |
|
GPIO |
8 bit |
|
Others |
N/A |
|
Dimension |
304.8 x 243.8mm |
|
Ordering Guide |
|
|
AB1-3J36 |
(R).RUBY-D811-Q370 ATX ESB.Q370 w/o ECC LGA1151.w/DDR4 /VGA/Dual DP/Dual GbE/COM/Audio/USB |
|
Packing List |
|
One RUBY-D811-Q370 Main board |
|
One I/O shield |
|
One Installation CD |
|
One SATA Cable |
|
One CPU cooler bracket |
