PIMB-09082
Leading Desktop ATX Motherboard Intel® 6th/7th Gen Core™ i7/i5/i3 Processors, LGA 1151 ATX, H110 Chipset with 2*U-DIMM up to 32GB, 2-PCIe x16, 5-PCI, HDMI, VGA, Dual LAN, M.2 slot

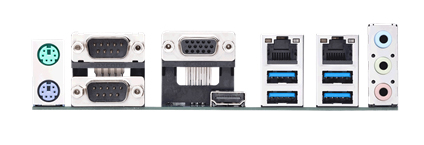

Features :
- Supports Intel® 7th/6th Gen Core™ processors TDP up to 65W ,
- 2 x U-DIMM DDR4 2400/2133 MHz Memory up to 32GB
- Support dual Ethernet, 8-COM Ports, 10- USB 3.2 Ports , 3x SATA III Ports and Audio
- 2-PCIe x16 , 5-PCI, two PCI slot, 1- M.2 with M key type 2242/2260/2280(SATA mode)
- 1-VGA up to 1920x1200 @60Hz and 1-HDMI up to 4096x2160 @24Hz, support Dual display
Description
ATX Motherboard PIMB-09082 is based on Intel® H110 chipset and Desktop processors including Intel® 6th/7th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III, plus rich expandability with 2- PCIe x16, 5- PCI and 1- M.2 slots, Dual LAN. Those features help you to build high performance and stabile system.
Specification
|
MODEL |
PIMB-09082 |
|
Form Factor |
ATX |
|
CPU |
Intel® Core™ i3/i5/i7/Pentium®/ Celeron® Processors |
|
Chipset |
Intel® H110 |
|
Memory |
2- U-DIMM DDR4 2400/2133 MHz up to 32GB |
|
Expansion |
1- PCIe x16 slot 3.0/2.0 (x16 mode) 1- PCIe x16 slot 2.0 (x4 mode, x4pin) 5- PCI |
|
Display |
VGA/HDMI
Support dual display |
|
Audio |
Realtek ALC887/ALC 897* -VD2 High Definition Audio
Line-Out, Line-In, Mic in |
|
LAN |
2x GbE |
|
Serial Port |
2-RS232/422/485 6-RS-232 |
|
USB |
4-USB 3.2 Gen1 6-USB2.0 |
|
Storage Devices |
3- SATA Gen 3.0, up to 6Gb/s
1- M.2 Socket 3 with M key, type 2242/2260/2280(SATA mode) |
|
GPIO |
8 bit |
|
Parallel |
1-header |
|
Dimension |
305 x 244 mm |
|
Ordering Guide |
|
|
PIMB-09082-1 |
PIMB-09082 ATX, LGA1151 socket for the 6th/7th Gen CPU, H110 chipset, 2*U-DIMM, 2-PCIe x16, 5-PCI, HDMI, VGA, Dual LAN, M.2 slot |
|
Packing List |
|
PIMB-09082 Motherboard |
|
One I/O shield |
|
SATA 6G CABLE |
|
M.2 Screw packet |
