Fanless Industrial Box PC

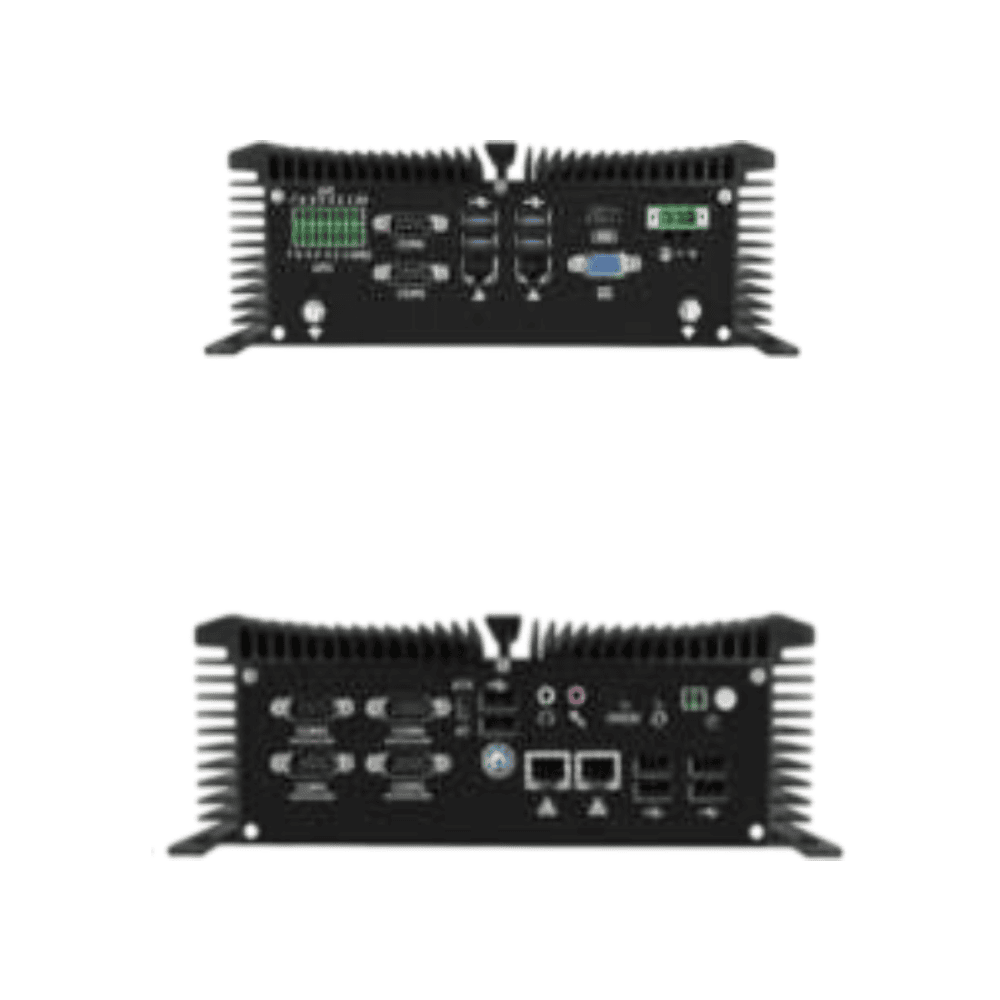

PW-BPC-IBC4-Series
Features :
- Compact Fanless Box
- Supports Intel Core i5-6th Gen and J6412 processor options
- Supports 1* VGA, 1* HDMI, 2* LAN, 2 * USB 4.0, 2* USB3.0, 6* COM
- 1* Power socket, Supports DC 9V ~36V wide voltage input
- Wide operating temperature for harsh environments
- Supports Wi-fi
| Specifications | |
|---|---|
| CPU | Support 6th / 7th / 8th / 10th / 11th Gen Core i5 / i7 CPU |
| Memory | 7th & 8th Gen: DDR4-1, Max. 16GB 10th Gen: DDR4 SO-DIMM, 2 × Max. 32GB 11th Gen: DDR5, 1 × Max. 32GB |
| Storage | 1 × M.2 2280 (SATA & NVMe optional) 1 × 2.5-inch HDD / SSD |
| Display Port | 1 × HDMI + 1 × VGA or 1 × HDMI + 1 × DisplayPort |
| Ethernet | 2 × Intel® I211, 2 × Intel® I255V 10/100/1000 Mbps RJ45 |
| Audio Interface | 1 × Audio Line-out, 1 × Audio Mic-in |
| USB | 6 × USB 2.0, 4 × USB 3.0 |
| COM Ports | 6 × RS232 (4 × RS422/RS485 optional) |
| GPIO | 14-bit GPIO |
| PS2 | 1 × PS2 |
| Watchdog Timer | Yes |
| Switch | Power Button / Reset Button / Clear CMOS Button / Slide Switch AT/ATX |
| Expansion | 1 × Mini-PCIe (Optional Wi-Fi, 3G/4G, with onboard SIM card slot) |
| Power Type | DC 9~36V |
| Power Adaptor | 9~36V DC, Power Adapter Optional |
| Operational Temperature | -20 ~ 60°C with Air Flow |
| Storage Temperature | -30 ~ 70°C |
| Relative Humidity | 95% @ 40°C (Non-condensing) |
| Vibration During Operation | IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) Fast: 2Grms @ 5~500Hz |
| Shock During Operation | IEC 68-2-27 CFast: 10G Half Sine, 11 ms |
| Weight | 1.3 kg (Net) |
| Dimensions | 248 × 150 × 83 mm |
| Construction | Aluminum Housing |
| Operating System | Windows 7 / 10 / 11, Linux |
