Features :

Description

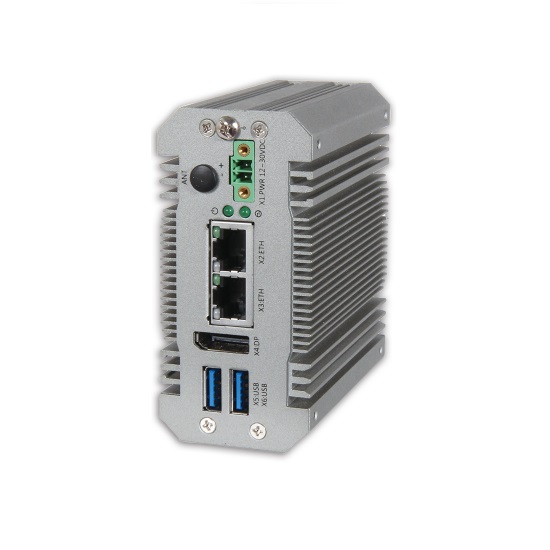

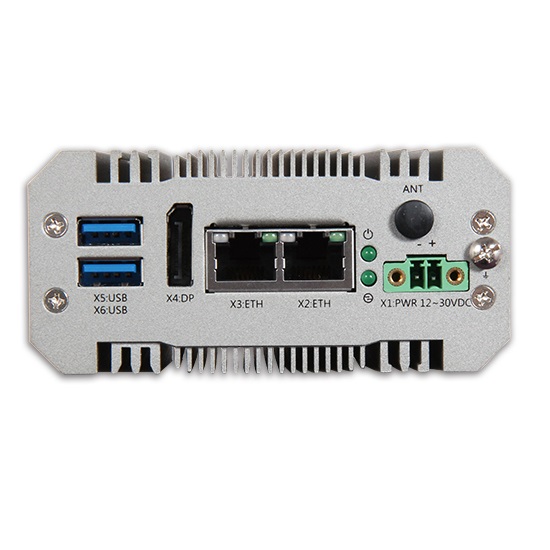

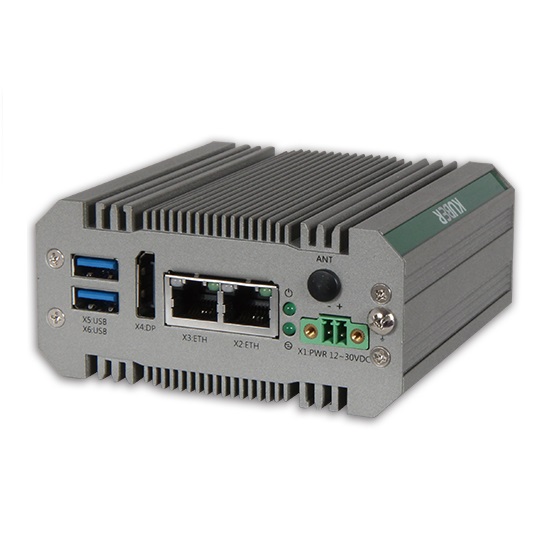

Ultra-small form factor industrial PC with Intel ®Apollo Lake family processor

General

CPU
Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory
4GB onboard LPDDR4 w/ 2133MHz, up to 8GB (optional)
Mass Storage
32GB onboard eMMC 5.0 flash; up to 256 GB (optional)
Power input
24VDC (+/- 30%)
Indicator LED
Power (Green), Run (Green)
Operating systems
Windows® 10 IoT Enterprise LTSB 2016 (64-bit)
Linux Yocto Warrior v2.7.1 (kernal 4.14)
Expansion
1 x M.2 Key E 2230
Power connection
1 x 2-pin screw-type terminal block
Ethernet
2 x 10/100/1000 GbE (Intel® i210)
USB
2 x USB 3.0
Display
1 x DP v1.4 4096 x 2160 @ 60Hz

Mechanical

Degree of protection
IP30
Dimension
99mm (L) x 46mm (W) x 92 mm (D)
Net Weight
0.55 kg
Mounting
DIN rail and wall mounting options
Cooling
Fanless

Environment

Operating temperature
0°C ~ 40°C with air flow
Storage Temperature
-40 °C ~ 85 °C
Relative Humidity
5 % ~ 95 % RH (non-condensing)
Vibration
Wall mount- MIL-STD-810G 514.7C-V Category-4
Din Rail – 1G (DIN EN 60068-2-6)
Shock
Wall mount -40G(MIL-STD-810G Table 516.6B-I)
Din Rail -15G (IEC 60068-2-27)
Certification
CE, FCC Compliance

Optional Accessories

Power Adaptor
APH-8000 – 2-pin Connector, 60W, 24V/2.5A
Mounting Kit
B787J130 – KUBER-2000 Wall mount bracket kit
B787J240 – KUBER-2000 Din-rail kit
Video Adaptor
B787W020 – DP to VGA video adaptor
B786W030 – DP to DVI video adaptor
