KUBER-1000
Features :
- Quad core Cortex-A72 64-bit (ARM v8)
- Two Ethernet ports and Wi-Fi support for multiple network connections
- Real Time clock (RTC) for device to keep accurate time
- Support TPM hardware security

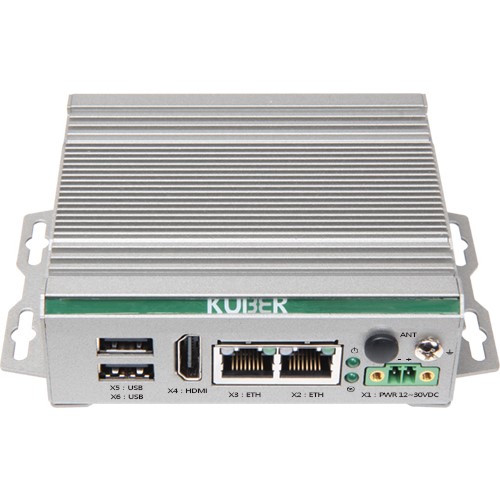

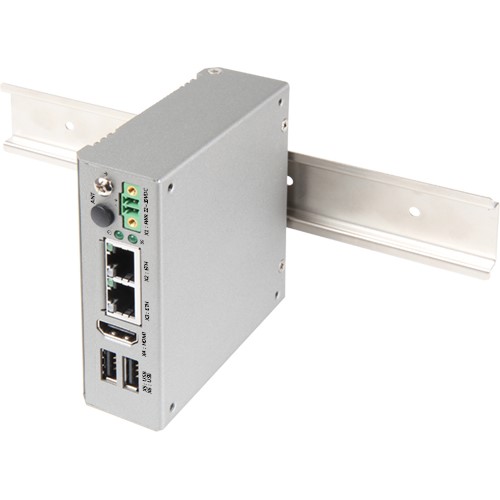

- Support wall-mount and Din rail for industrial application
Description

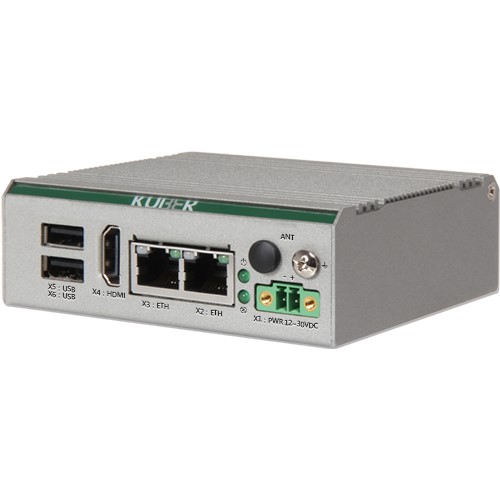

Industrial IoT Gateway System with Quad Core Cortex A72 Processor
The KUBER-1000 is designed in a fan-less case with palm size (99 (L) x 34 (W) x 92 (D) mm) can be fixed and installed in the system by wall mount or din rail easily for different application. Featuring the latest Broadcom BCM2711 processor with 2GB (LPDDR4 3200) memory.
KUBER-1000 also meets the light-industry requirements of EN 61000-6-3 (EMI), EN 61000-6-1 (EMS). On the software side, KUBER-1000 can adopts Linux OS like Yocto or Ubuntu as the operating system for flexibility.It leads KUBER-1000 to the quick implementation in plant networking, process monitoring, environmental management, and process visualization.
General
|
CPU |
Quad core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz |
|
Memory |
On Board LPDDR4 2GB (up to 8GB), 3200MT/s
Dual memory channel, 64bit, non-ECC |
|
Mass Storage |
16G Industrial micro-SD, 32G option Other size of micro-SD by request. |
|
Power input |
Standard power input : 24VDC(+/- 30%) |
|
Indicator LED |
Power (Green)/ Activity (Green) |
|
Operating systems |
Ubuntu IoT , Yocto (by project) |
|
Security |
Trusted Platform Module 2.0 |
|
Wireless Connection (optional) |
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless Bluetooth 5.0, BLE |
|
Miscellaneous Feature |
Real Time Clock |
|

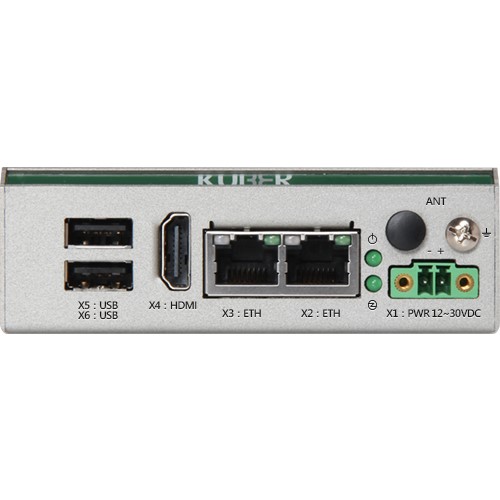

Power Connector |
1x 2-Pin Terminal Block |
|
Giga LAN |
2x 10/100/1000 bit Ethernet |
|
USB |
2x USB 2.0 |
|
Display |
1x HDMI 2.0 with 3840×2160 @ 30 Hz resolution |
EMC Standard
|
Certification |
CE, FCC Compliance |
Environmental and Mechanical
|
Operating Temperature |
0°C ~45°C with air flow |
|
Storage Temperature |
-40 °C ~ 85 °C |
|
Permissible Humidity |
5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
|
Vibration |
1G, by DIN-Rail/ Wall mount (EN 60068-2-6) 2G Random, 5~500Hz, 1hr/axis, by wall mount (MIL-STD-810G 514.7C-V Category-4) |
|
Shock |
15G with 11ms impulse length by Wall mount (EN 60068-2-27) 40G with 11ms impulse length, half sine, 11ms (EN 60082-2-27) |
|
Degree of Protection |
IP 30 |
|
Dimension |
99mm (L) x 92mm (W) x 34 mm (D) |
|
Net Weight |
0.3 Kg |
|
Mounting |
DIN-Rail / Wall Mount |
|
Cooling |
Fan-less |
Optional Accessories
|
Power Adaptor |
2-pin Connector, 60W, 24V/2.5A |
|
Mounting Kit |
DIN-Rail / Wall Mount |
