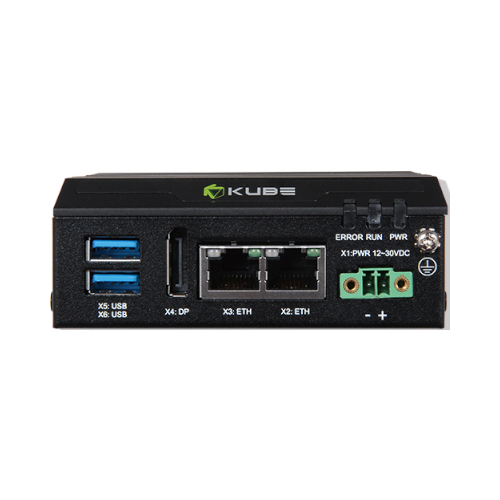

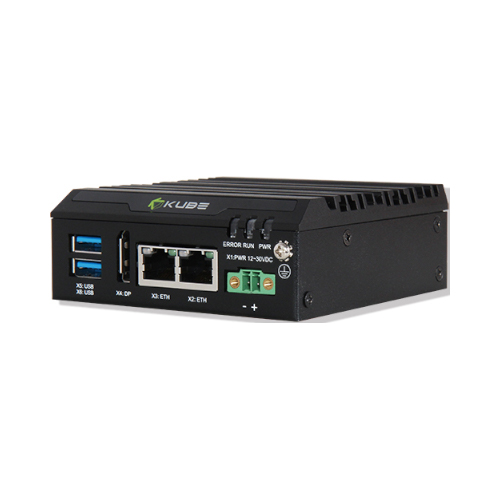

KUBE-2100
Features :
- Support Heavy Industrial EMC
- Pocket-sized fan-less design
- 32 GB eMMC storage onboard
- Edge LED indication design
- Expandable design by multiple interface
- Support DIN-Rail, Wall Mounting Scheme
Description
Pocket sized and ruggedized fan-less industrial gateway with Intel® Celeron N3350 Apollo Lake family processor
General
|
CPU |
Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
|
Memory |
on Board 2 GB LPDDR4 2400 MT/s, up to 4G(Optional) |
|
Mass Storage |
onboard eMMC 5.0 flash 32 GB
|
|
Video Interface |
1 x DP v1.4 4096 x 2160 @ 60Hz |
|
Expansion |
1 x M.2 key-E, 2230 for WIFI 1 x M.2 Key-B, 2242 for storage |
|
Cooling |
Fanless |
|
Power input |
12-30 VDC+/- 20% w/ RVP |
|
Indicator LED |
ERROR, RUN, POWER
|
|
Operating systems |
Windows®10
|
I/O Interfaces
|
Power connector |
1 x 2-Pin Terminal Block |
|
USB |
2 x USB 3.0 |
|
Ethernet |
2 x 10/100/1000 GbE (Intel® i210) |
|
RS-232 |
Optional on EXP model |
|
RS-232/422/485 (BIOS configurable) |
Optional on EXP model |
Environmental and Mechanical
|
Dimension (mm) |
97x95x36(mm) |
|
Net Weight |
0.5 kg |
|
Mounting / Mounting Option |
Wall |
|
Degree of protection (IP rating) |
IP30 |
|
Ambient temperature (operation) |
0°C ~ 50°C ( -40°C ~ 70°C, optional) |
|
Ambient temperature (storage/transport) |
-40 °C ~ 85 °C |
|
Permissible humidity (operation) |
5 % ~ 95 % RH (non-condensing) |
|
Permissible humidity (storage/transport) |
5 % ~ 95 % RH (non-condensing) |
|
Vibration |
1G with DIN EN 60068-2-6 |
|
Impact/ Shock |
15g, 11 ms in accordance with IEC 60068-2-27 |
Standard & Regulation
|
EMC |
CE, FCC |
|
EMI |
EN 55022 / EN 55032 |
|
EMS |
IEC 61000-4-2 * Contact: +/- 8KV; criteria B * Air: +/- 15 KV; criteria BIEC 61000-4-4 * Signal ports: +/- 0.5 KV; criteria B * DC power ports: +/- 0.5 KV; criteria BIEC 61000-4-5 * Signal ports: +/- 1 KV; criteria B * DC power ports: +/- 0.5 KVIEC 61000-4-6 * Signal ports: 3 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria A * DC power ports: 3 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria A |
Others
|
Power comsumption
(Typical, Max) |
Maximum:(I/O full loading, windows 10, CPU loading: 100%) 2.38A@ 9V, 21.42W 0.8A@24V, 19.2W 0.5A@ 36V, 18WTypical (Typical (I/O basic loading ,Windows 10, CPU loading 40%) 1.32A@ 9V, 11.88W 0.48A@24V, 11.52W 0.3A@ 36V, 10.8WMinimal (I/O minimum loading, Windows 10, CPU loading: Idle) 0.75A@ 9V, 6.75W 0.25A@24V, 6W 0.16A@ 36V, 5.76W |
|
Accessory |
Display adaptor: DP to VGA / DP to DVI-I video adapter Mass Storage (M.2 SSD): 32GB / 64GB / 128GB /256GB Universal DIN rail adapter Wall mounting kit |
