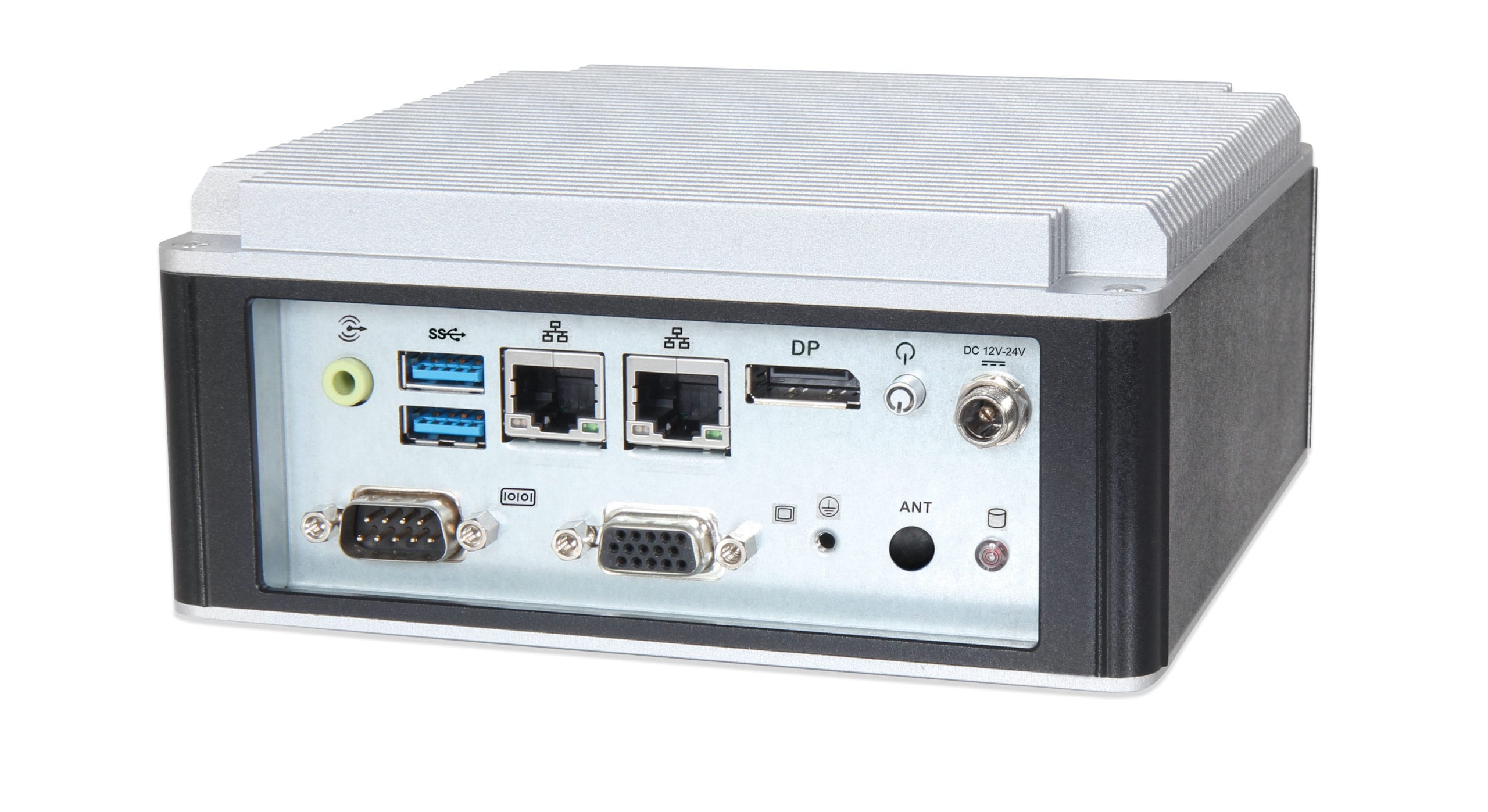

WEBS-21D0
Embedded Compact Fan-less Box-pc with Intel® Atom® E3900 Series based NANO-ITX Board, with Wide Operating temp. -20°C ~ 60°C.
Features :
- Powered by Intel® Atom® Apollo Lake Dual/ Quad-core™ E3900 Series SoC
- Support 1x 2.5” HDD/SSD, 1x mSATA,1x Micro SD
- Dual Display by VGA, DP
- 1x M.2 and 1x Full-size Mini-PCIe socket (colay with mSATA)

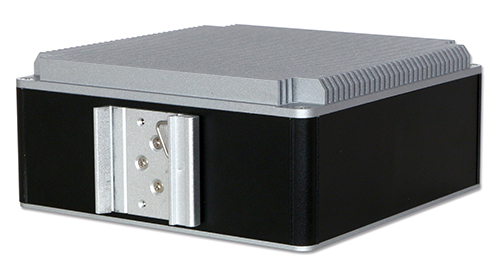

- Support Wall mount, Panel/VESA mount and DIN Rail mount

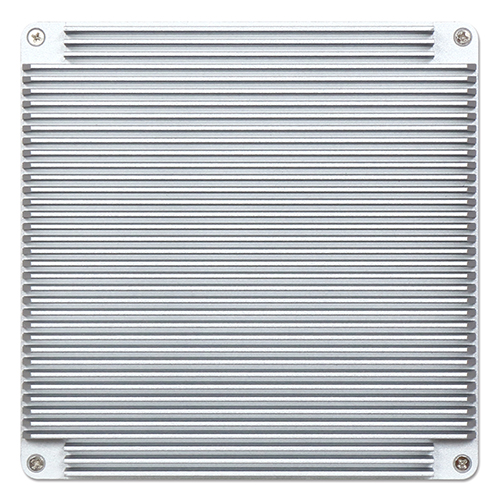

- Wide Operating Temperature support (-20~ 60°C) with Fan-less design
- Wide Range DC 12V ~ 24V power input
Description
The Rugged Fanless Embedded Box PC WEBS-21D0 takes advantage of Intel® Atom® E3900 series processor technologies, especially its vastly superior Quad-Core™ processing power and capability. The low power, cost-effective processor with high perfromance is of great use to build up a compact system, WEBS-21D0, which supports wide operating temperature from -25°C to 60°C for fan-less applications in harsh environment, such as kiosk, digital signage, transportation and factory automation.
Specification
| System | |
|---|---|
|
M/B |
NANO-6062
|
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Atom® E3950 1.80GHz Atom® E3940 1.60GHz
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® Gen 9 Graphics
|
|
Audio Codec |
ALC892
|
|
Super I/O |
EC ITE IT8528
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x mSATA, 1x SD
|

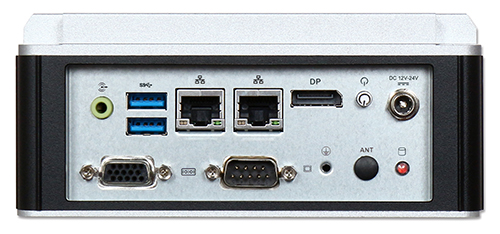

| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485
|
|
USB |
2x USB3.0
|
|
Display |
VGA, DP
|
|
Ethernet |
Intel® I210IT x 2
|
|
PS/2 |
N/A
|
|
Audio |
Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x M.2 (Type E) 1x Mini-PCIe socket
|
| PWR | |
|---|---|
|
System |
DC 12V ~ 24V
|
| Environment | |
|---|---|
|
OP Temp. |
-20°C ~ 60°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 66mm
|
|
Weight |
2 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3512 |
(R).ATO. WEBS-21D0. NANO-ITXsystem.
|
