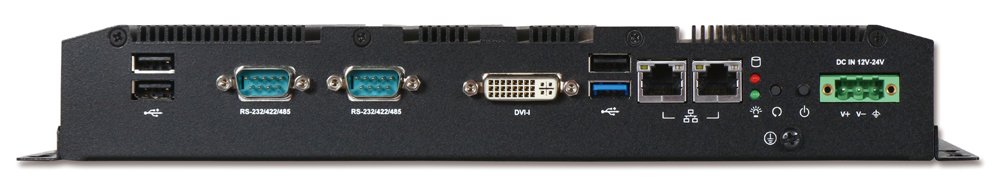

WEBS-5491
Embedded Rugged Fan-less PC with Intel® Atom® E3845 Specific Form Factor Board
Features :
- Latest Intel® Atom® embedded processor with low power and quad-core technology
- Fan-less and cable-less design with wide temperature support (-30°C ~ 70°C)
- Single SO-DIMM socket up to 8GB DDR3L Memory
- 1x 2.5” SATA HDD/SSD, 1x CF & 1x SD card
- 2x Gigabit Ethernet, 1x USB3.0, 3x USB2.0, 2x RS-232/422/485 (selectable by BIOS)
- 1x DVI-I (DVI-D & VGA signal included)
- 1x Antenna hole for WiFi or 3G module
- Expandable I/O combinations for diverse applications
- Support wide DC 12V ~ 24V input
- Wall, DIN rail mounting are supported
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Rating
Description
Portwell Fanless Embedded-PC WEBS-5491 is powered by Intel® Atom® quad-core processor. Despite its fanless and cable-less design, the system can support wide temperature ranging from -30 to 70 degrees. Expandable I/O combination design makes it more flexible for various environments. By utilizing the low power technology, WEBS-5491 is an ideal platform for factory automation and transportation applications.
Specification
| System | |
|---|---|
|
M/B |
PEB-99A4-E3845
|
|
Form Factor |
Specific Form Factor 227 x 150 mm
|
| System | |
|---|---|
|
CPU |
Atom® E3845 1.91GHz
|
|
Chipset |
Intel® SoC
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® Gen 7 Graphics
|
|
Audio Codec |
ALC892 |
|
Super I/O |
EC ITE IT8528 + Fintek F81216
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x CF, 1x SD card |
| External I/O | |
|---|---|
|
Serial |
2x RS-232/422/485
|
|
USB |
3x USB2.0 1x USB3.0 |
|
Display |
DVI-I
|
|
Ethernet |
Intel® I210IT x 2
|
|
PS/2 |
N/A
|
|
Audio |
Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x Half-size Mini-PCIe
|
| PWR | |
|---|---|
|
System |
DC 12V ~ 24V
|
| Environment | |
|---|---|
|
OP Temp. |
-30°C ~ 70°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
279 x 164 x 42 mm
|
|
Weight |
2.8 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3435 |
(R).ATO.WEBS-5491.Intel Baytrail E3845.Fanless System
|
