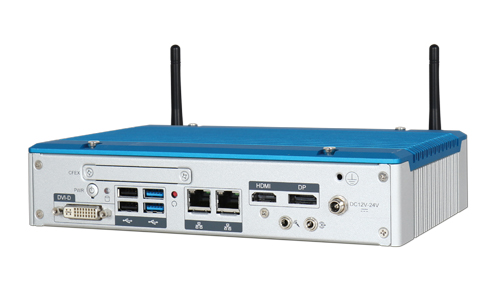

Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i5/i7 based Specific Form Factor Board

Features :

Description

The WEBS-5481-S, a downward/slim version of WEBS-5400 series design concept, builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dualchannel DDR3L memory. Support two Gigabit Ethernet ports and two Mini-PCIe sockets. The WEBS-5481-S is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.

Specification

System
WEBS-5481-S
M/B
PEB-5731-W
Form Factor
Specific Form Factor 170 x 135 mm
System
CPU
Intel® 4th Generation ULT Core™ i Processor
Chipset
Intel® SoC
BIOS
AMI UEFI
Memory
DDR3L/16GB
Graphic Controller
HD Graphics 4000 Family
Audio Codec
ALC892
Super I/O
EC ITE IT8528 + Fintek F81216
Storage
1x CFEX, 1x 2.5” SATA HDD/SSD
1x mSATA
External I/O
Serial
1x RS-232
1x RS-232/422/485
USB
2x USB2.0
2x USB3.0
Display
DVI-D, DP, HDMI
Ethernet
Intel® I218LM+I210AT
PS/2
N/A
Audio
Line-out, Mic-in
D I/O
8-bit Digital I/O
Expansion
1x Full-size Mini-PCIe 1x Half-size Mini-PCIe
2x Optinal Graphic Module
PWR
System
DC 12V ~ 24V
Environment
OP Temp.
-20°C ~ 55°C
Storage Temp.
-40°C ~ 80°C
Humidity
95%@40°C, non-condensing
Vibration
5Grms/10-500Hz
Shock
50G, 11 msec
Mechanical
Dimension(WxDxH)
235 x 160 x 50 mm
Weight
2 Kg
Ordering Guide
AS5-3366
(R).ATO.WEBS-5481.Haswell ULT. Fanless System

Support (Documents & Downloads)

WEBS-5481-S | Catalog   215S   March 30, 2021Download

 1.42 MB 1000 Downloads

BIOS_PEB-5731-W_R100E4.zip | BIOS   R1.00.E4  NJune 8, 2021Download

  1.  Move item Serial Port RS485 Mode to OEM Page.
  2. Support SuperI/O F81216AD RS-485 mode control.
  3. Rename item “Serial Port RS485 Mode” to “RS-485 Auto Flow Control”.
10.09 MB 615 Downloads


BIOS_PEB-5731-W_R100E3.zip | BIOS   R1.00.E3  April 20, 2015Downl/wp-content/uploads/2022/03/PEB-5731-W_R100E3-1.zipoad

BIOS of WEBS-5481

 4.88 MB  264 Downloads

Driver_WEBS-5481-S_PEDA-S1530_Win7_Audio.zip | Driver   20141014   October 14, 2014Download
ZU200 3G/GPS Driver for Windows 7
198.78 MB 502 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_ZUxxx-series-USB-driver_3.50.0.5.zip | Driver   20141014   October 14, 2014 Download
ZU200 3G/GPS Driver for Windows 7
585.60 MB  518 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_Wi-Fi-Module-WPER-116Nv2.zip | Driver   20141014   October 14, 2014Download
WPER-116GN WiFi Driver for Windows 7
32.75 MB  518 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_USB 3.0.zip | Driver   20160331   October 14, 2014 Download
USB 3.0 Driver for Windows 7
1.69 MB KB  547  Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_ME9.5_5M_9.5.10.1580.zip | Driver   20160331   October 14, 2014 Download
iAMT Driver for Windows 7
66.84 MB 542 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_Graphic.zip | Driver   20141014   October 14, 2014Download
Graphic Driver for Windows 7
237.79 MB 535 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_Inf.zip | Driver   20141014   October 14, 2014Download
Chipset Driver for Windows 7
 5.24 MB  525 Downloads
Driver_WEBS-5481-S_PEDA-S1530_Win7_Ethernet.zip | Driver   20141014   October 14, 2014Download
Ethernet Driver for Windows 7
54.48 MB  524 Downloads

Manual_WEBS-5481-S_V1.0.pdf | Manual   V1.0   May 18, 2015Download

Manual of WEBS-5481-S

 1.21 MB  247 Downloads

Certification_WEBS-5481-S_B0271_FCC.pdf | Certification   20150429   April 29, 2015 Download

WEBS-5481-S_FCC Certification

105.19 KB  251 Downloads


Certification_WEBS-5481-S_A-0303_CE.pdf | Certification   20150429   April 29, 2015Download

WEBS-5481-S_CE Certification

105.08 KB  250 Downloads

Drawing_WEBS-5481-S | Drawing   20150430   April 30, 2015Download

Drawing of WEBS-5481

149.44 KB 265 Downloads
