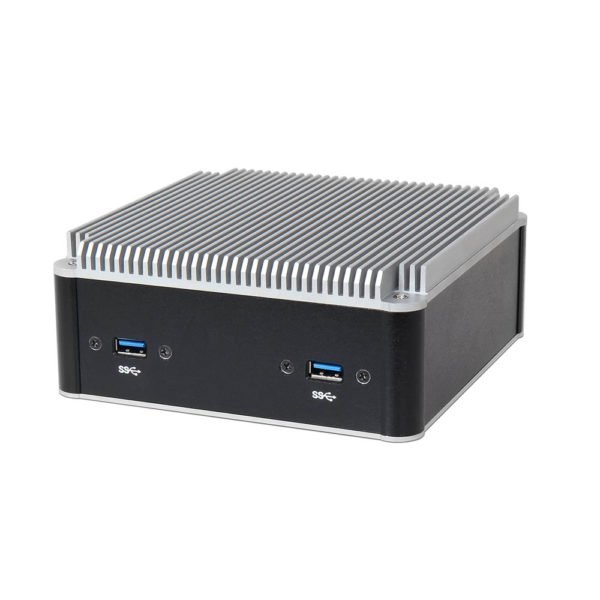

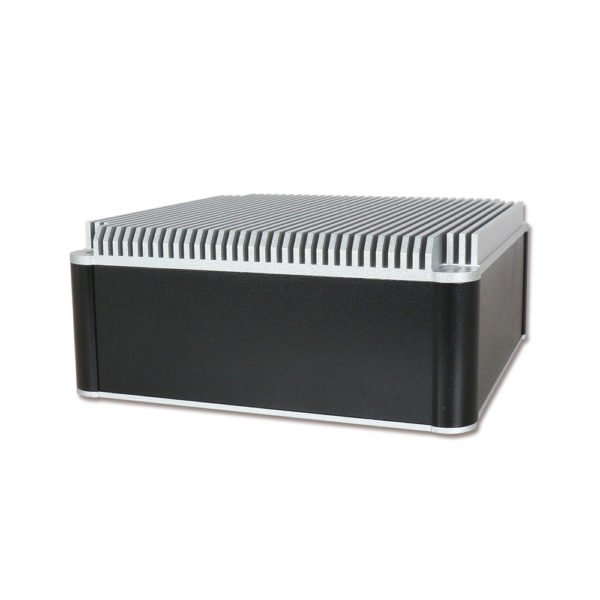

WEBS-21G0
Embedded Compact Fan-less System with Intel® Whiskey Lake-U Core™ i Soc based NANO-ITX Board
Features :
- Supports Intel® Whiskey Lake-U series processor
- 1x DDR4 2400 non-ECC SO-DIMM, Up to 32GB
- 1x M.2 key M 2280 for storage
- Supports Dual mini DP ports
- 1x Antenna hole for WiFi module
- IP 40 Rating
Description
The WEBS-21G0 Fanless Embedded computer builds on Intel® Whiskey Lake-U Core™ i SoC and takes advantages of Intel® Core™ mobile technologies that can support superior processing power and capability. Support two Gigabit Ethernet ports, two mini DP ports and M.2 2280 key M for storage. The WEBS-21G0 is an ideal platform which with high performance for fan-less applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.
Specification
| System | |
|---|---|
|
M/B |
NANO-6051
|
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Intel® 8th Generation Whiskey lake-U series Processor Core i5/i3 processor (15W TDP) Intel
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR4 SO-Dimms/Up to 32GB
|
|
Graphic Controller |
Intel® UHD Graphics 620/610
|
|
Super I/O |
EC
|
|
Storage |
1x M.2 Key M 2280 for storage
|

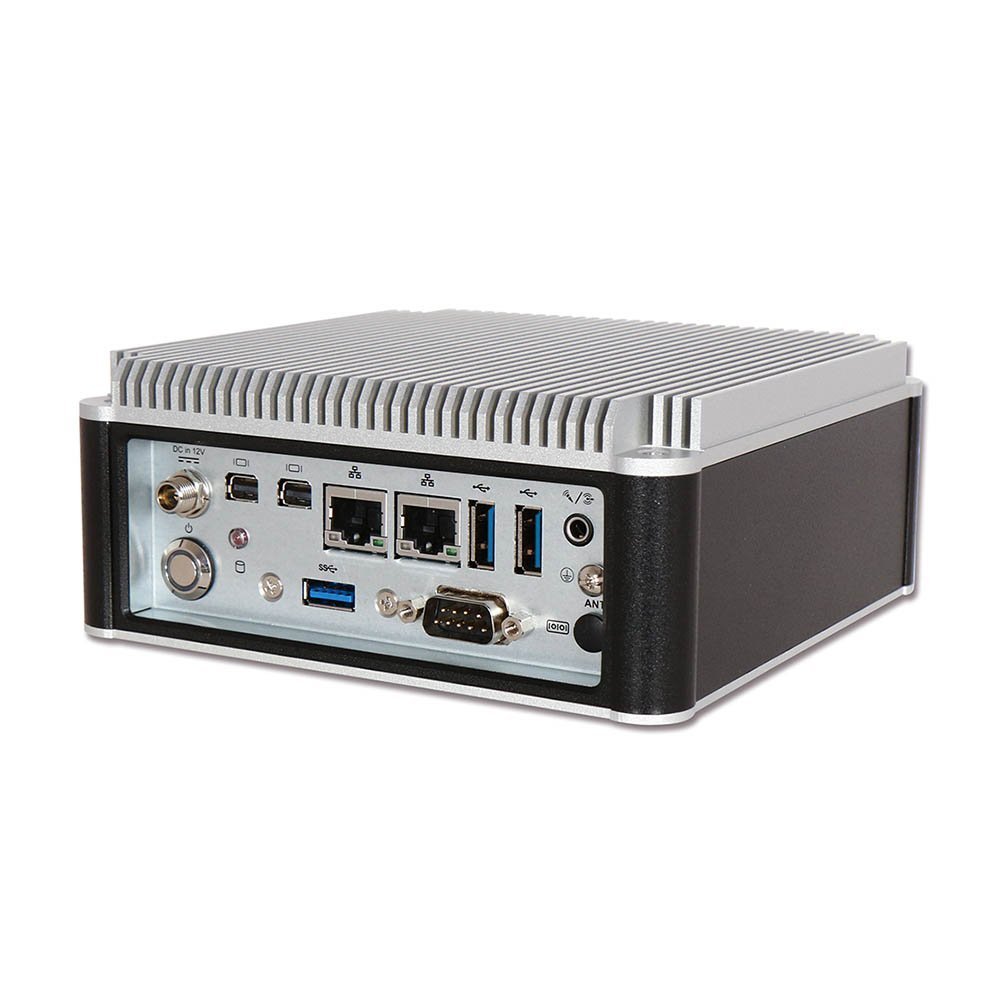

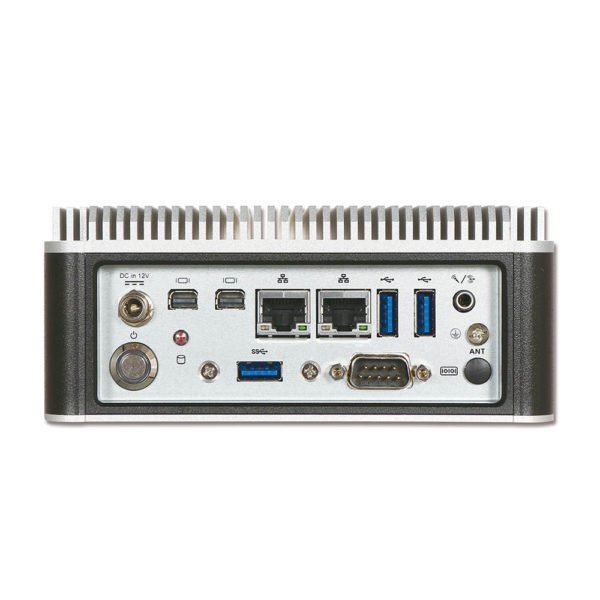

| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485 (BIOS Configurable)
|
|
USB |
3x USB 3.0 (Rear I/O)
|
|
Display |
2x mini DP
|
|
Ethernet |
Intel® I219LM + I210AT
|
|
PS/2 |
Combo Jack Line-out, Mic-in
|
|
D I/O |
N/A
|
|
Expansion |
1x M.2 Key E 2230 for wireless module
|
| PWR | |
|---|---|
|
System |
DC 12V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 55°C
|
|
Storage Temp. |
-40°C~85°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
3Grms/10-500Hz IEC 60068-2-6
|
|
Shock |
50G, 11 msec IEC 60068-2-27
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 62.6 mm
|
|
Weight |
2 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3587 |
(R).ATO.WEBS-21G0.NANO-ITX System.
|
