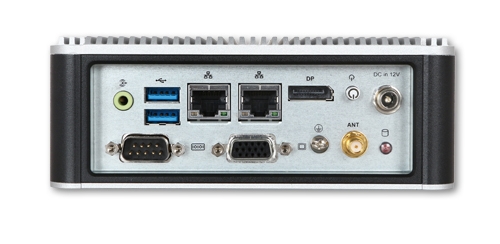

WEBS-21B0
Embedded Compact Fan-less System with Intel® Atom® E3900 Series based NANO-ITX Board
Features :
- Fan-less and cable-less & small and exquisite design
- Single 204-pin SODIMM supports DDR3L up to 8GB
- Intel® Braswell SoC platform
- 1x 2.5” SATA HDD/SSD, 1x mSATA, 1x SD card
- 1x M.2 socket (Type E)
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Ratin
Description
The Rugged Embedded fanless WEBS-21B0 builds on Intel® Braswell SoC and takes advantages of Intel® Pentium® /Celeron® Dual/Quad Core™ N3000 Series processor technologies, especially its vastly superior Quad-Core™ processing power and capability. The costeffective CPU with high performance is good to use to build up a compact system, the WEBS- 21B0, it supports M.2 socket (Type E) targeting IOT application.
Specification
| System | |
|---|---|
|
M/B |
NANO-6061 |
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Intel® Pentium®/Celeron® N3000 Series Processor
|
|
Chipset |
Intel® Braswell SoC
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® Gen 8 Graphics
|
|
Audio Codec |
ALC892
|
|
Super I/O |
EC ITE IT8528
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x mSATA, 1x SD
|
| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485
|
|
USB |
2x USB3.0
|
|
Display |
VGA, DP
|
|
Ethernet |
Intel® I211AT x 2
|
|
PS/2 |
N/A
|
|
Audio |
Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x M.2 (Type E)
|
| PWR | |
|---|---|
|
System |
DC 12V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 55°C
|
|
Storage Temp. |
-20°C ~ 85°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 53 mm
|
|
Weight |
1.8 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3451 |
(R).ATO.WEBS-21B0.NANO-ITX system
|
